Запчасти Bobcat S-Series INJECTION PUMP (Adjustment Bolts) POWER UNIT

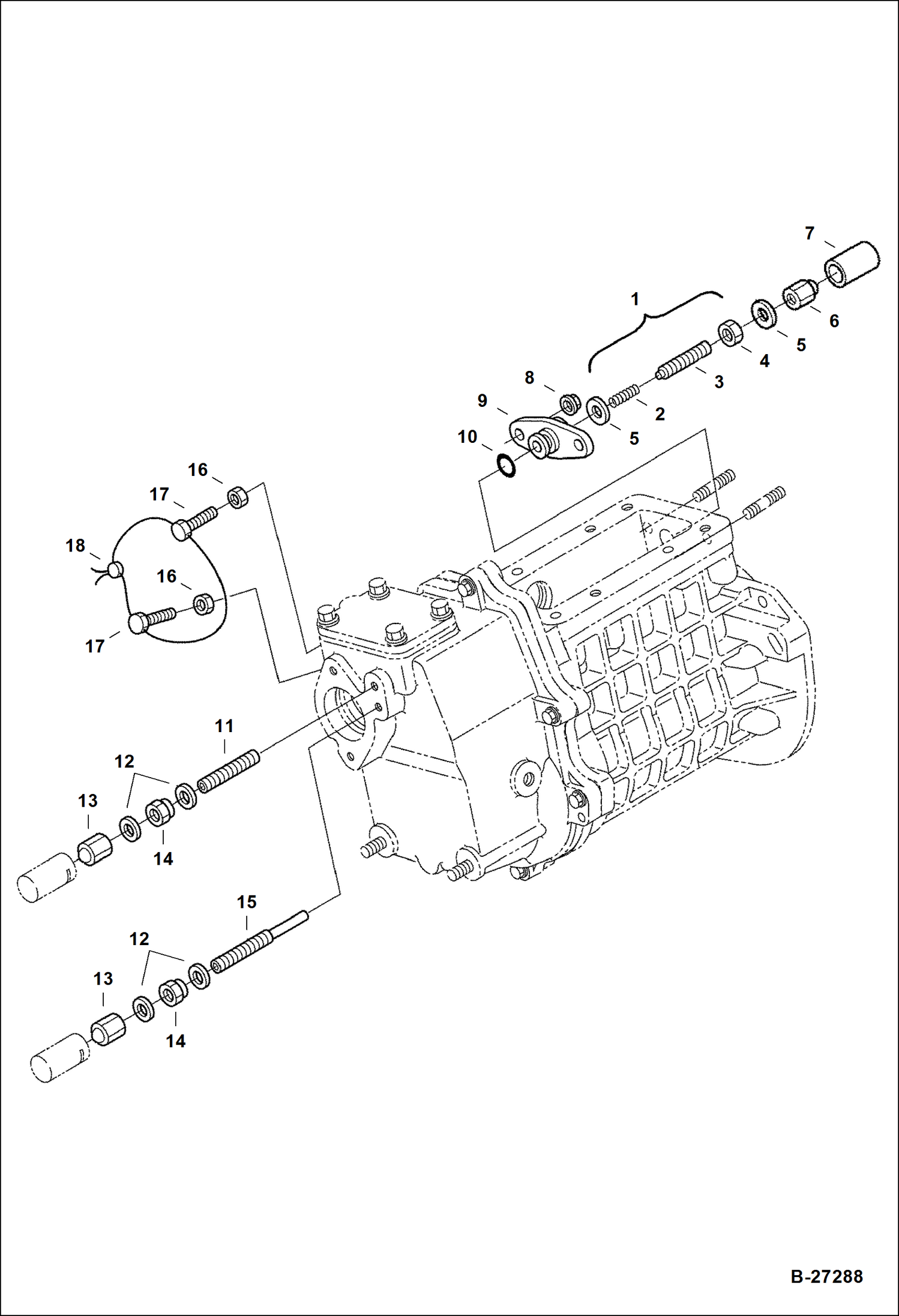

Схема запчастей Bobcat S-Series - INJECTION PUMP (Adjustment Bolts) POWER UNIT

Артикул

Название

Примечание

Количество

1

7000730

BOLT, ADJUSMENT ASSY Ref. 2-4

1

7012050

BOLT, ADJUSTMENT ASSY Ref. 2-4

2

SPRING NLA - Order Ref. 1

3

BOLT, ADJUSTING NLA - Order Ref. 1

4

3974425

NUT

5

3974095

MET-GASK

6

3974978

NUT

7

3974979

CAP

8

6670533

NUT

9

7000621

BRACKET, BOLT ADJUSTING

10

7000731

O-RING

11

7000589

BOLT, ADJUSTING

12

3974972

GASKET

13

6655223

NUT Was 6657470 - B

14

6680272

NUT

15

7000620

BOLT, ADJUSTING

16

1DM6

NUT Was 6680272 - D

17

BOLT NLA

18

WIRE, SECURITY NLA

Выбрано товаров: 19
