Запчасти Bobcat S-Series ENGINE SPEED CONTROL (Selectable Joystick Control) POWER UNIT

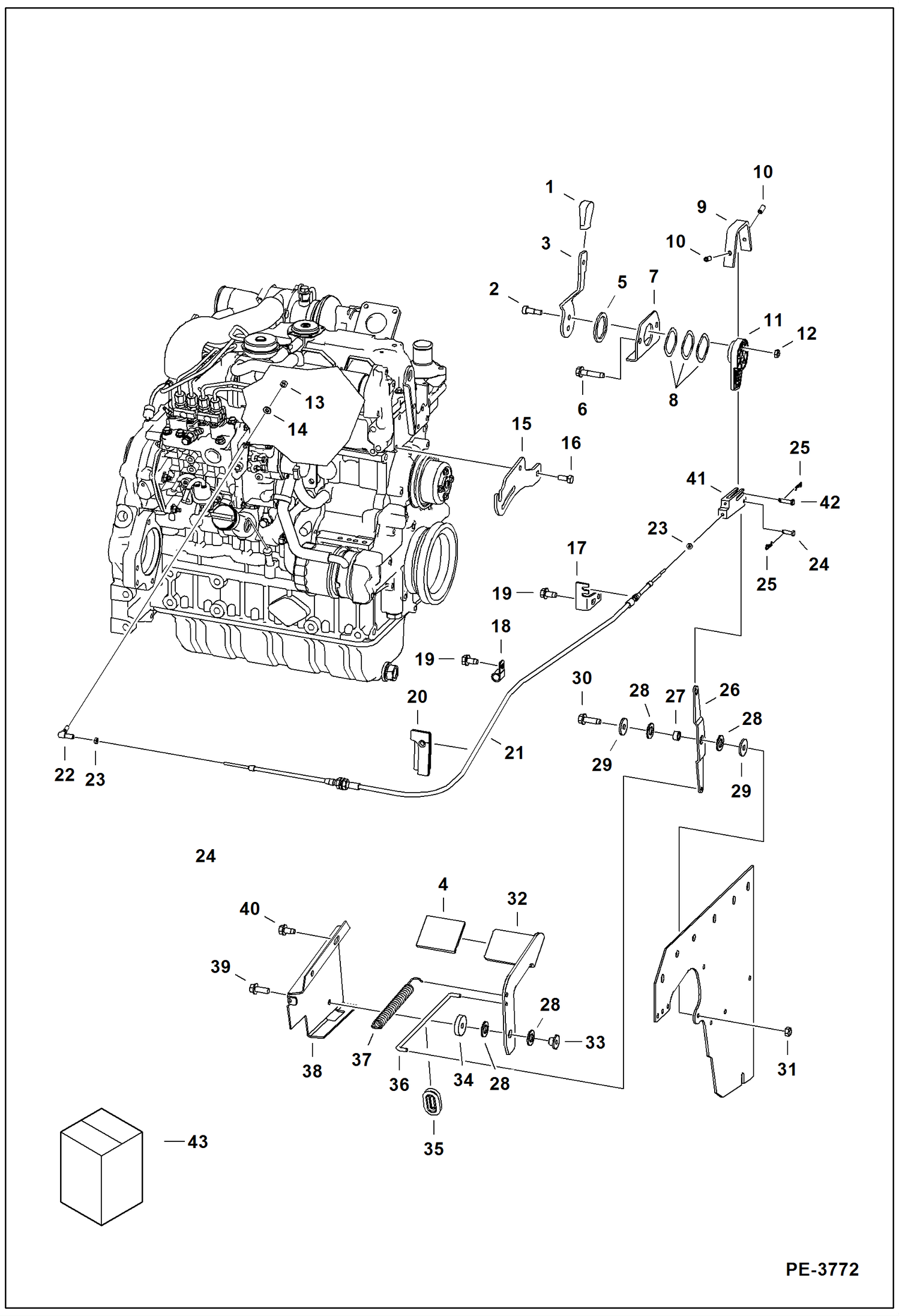

Схема запчастей Bobcat S-Series - ENGINE SPEED CONTROL (Selectable Joystick Control) POWER UNIT

Артикул

Название

Примечание

Количество

1

6564452

GRIP

2

38C610

BOLT

3

6730270

LEVER

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6567962

WASHER friction

6

84G3728

BOLT

7

6576262

MOUNT throttle

8

6630945

WASHER wave spring

9

6576261

COVER throttle

10

6706572

SET SCREW

11

6734416

LEVER throttle

12

85D5

NUT 5

13

62D4

NUT

14

25E11

WASHER

15

7139335

BRACKET, ALT

16

5CM1020

SCREW

17

6732450

BRACKET cable

18

30H31

CLAMP 10

19

84G3712

BOLT 5

20

7157716

GROMMET

21

6692662

CABLE, THROTTLE

22

6644965

BALL JOINT

23

14D10

NUT

24

2F4051

PIN

25

6513495

COTTER PIN

26

6734417

LEVER

27

6564343

SPACER

28

6700170

WASHER

29

619021

WASHER, 5

30

84G3720

BOLT

31

85D6

NUT, 5

32

6735680

FOOT PEDAL

33

6559479

NUT

34

6732322

SPACER

35

6577961

GROMMET

36

6731900

ROD

37

6700743

SPRING

38

6732323

BRACKET

39

45C616

BOLT

40

84G3712

BOLT 5

41

6734503

CLEVIS

42

1304227

PIN

Выбрано товаров: 42
