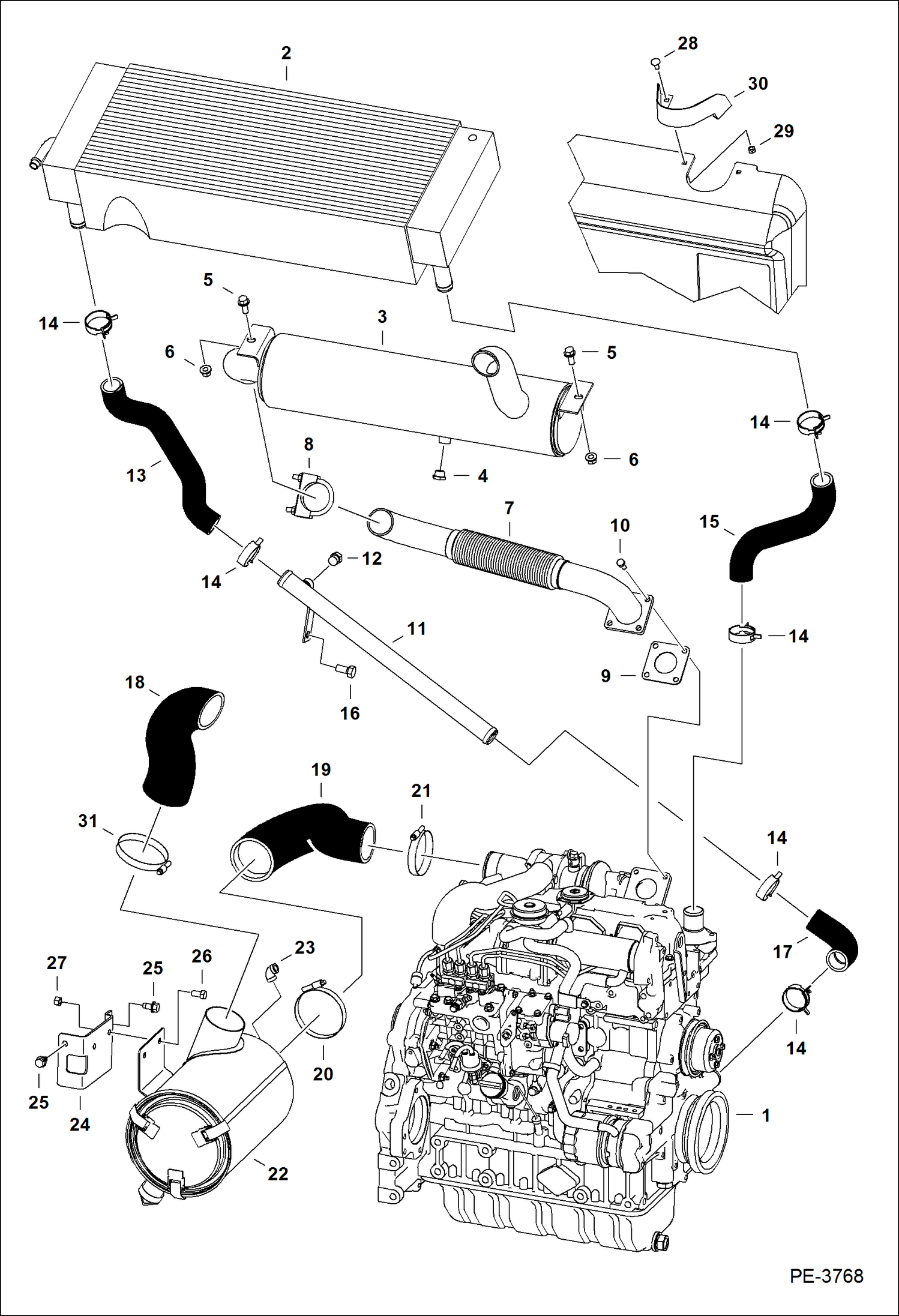

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Air Cleaner, Muffler) POWER UNIT

1

ENGINE, V2607-DI-T3-E3B-BC-2 See Illustration ENGINE & GASKET KITS/ NA2410

2

7152356

EXCHANGER, WATER RADIATOR

3

7130724

MUFFLER, EXHAUST

4

6661062

PLUG brass - 0.38''

5

35C616

BOLT 5

6

83D6

NUT 5

7

7130725

TUBE, EXHAUST

8

7101708

CLAMP

9

6727753

GASKET

10

6701123

SCREW

11

6730999

TUBE ASSY

12

40K6

PLUG

13

7132593

HOSE

14

5HM42

HOSECLAMP

15

7132594

HOSE

16

6719827

BOLT

17

7100024

HOSE

18

7149976

HOSE, AIR FORMED

19

7149975

HOSE, AIR FORMED

20

42HC325

CLAMP

21

42HC375

CLAMP

22

7133215

FILTER ASSY, AIR See Illustration AIR CLEANER/ PE3523

23

24F1

ELBOW

24

7154006

BRACKET, ANGLE

25

84G3712

BOLT 5

26

17C612

BOLT 5

27

95D6

NUT

28

37C512

BOLT

29

61D5

NUT

30

6714624

SHIELD Europe only

31

42H52

CLAMP
