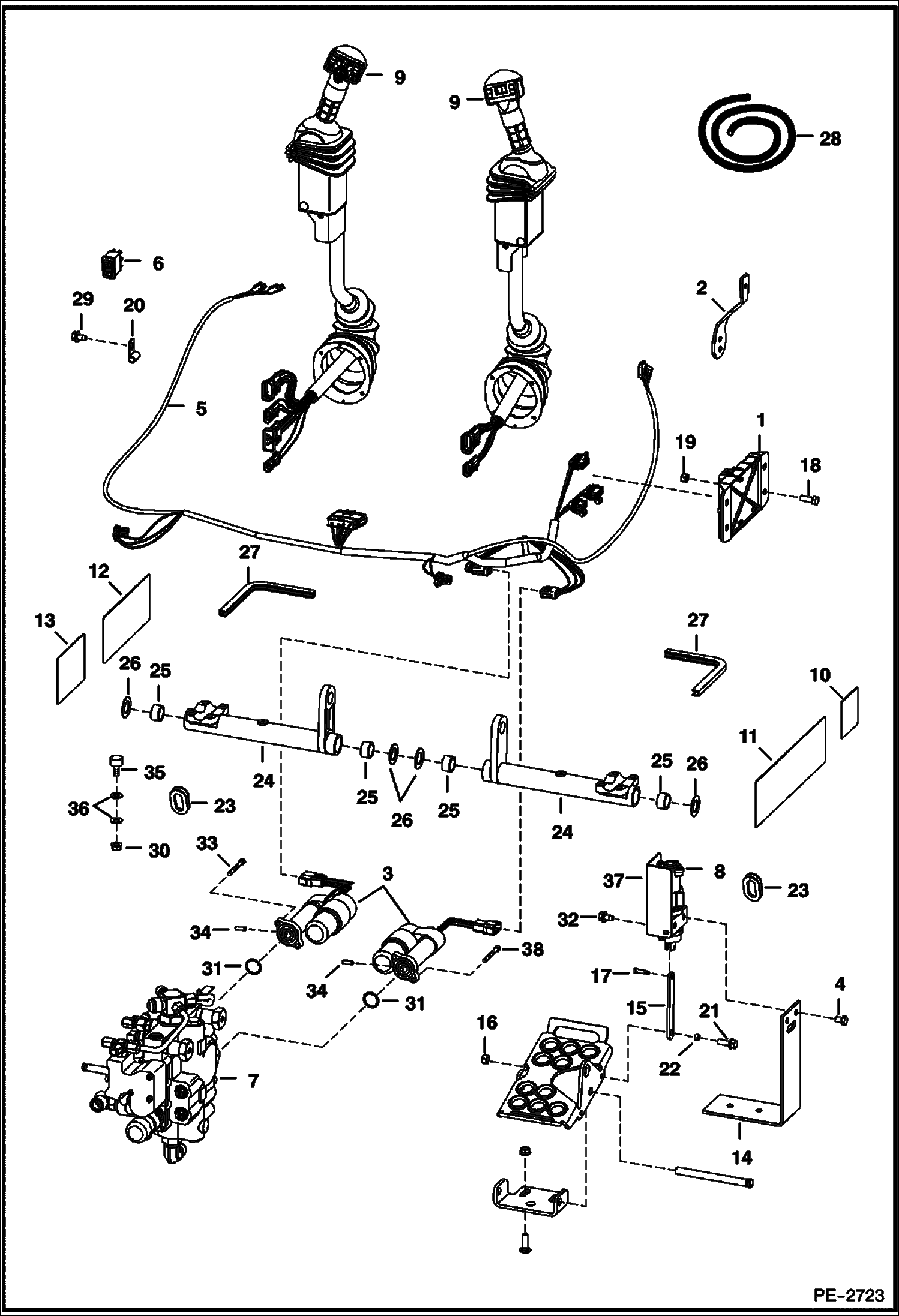

Запчасти Bobcat S-Series CONTROLS ELECTRICAL (ACS) ELECTRICAL SYSTEM

1

6680410

CONTROLLER plastic - W/ 3-connector plug

2

6717393

LEVER throttle

3

7101672

ACTUATOR W/Ref. 31

4

17C612

BOLT 5

5

7159447

HARNESS ACS

5

7138770

HARNESS AHC - Europe only

6

6665314

PLUG AHC

6

6665314

PLUG ACS

6

6676537

SWITCH ACS

7

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2378 - control

8

6684912

SENSOR, FOOT RH See Illustration CONTROLS ELECTRICAL/ PE1553

8

6676029

SOLENOID, LOCK SPOOL

8

6684911

SENSOR, FOOT LH See Illustration CONTROLS ELECTRICAL/ PE1553

8

6676029

SOLENOID, LOCK SPOOL

9

6684913

LEVER tilt - RH - AHC

9

6684914

LEVER lift - LH - AHC

9

6684915

LEVER, ACS RH See Illustration CONTROLS ELECTRICAL/ PE1365 - tilt - RH - ACS

9

6684916

LEVER, ACS LH See Illustration CONTROLS ELECTRICAL/ PE1365 - lift - LH - ACS

10

6718706

DECAL, WARNING raising cab

11

6728539

DECAL

11

6734646

DECAL, WARNING selectable joystick controls

12

6727926

DECAL, OPERATION hand & foot controls

13

6727926

DECAL, OPERATION hand & foot controls

14

7126869

BRACKET

15

6726681

LINK

16

95D5

NUT

17

6727496

PIN

18

17C616

BOLT 5

19

95D6

NUT

20

30H62

CLIP

21

17C514

BOLT

22

6729467

SPACER

23

6714726

GROMMET

24

BELLCRANK See Illustration HAND CONTROLS/ NA6667

25

BEARING See Illustration HAND CONTROLS/ NA6667

26

6716916

WASHER plastic

27

MOULDING NLA - 10.5'' (266,7 mm) long - Order Ref. 28

28

6654139

MOULDING bulk - sold per foot

29

84G3710

SCREW

30

98D6

NUT See Illustration HAND CONTROLS/ NA6667

31

58K120

O-RING Use W/Ref. 3 - Was 6686220 - B,D

32

43C408

BOLT

33

69G436

BOLT

34

7108236

PIN

35

6673789

BEARING See Illustration HAND CONTROLS/ NA6667

36

7100699

WASHER See Illustration HAND CONTROLS/ NA6667

37

6680478

SHIELD RH

37

6680479

SHIELD LH

38

29G416

BOLT
