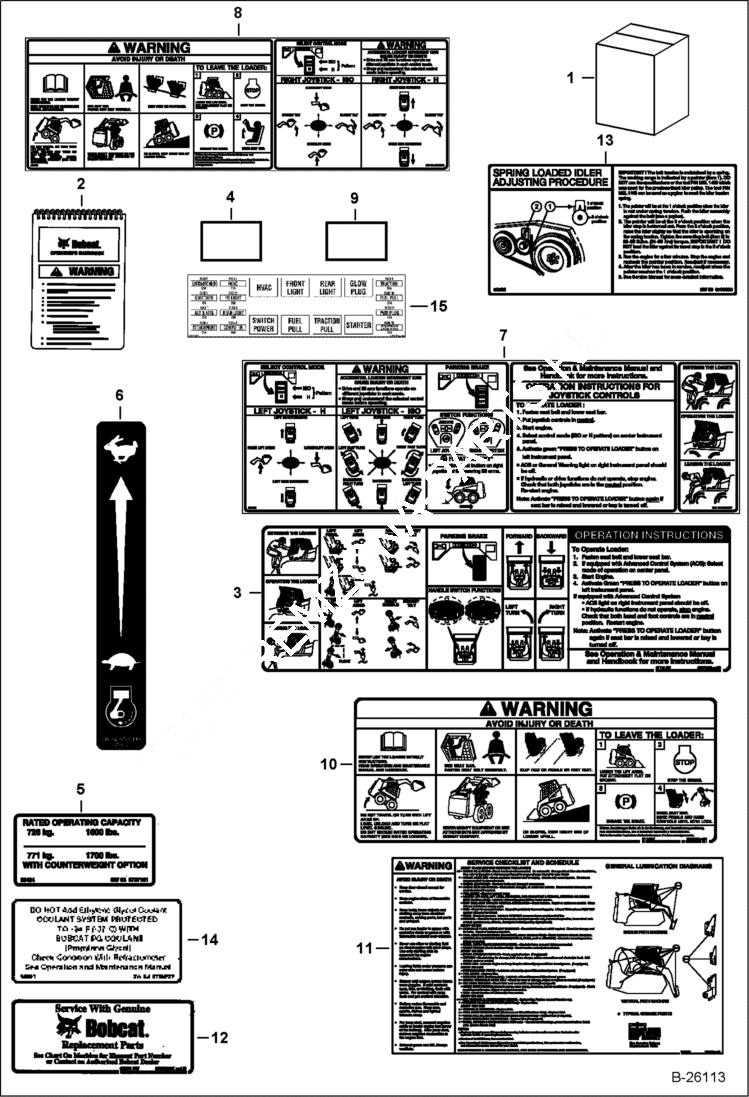

Запчасти Bobcat S-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6904995

KIT, DECAL

1

7120279AR

KIT, DECAL

1

7120279BR

KIT, DECAL

1

7120279JP

KIT, DECAL

1

7163320AR

KIT, DECAL

1

7163320BR

KIT, DECAL

1

7163320JP

KIT, DECAL

1

KIT, TRANSLATION S160 SPANISH NLA - Order 6904128 OM, 6902600 OHB & 6904995 decal kit - Was 7120278AR - A

1

KIT, TRANSLATION S160 PORTUGUESE NLA - Order 6904128 OM, 6902600 OHB & 6904995 decal kit - Was 7120278BR - A

1

7152171AR

KIT, TRANSLATION

1

KIT, TRANSLATION NLA - ORDER APPROPRIATE OM, OHB, AND DECAL KIT - Was 7152171BR - A

2

6902600

HANDBOOK, OPERATOR'S W/wire rope - not in kit - Was 6718719 - B,D

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

2

17C512

BOLT 5

2

61D5

NUT

2

84G3112

BOLT 5

3

6727926

DECAL, OPERATION hand & foot controls - not in kit

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

7184777

DECAL, CAPACITY LIFT Was 6737151 - A

6

6735140

DECAL, THROTTLE

7

6734647

DECAL, OPERATION selectable joystick controls - not in kit

8

6734646

DECAL, WARNING selectable joystick controls - not in kit

9

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

10

6728539

DECAL

11

6734534

DECAL, SERVICE service checklist & schedule - Was 7124877 - A

12

6565200

DECAL, FILTER not in kit

13

6709030

DECAL belt tension - spring loaded idler

14

6708929

DECAL, COOLANT propylene glycol

15

7117407

DECAL, FUSE inside fuse cover - 51 x 178 mm (2 x 7'')

15

7159779

DECAL fuse relay - 51 x 178 mm (2 x 7'')
