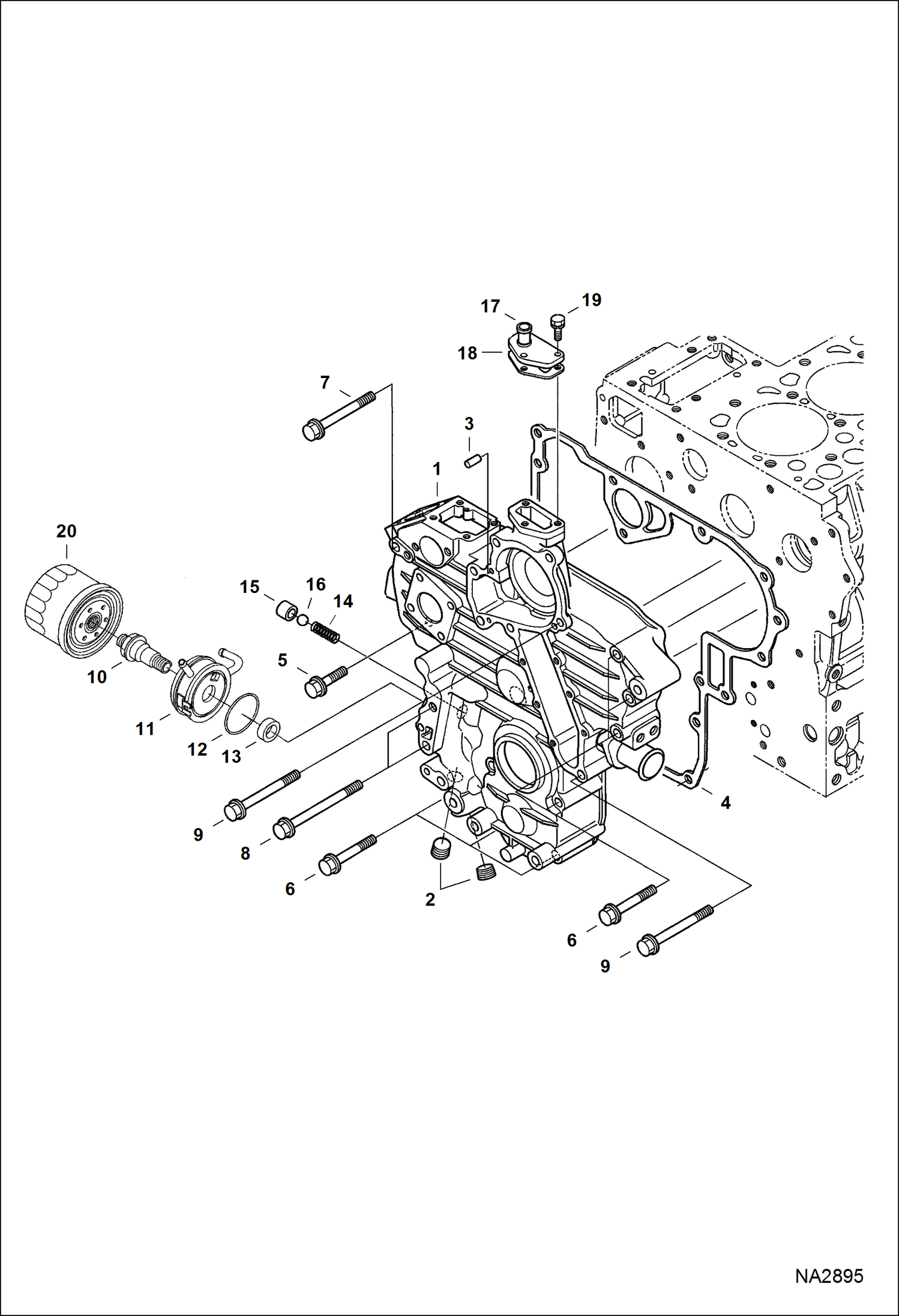

Запчасти Bobcat S-Series GEARCASE (Kubota - V2003-M-DI-TE2B-BC-3F - Tier II) (S/N AHWA11001 & Above) POWER UNIT

1

7012337

HOUSING, GEAR W/Ref. 2

2

6672360

PLUG

3

3974395

PIN

4

7010599

GASKET, GEARCASE

5

6680706

BOLT Was 1CM835 - B

6

6692375

BOLT Was 1CM870 - B

7

6680686

BOLT Was 6653807 - B

8

6692376

BOLT Was 6684772 - B

9

6692377

BOLT Was 6653808 - B

10

CONNECTOR NLA - Order 7020646 connector and 7020866 collar - Was 6675681 - A

11

6690900

OIL COOLER

12

6698244

ORING

13

6685637

COLLAR

14

6652652

SPRING

15

3974893

SEAT

16

10J13

BALL

17

3974894

FLANGE

18

6666803

GASKET

19

1CM620

BOLT Was 4CM620 - A

20

6675517

FILTER, OIL ENG 12
