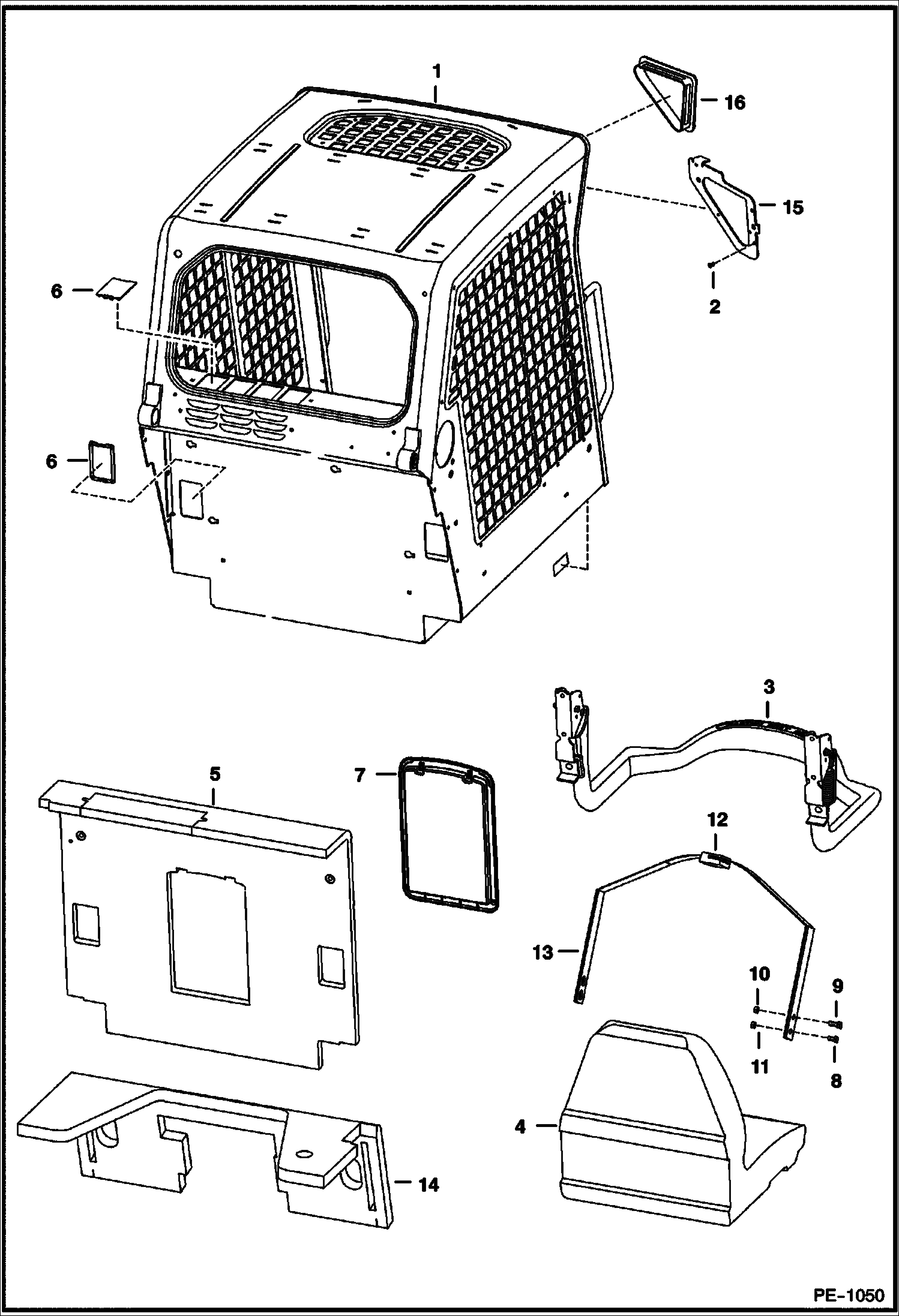

Запчасти Bobcat S-Series OPERATOR CAB MAIN FRAME

1

OPERATOR CAB See Illustration OPERATOR CAB/ PE2862 Does not include cab decals

2

6675033

INSERT

3

SEAT BAR See Illustration SEAT & SEAT BAR/ PE2950

4

SEAT See Illustration SEAT/ B26226 See Illustration SEAT/ B25136

5

6719504

INSULATION W/Ref. 7

6

6718101

COVER

7

CONTAINER NLA - manuals - Order 6725303 container & 6725301 cover - Was 6719503 - A

7

6675524

CLIP

7

6725301

OP MANUAL COVER

7

6725303

OP MANUAL PAN

8

17C612

BOLT 5

9

17C716

BOLT

10

85D7

NUT

11

85D6

NUT, 5

12

6675074

SEAT BELT W/O spring plates

13

6725373

SPRING PLATE

14

7139184

INSULATION steering panel - Was 6718489 - A

15

PLATE NSS - R.H. - weld on

15

PLATE NSS - L.H. - weld on

16

6674403

COVER no lights
