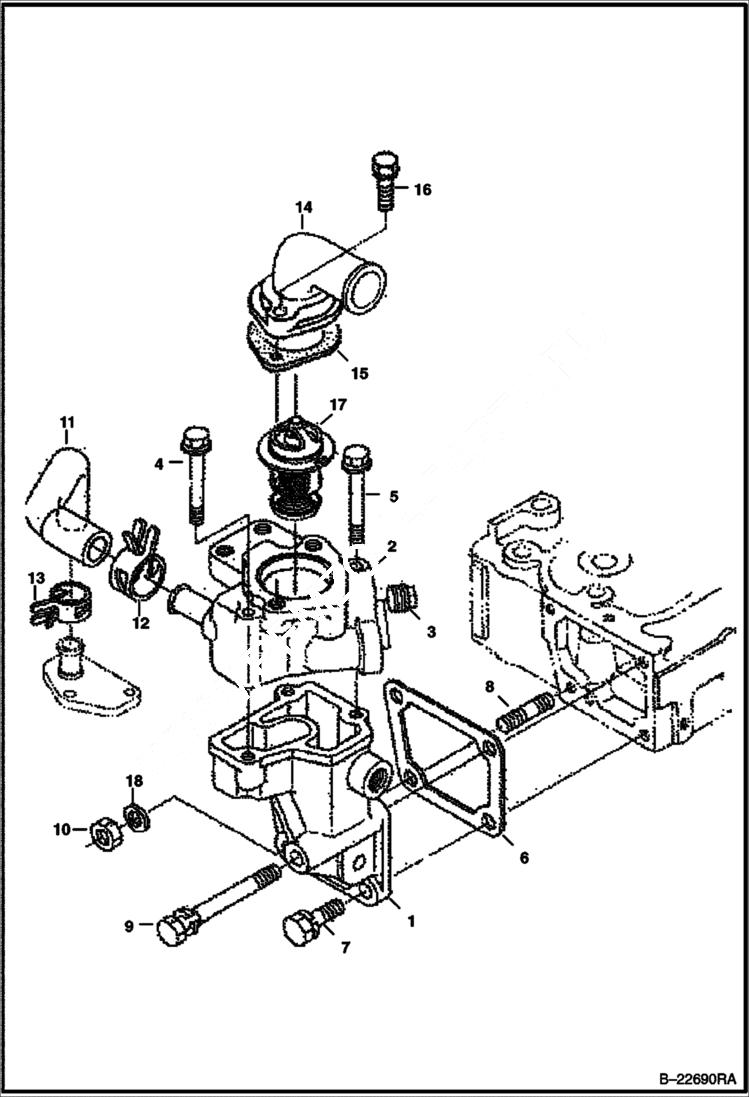

Запчасти Bobcat S-Series WATER FLANGE & THERMOSTAT (Kubota - V2203MDI - Tier II) POWER UNIT

1

FLANGE NLA - Order 6684854 - Was 6684855 - A

2

FLANGE NLA - Order 6684854 - Was 6684856 - A

3

6684857

PLUG

4

6683159

BOLT

5

6685104

BOLT

6

6666802

GASKET

7

6657415

BOLT

8

6652670

STUD

9

1CM875

BOLT

10

6652792

NUT

11

6684862

PIPE

12

6675618

CLAMP

13

6684889

CLAMP

14

6651489

COVER

15

6684863

GASKET

16

1CM835

BOLT

17

6685520

THERMOSTAT

18

6667422

WASHER spring
