Запчасти Bobcat S-Series ENGINE STOP LEVER POWER UNIT

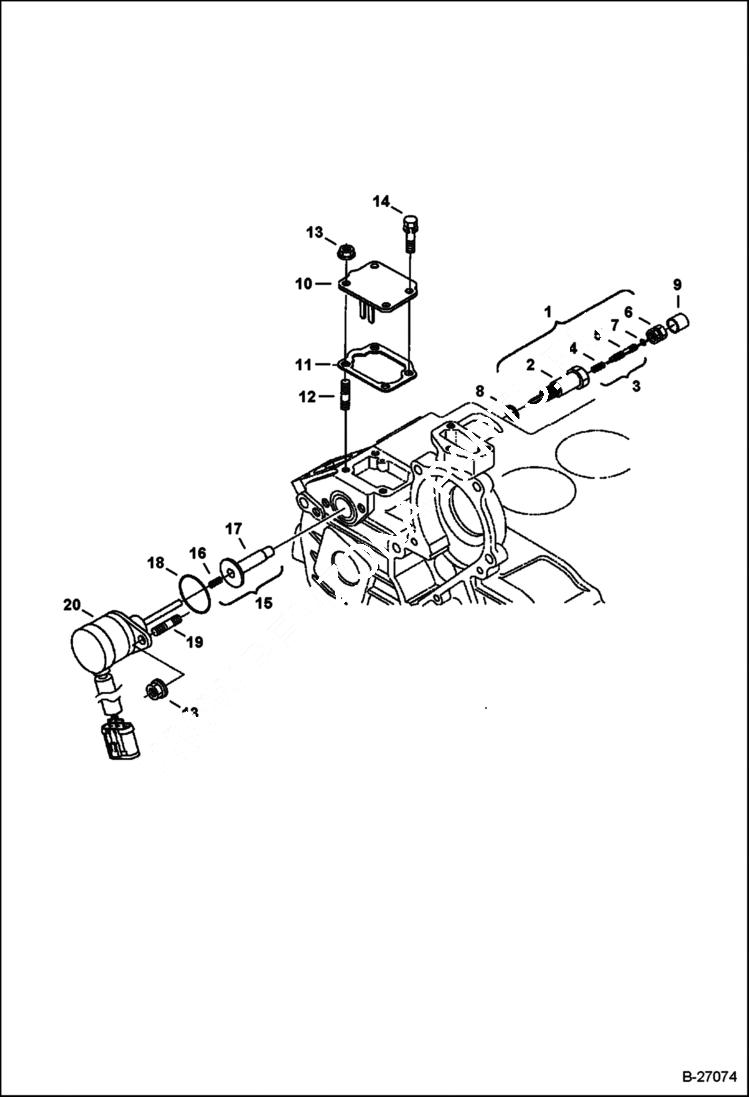

Схема запчастей Bobcat S-Series - ENGINE STOP LEVER POWER UNIT

Артикул

Название

Примечание

Количество

1

6686334

IDLE APPARATUS Ref. 2-6

2

APPARATUS, IDLE NSS - Order Ref. 1

3

6685513

BOLT, ADJ. assy - Ref. 4 & 5

4

SPRING NSS - Order Ref. 3

5

BOLT, ADJUSTING NSS - Order Ref. 3

6

6684817

NUT spring

7

6684891

SEAL

8

6684818

SEAL

9

6684819

CAP

10

6698116

COVER boost housing

11

6684841

GASKET boost housing

12

6683087

STUD

13

6670533

NUT

14

1CM616

SCREW Was 4CM616 - A

15

6684825

GUIDE, SOLENOID

16

SPRING NSS - Order Ref. 15

17

PLUNGER NSS - Order Ref. 15

18

6685465

O-RING

19

6652764

STUD

20

6691498

SOLENOID, SHUTOFF FUEL 240 mm (9.45'') lead

Выбрано товаров: 20
