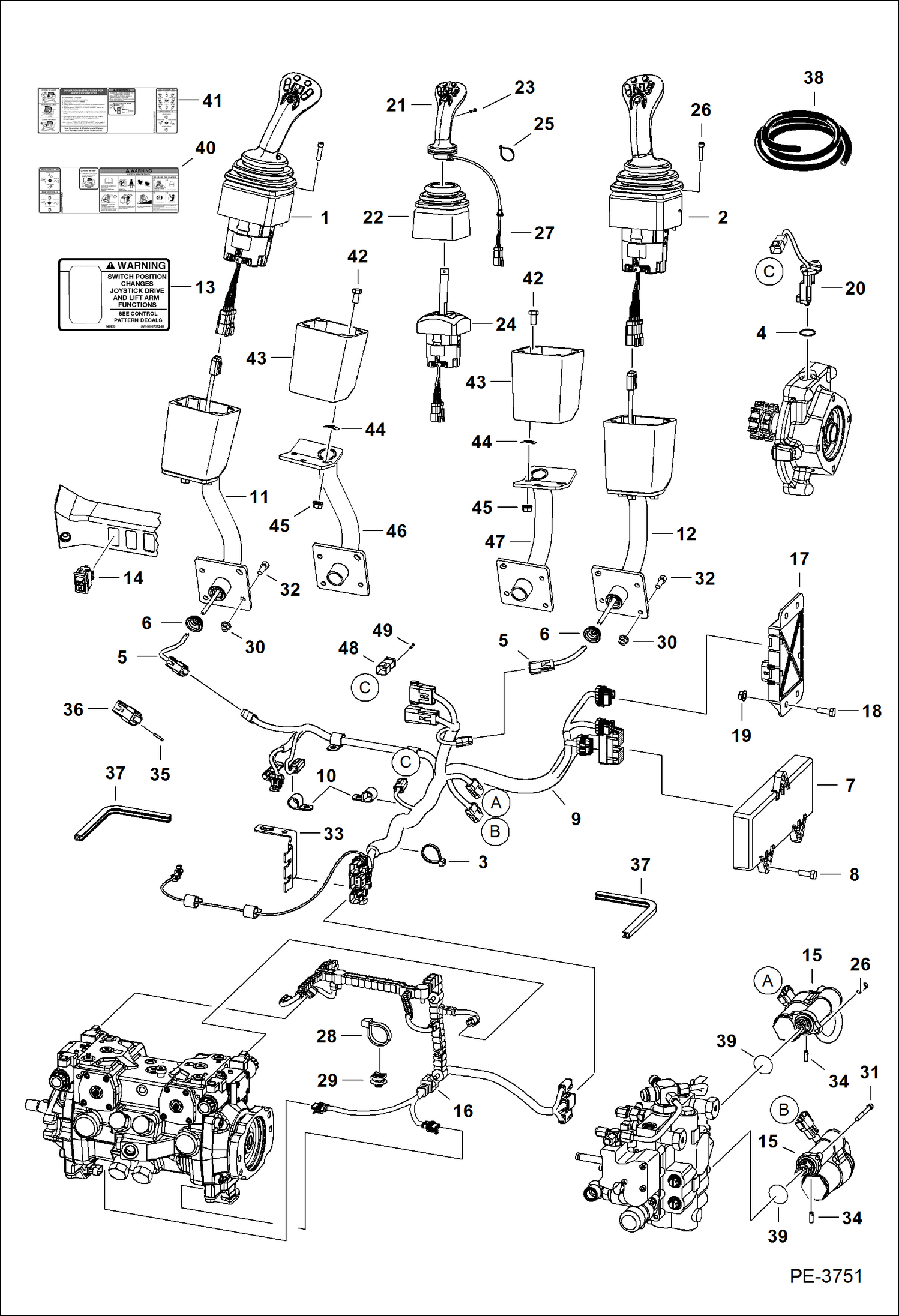

Запчасти Bobcat S-Series CONTROLS ELECTRICAL (Selectable Joystick Controls) (S/N A3L119999 & Below) ELECTRICAL SYSTEM

1

JOYSTICK, LH NLA - Order 6697904 joystick & 7152616 harness - Was 6689920 - A

2

JOYSTICK, RH NLA - Order 6697905 joystick & 7152616 harness - Was 6689921 - A

3

6624289

STRAP, TIE

4

25K20100

O RING 10

5

7112828

HARNESS

6

6684294

GROMMET

7

6679485

CONTROLLER SJC drive - W/single 50-pin connector

8

43C616

BOLT

9

HARNESS See BTI419 - NLA - W/Speed sensor connectors - Was 7136044 - A

9

7136044

HARNESS W/O speed sensor connectors

10

30H42

CLAMP

11

HANDLE NLA - LH - Order Ref. 6 & 42-46 - A

12

HANDLE NLA - RH - Order Ref. 6, 42-45 & 47

13

6737248

DECAL, WARNING selectable joystick control

14

6683812

SWITCH H/ISO

15

7101672

ACTUATOR W/Ref. 39

16

7198706

HARNESS, PUMP Use W/hydrostatic pump Model R902095064 - W/ 3-pin oval connectors - Was 7139761 - A

16

7188448

HARNESS, PUMP Use W/hydrostatic pump Model R902136745 - W/ 3-pin triangle connectors - Was 7169309 - A

16

6664969

CONNECTOR 8-pin

16

6664185

CONNECTOR 2-pin

16

6687268

FEMALE CONNECTOR 3-pin oval - Use W/Ref. 16 (7198706 harness)

16

6664801

CONNECTOR 3-pin triangle - Use W/Ref. 16 (7188448 harness)

16

6691421

FEMALE CONNECTOR grey - 4-pin rectangular

16

6662248

4 PIN PLUG black

17

6680410

CONTROLLER plastic - W/ 3-connector plug

18

17C616

BOLT 5

19

97D6

NUT 10

20

SENSOR, SPEED TRAVEL See BTI419 - NLA - Was 6677181 - A

21

6689922

HANDLE LH - W/Ref. 27

21

6689923

HANDLE RH - W/Ref. 27

22

6689926

BOOT

23

6689927

BOLT

24

6689924

BASE, JOYSTICK RH

24

6689925

BASE, JOYSTICK LH

25

6691589

100 TIE packaged as 100 pieces

26

29G416

BOLT

27

HARNESS NSS - Order Ref. 21

28

6690690

STRAP, TIE

29

6690688

TREE MOUNT

30

89D5

NUT

31

69G436

BOLT

32

35C512

BOLT

33

7122359

BRACKET

34

7108236

PIN

35

6665370

PLUG

36

6662246

CONNECTOR

37

MOULDING NLA - 10.5'' (267 mm) long - Order Ref. 38

38

6654139

MOULDING bulk - sold per foot

39

58K120

O-RING Use W/Ref. 15 - Was 6686220 - B,D

40

7131518

DECAL

41

7131519

DECAL

42

17C612

BOLT 5

43

7124929

BASE

44

6684033

NUT retaining

45

97D6

NUT 10

46

7123817

MOUNT LH

47

7123816

MOUNT RH

48

6691419

CONNECTOR, ELECTRICAL

49

6665370

PLUG
