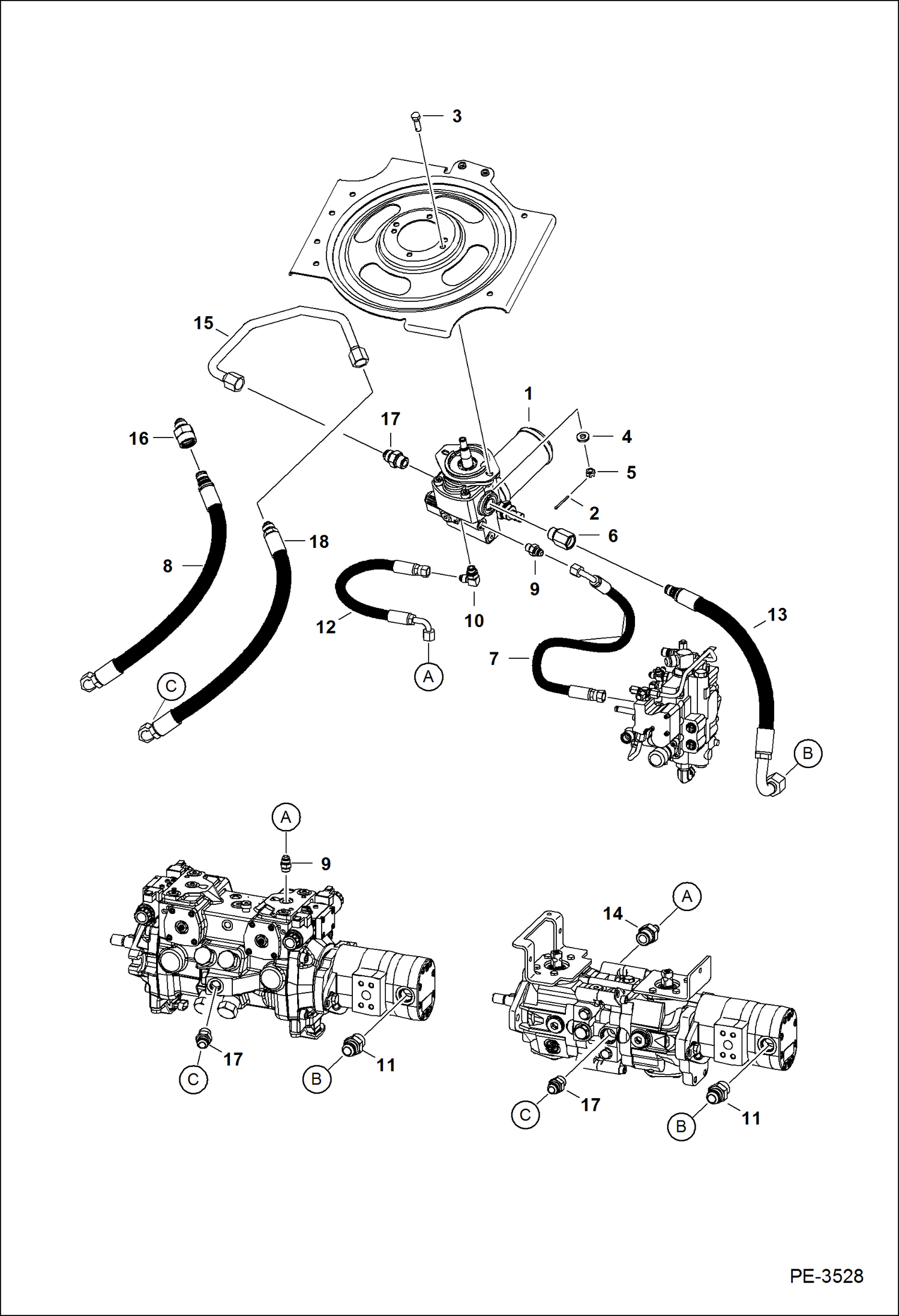

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Cooling Fan) (S/N A3L130001 & Above) HYDROSTATIC SYSTEM

1

7164320

MOTOR, HYD COOLING FAN See Illustration COOLING FAN MOTOR/ MS2514 - cast iron - Also Order (2) of Ref. 2 - Was 7132033 - D

2

1F316

PIN

3

7147826

BOLT, CROSS DRILLED

4

6557831

WASHER

5

3D6

NUT

6

15HB1010

ADAPTER, COUPLER quick lock - Also Order Ref. 13

6

79K10

O RING 10

7

7147678

HOSE, HYD

8

HOSE NLA - 27'' (685,0 mm) long - Order Ref. 18 - Was 6689690 - A

9

15KB0606

FITTING, HYD CONNECTOR

9

79K6

O RING 10

10

17KB0606

FITTING

10

79K6

O RING 10

11

15KB1212

FITTING, HYD CONNECTOR

11

79K12

O RING 10

12

7107179

HOSE

13

6691636

HOSE *SEE NOTES* Also Order Ref. 6

14

15KB0612

FITTING, HYD CONNECTOR

14

79K12

O RING 10

15

7149947

TUBELINE, HYD

16

ADAPTER, UNION NLA - Order Ref. 18 - Was 7154342 - A

16

79K10

O RING 10

17

15KB1008

FITTING, HYD CONNECTOR

17

79K8

O RING 10

18

7185463

HOSE, HYD 711,2 mm (28'') long - routed at a 40 degree angle from pump center

18

7201240

HOSE, HYD 812,8 mm (32'') long - routed at a 20 degree angle from pump center
