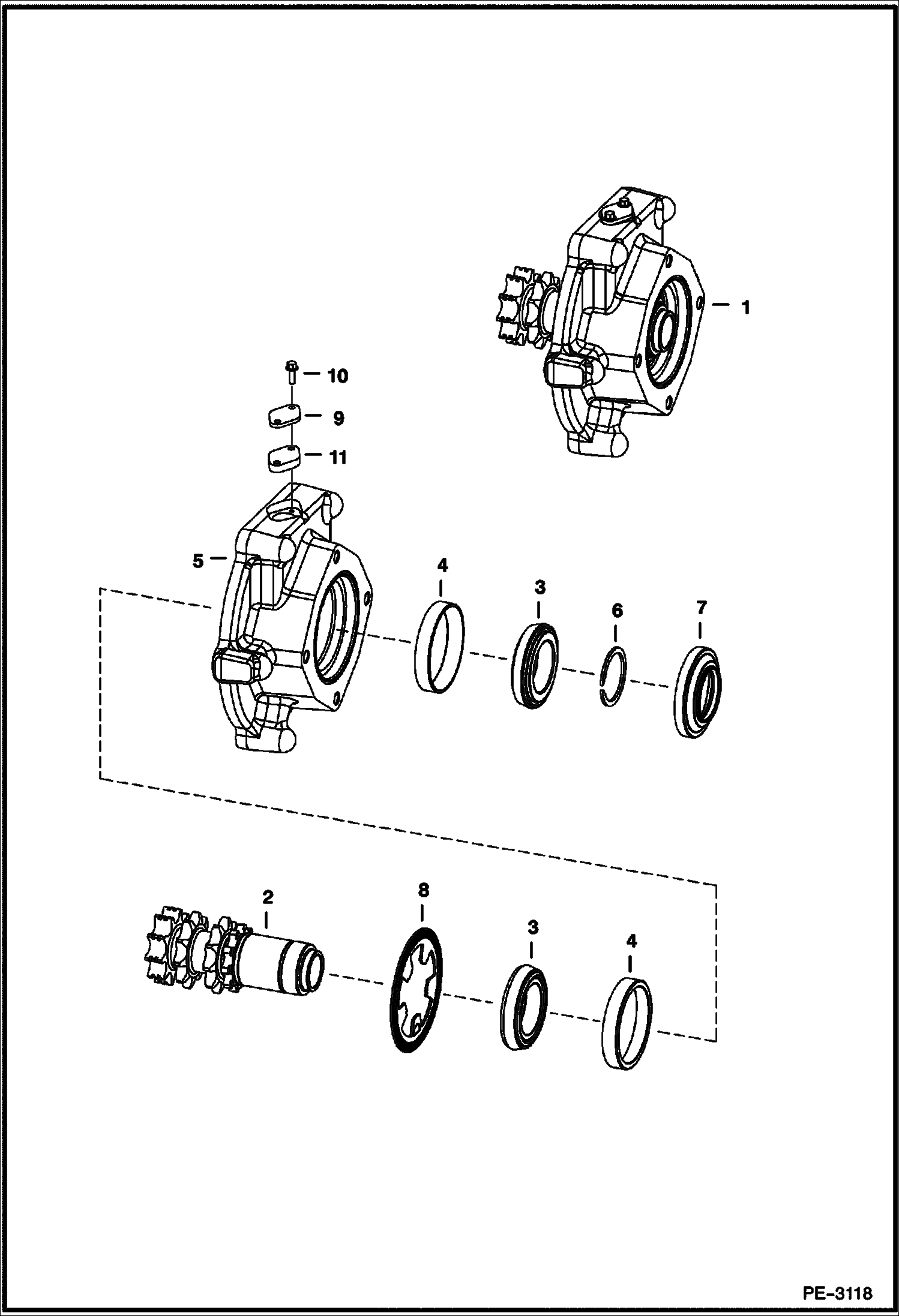

Запчасти Bobcat S-Series MOTOR CARRIER (Drive Motor Mount Assy.) (2-Speed Motor) (W/Speed Sensor) DRIVE TRAIN

1

MOUNT ASSY See BTI419 - NLA - drive motor - Ref. 2-11 - Was 7126159 - A

2

7120109

SHAFT double snap ring groove

3

6632218

CONE, BEARING

4

6632541

RACE

5

HOUSING See BTI419 - NLA - Was 7135506 - A

6

6571851

SNAP RING 0.118'' thickness

6

6571852

SNAP RING 0.125'' thickness

7

6705847

SEAL, OIL

8

6690561

MAGNET speed sensor

9

6730013

COVER

10

35C412

BOLT

11

7110287

GASKET
