Запчасти Bobcat S-Series SCHEDULED MAINTENANCE ITEMS (50 HOUR) MAINTENANCE ITEMS

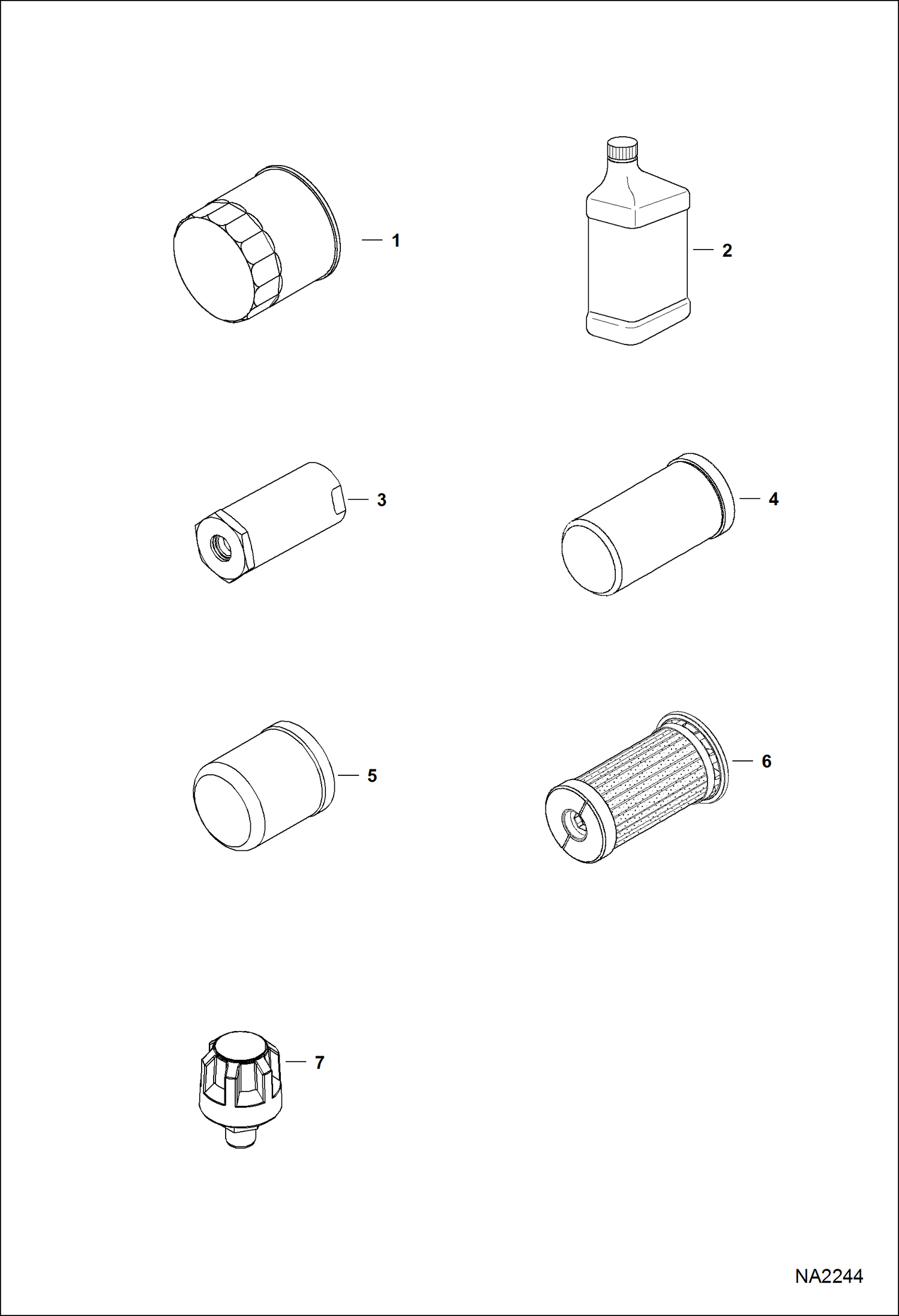

Схема запчастей Bobcat S-Series - SCHEDULED MAINTENANCE ITEMS (50 HOUR) MAINTENANCE ITEMS

Артикул

Название

Примечание

Количество

1

6675517

FILTER, OIL ENG 12 See Illustration GEARCASE/ B27062

2

7023076

OIL, 10W30 QT 12 Was 6903107 - A

2

7023077

OIL, 10W30 GAL 6 Was 6903108 - A

2

7023078

OIL, 10W30 2.5 GAL 2 Was 6903112 - A

2

7023080

OIL, 15W40 QT 12 Was 6903105 - A

2

7023081

OIL, 15W40 GAL 6 Was 6903106 - A

2

7023082

OIL, 15W40 2.5 GAL 2 Was 6903113 - A

2

6903109

OIL 30W QT. 12

2

6903110

OIL, 30W GAL. 6

2

6903111

OIL 30W 2.5 GAL 2

3

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

4

6661248

FILTER, OIL HYD 12 See Illustration HYDROSTATIC OIL FILTER/ NA1844 - #3 media - 152,4 mm (6'') long

5

6686926

FILTER, OIL HYD See Illustration HYDROSTATIC OIL FILTER/ C2818 - 113,5 mm (4.5'') long - charge

6

6692337

FILTER, HYD CARTRIDGE See Illustration COOLING FAN MOTOR/ MS2514 - cooling fan motor

7

7025626

VENT, BREATHER See Illustration HYDROSTATIC CIRCUITRY/ PE3100 - Was 6684923 - A

Выбрано товаров: 15
