Запчасти Bobcat S-Series EUROPEAN ACCESSORIES (Road Kit) (Manual Controls) ACCESSORIES & OPTIONS

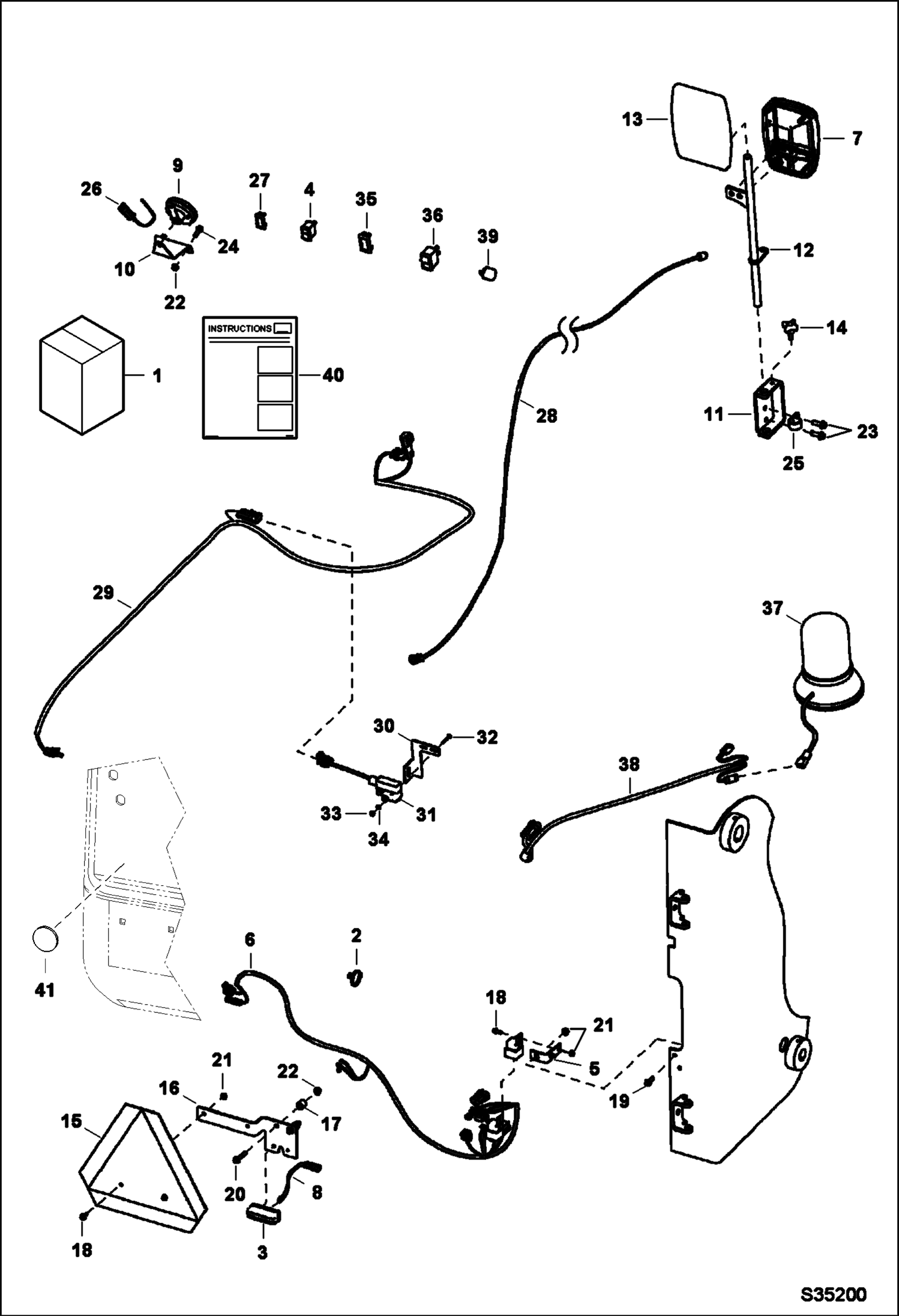

Схема запчастей Bobcat S-Series - EUROPEAN ACCESSORIES (Road Kit) (Manual Controls) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT, ROAD SALES #7182368

2

6624289

STRAP, TIE

3

6665729

LIGHT license plate

4

6668815

SWITCH hazard

5

6702650

MOUNT

6

7141369

HARNESS, KIT ROAD

7

7153089

LIGHT, FRONT ASSY

8

7153090

HARNESS, LIGHT LICENSE

9

6671106

HORN

10

7156351

BRACKET horn

11

7153518

BRACKET front light - RH

11

7153520

BRACKET fonrt light - LH

12

7153519

SHAFT, SPINDLE RH

12

7153521

SHAFT, SPINDLE LH

13

7153522

MIRROR, SIDE HEAD

14

6678755

KNOB

15

7157745

SLOW MOVING PLATE - 12

16

7156220

BRACKET

17

7157740

SPACER

18

29CM616

BOLT

19

29CM625

BOLT

20

29CM845

BOLT

21

43DM6

NUT

22

42DM8

NUT

23

26GM10020

BOLT

24

29CM825

BOLT

25

30H73

CLAMP

26

6713994

HARNESS headlight adapter

27

6665314

PLUG

28

7151706

HARNESS, LIFT ARM

29

7151691

HARNESS, BRAKE LIGHTS

30

7155044

BRACKET sensor

31

6661150

SWITCH, ROLLER MICRO

32

85G616

SCREW 10

33

12D6

NUT 10

34

12E6

WASHER

35

6665314

PLUG

36

6668816

SWITCH beacon

37

6675523

BEACON

38

6718872

HARNESS exterior cab

39

6557904

FLASHER

40

6987360

INSTRUCTIONS, INSTALL

41

7191035

LENS, REFLECTIVE

Выбрано товаров: 43
