Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (W/O Bucket Position Valve) HYDRAULIC SYSTEM

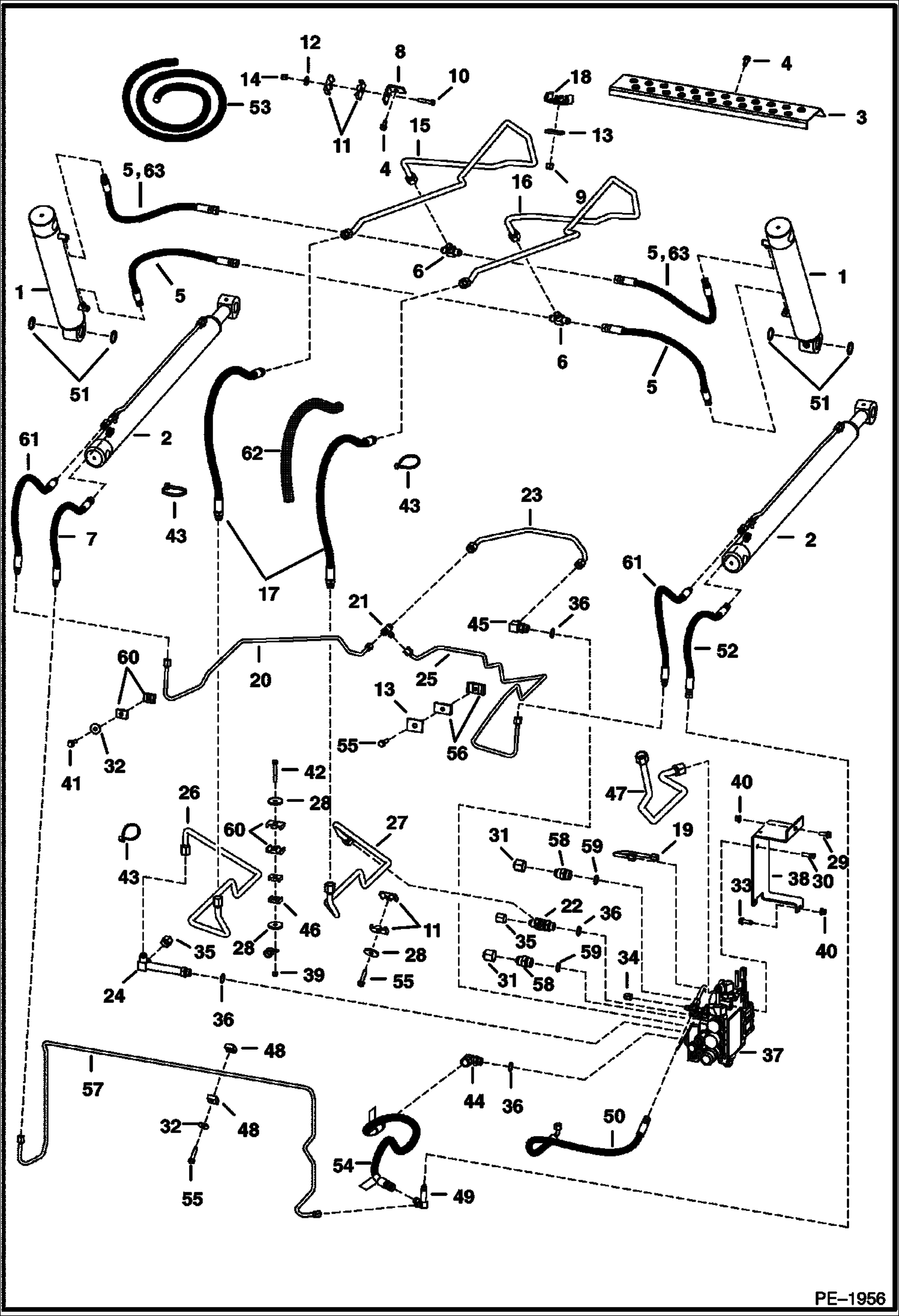

Схема запчастей Bobcat S-Series - HYDRAULIC CIRCUITRY (W/O Bucket Position Valve) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER See Illustration TILT CYLINDER/ PE1056 TILT

2

CYLINDER See Illustration LIFT CYLINDER/ TS1097 LIFT

3

6735669

BOOM STEP

4

84G3712

BOLT 5

5

6718066

HOSE .5625'' thread & .75'' thread female ends - Use (2) per tilt cylinder W/.5625'' thread base end fitting

5

6718066

HOSE .5625'' thread & .75'' thread female ends - Use (1) per tilt cylinder W/.75'' thread base end fitting

6

6716061

TEE

7

7116564

HOSE Was 7104132 - A

8

6718238

BRACKET

9

59D8

NUT 5

10

17C628

BOLT

11

6701893

CLAMP

12

27E6

WASHER 5

13

6553709

WASHER

14

59D6

NUT

15

6734495

TUBE

16

6734496

TUBE

17

6539418

HOSE W/Ref. 62 - Was 6713338 - A

18

6717933

CLAMP

19

6735837

TUBE

20

6726168

TUBE

21

6719424

TEE

21

97K6

O RING flared end

21

97K8

O-RING flared end

22

21KB1010

FITTING, HYD TEE W/Ref. 36

23

6726166

TUBE

24

6730142

TEE W/Ref. 36

25

7217617

TUBELINE, HYD Was 6733186 - B

26

6730203

TUBE

27

6730202

TUBE

28

872229

WASHER

29

35C616

BOLT 5

30

17C620

BOLT

31

36K8

CAP

32

619021

WASHER, 5

33

84G3720

BOLT

34

36K5

CAP

35

36K7

FITTING

36

79K10

O RING 10

37

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B22028

38

6726253

MOUNT

39

59D6

NUT

40

83D6

NUT 5

41

84G3724

BOLT

42

17C644

BOLT

43

6624289

STRAP, TIE

44

6814531

ELBOW W/Ref. 36

45

17KB0810

FITTING, HYD ELBOW W/Ref. 36

46

30H45

CLIP

47

6727640

TUBE See Illustration HYDROSTATIC CIRCUITRY/ PE2108 W/Ref. 7

48

6727707

CLAMP

49

6727638

TEE

49

97K6

O RING flared end

49

97K8

O-RING flared end

50

6737648

HOSE Was 6725436 - A

51

225855

SEAL, OIL 10 38 mm (1.5'') OD

52

7116565

HOSE Was 7104133 - A

53

6643249

CONDUIT bulk - sold per foot

54

6727705

HOSE available only as an assembly W/two danger decals installed

54

6809511

DECAL, DANGER

54

79K8

O RING 10

55

84G3728

BOLT

56

6727708

CLAMP

57

6726167

TUBE

58

15KB1212

FITTING, HYD CONNECTOR W/Ref. 59

59

79K12

O RING 10

60

6726277

CLAMP

61

6727687

HOSE

62

CONDUIT NLA - 30''(762 mm) long - Order Ref. 63

63

7114236

HOSE .75'' thread female ends - Use (1) per tilt cylinder W/.75'' thread base end fitting
