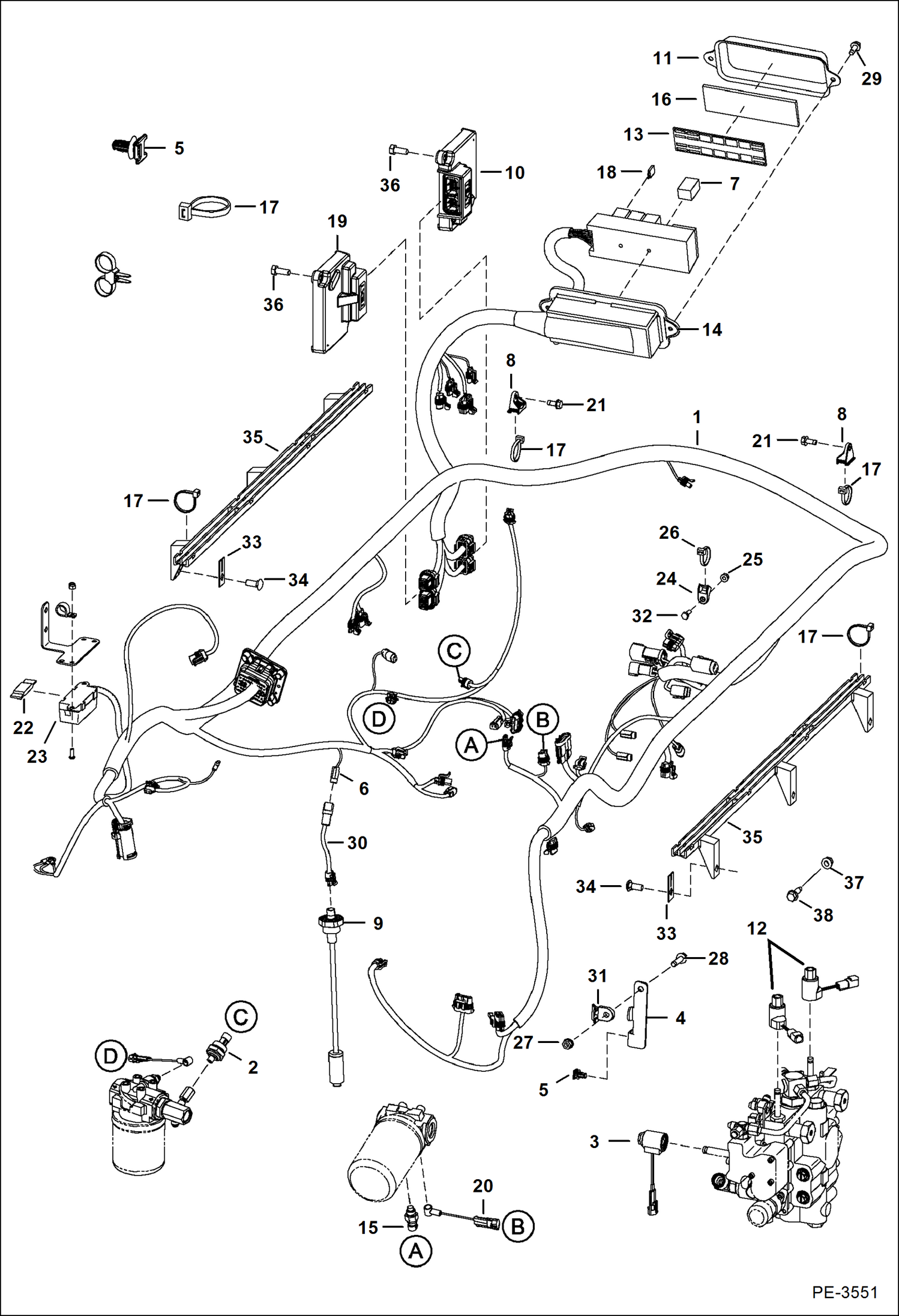

Запчасти Bobcat S-Series ENGINE ELECTRICAL CIRCUITRY (EMEA) (S/N AC3060001 & Above, A8M060001 & Above) ELECTRICAL SYSTEM

1

7159445

HARNESS

2

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

3

6675559

COIL

4

7109495

MOUNT

5

7015668

MOUNT, STRAP TIE push in - Use W/tie strap - Was 6678666 - B

6

6646383

CONNECTOR fuel sender

6

6648330

TERMINAL

7

6679820

RELAY

8

6678818

MOUNT

9

7179837

SENSOR FUEL W/gasket - Was 6680436 - A

9

6717579

GASKET

10

6693353

CONTROLLER, GATEWAY Bobcat

11

6716621

COVER Was 7176546 - A

12

6678891

COIL 10 volt - W/nut

12

6691022

NUT

13

7159779

DECAL fuse relay - 51 x 178 mm (2 x 7'')

14

6718659

HOUSING

14

6673200

FUSE BLOCK

15

6727869

SENDER,HYD TEMP

16

6731275

INSULATION

17

6624289

STRAP, TIE

18

6663289

FUSE, 5A 5 amp

18

6654806

FUSE, 15A

18

6702444

FUSE 25A 5

18

6718034

FUSE, 30A

19

6691288

CONTROLLER, AUX CONTROL

20

6728626

HARNESS

21

84G3112

BOLT 5

22

6675155

FUSE, 100A mega

23

6675154

HOLDER high amp fuse

24

6678667

MOUNT

25

83D4

NUT 10

26

6678668

STRAP, DUAL TIE

27

97D5

NUT

28

35C520

BOLT

29

84G3116

SCREW

30

7117788

HARNESS fuel sender

31

6679034

MOUNT

32

17C412

BOLT 5

33

PLATE, REINFORCEMENT NLA - Was 6698084 - A

34

6689032

STUD

34

37C620

BOLT

35

7131254

BRACKET, MOLDED SKI

36

7157217

BOLT

37

97D6

NUT 10

38

84G3724

BOLT
