Запчасти Bobcat S-Series HYDROSTATIC MOTOR (2-Speed) HYDROSTATIC SYSTEM

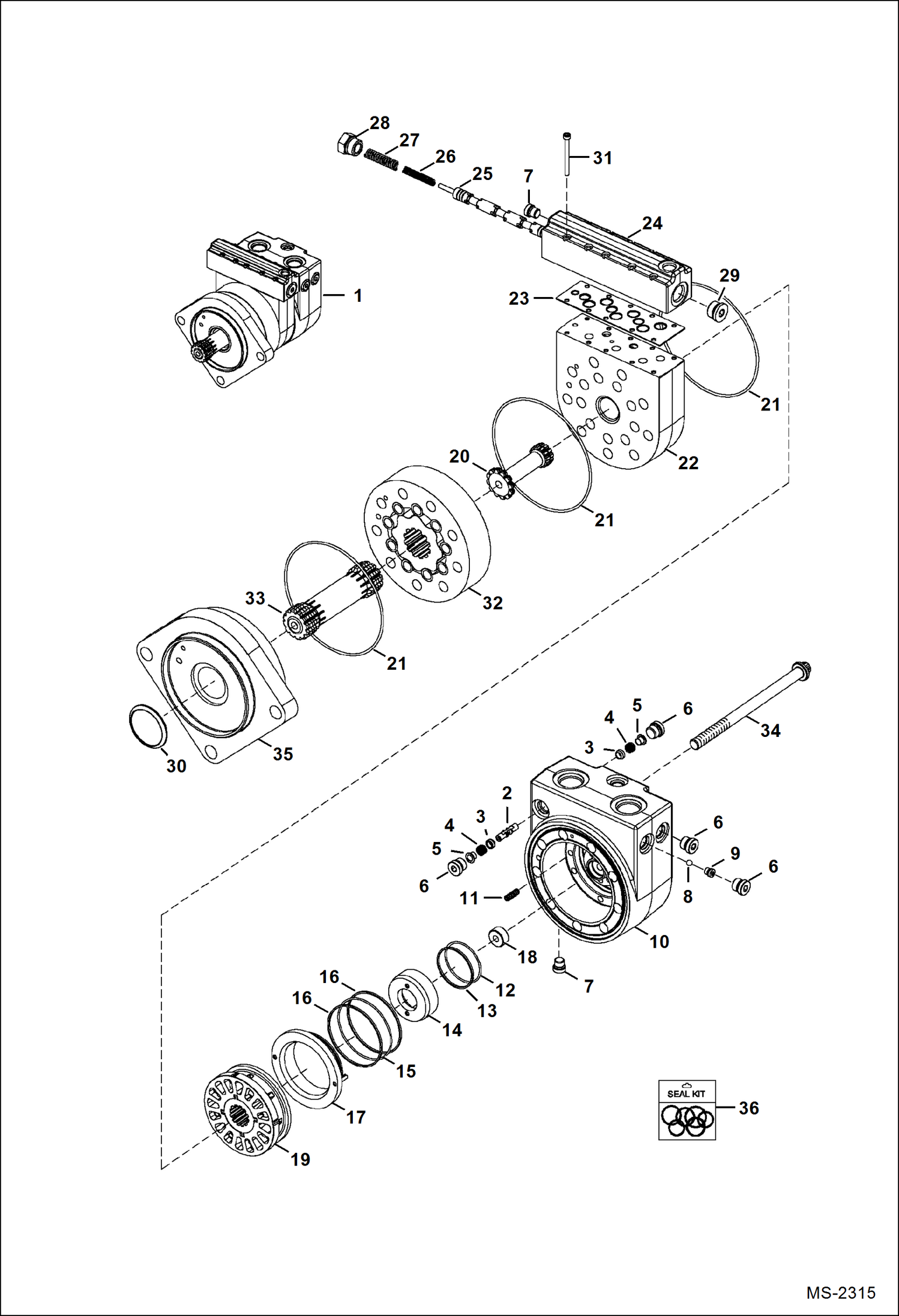

Схема запчастей Bobcat S-Series - HYDROSTATIC MOTOR (2-Speed) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6688565

MOTOR

2

6668088

PISTON

3

6513532

POPPET

4

6513533

SPRING

5

6685065

SHUTTLE

6

6668089

PLUG, MOTOR W/ O-ring

6

O-RING NSS

7

6691541

PLUG W/ O-ring

7

O-RING NSS

8

10J8

BALL

9

6691542

SEAT ball - W/ O-ring

9

O-RING NSS

10

6691566

HOUSING

11

6190121

SPRING

12

6691543

O-RING

13

6691544

RING back-up

14

6691545

RING

15

6691546

O-RING

16

6691547

RING back-up

17

6691548

RING balance

18

6691549

PIN dowel

19

6691550

VALVE

20

6691551

SHAFT

21

6691552

O-RING

22

6691553

PLATE

23

6691554

GASKET

24

6691555

HOUSING

25

6691556

SPOOL

26

6691557

SPRING compression

27

6691558

SPRING compression

28

6651974

PLUG W/ O-ring

28

O-RING NSS

29

6599910

PLUG ASSY. W/ O-ring

29

O-RING NSS

30

6664815

SEAL, OIL Was 6691564 - A

31

6691559

BOLT

32

6691560

GEROLER

33

6691561

SHAFT

34

6691562

BOLT

35

6691563

FLANGE

36

6691565

SEAL KIT Ref. 12, 13, 15, 16, 21, 23, 30 & O-rings for Ref. 6, 7, 9, 28, & 29

Выбрано товаров: 41
