Запчасти Bobcat S-Series HAND CONTROLS HYDROSTATIC SYSTEM

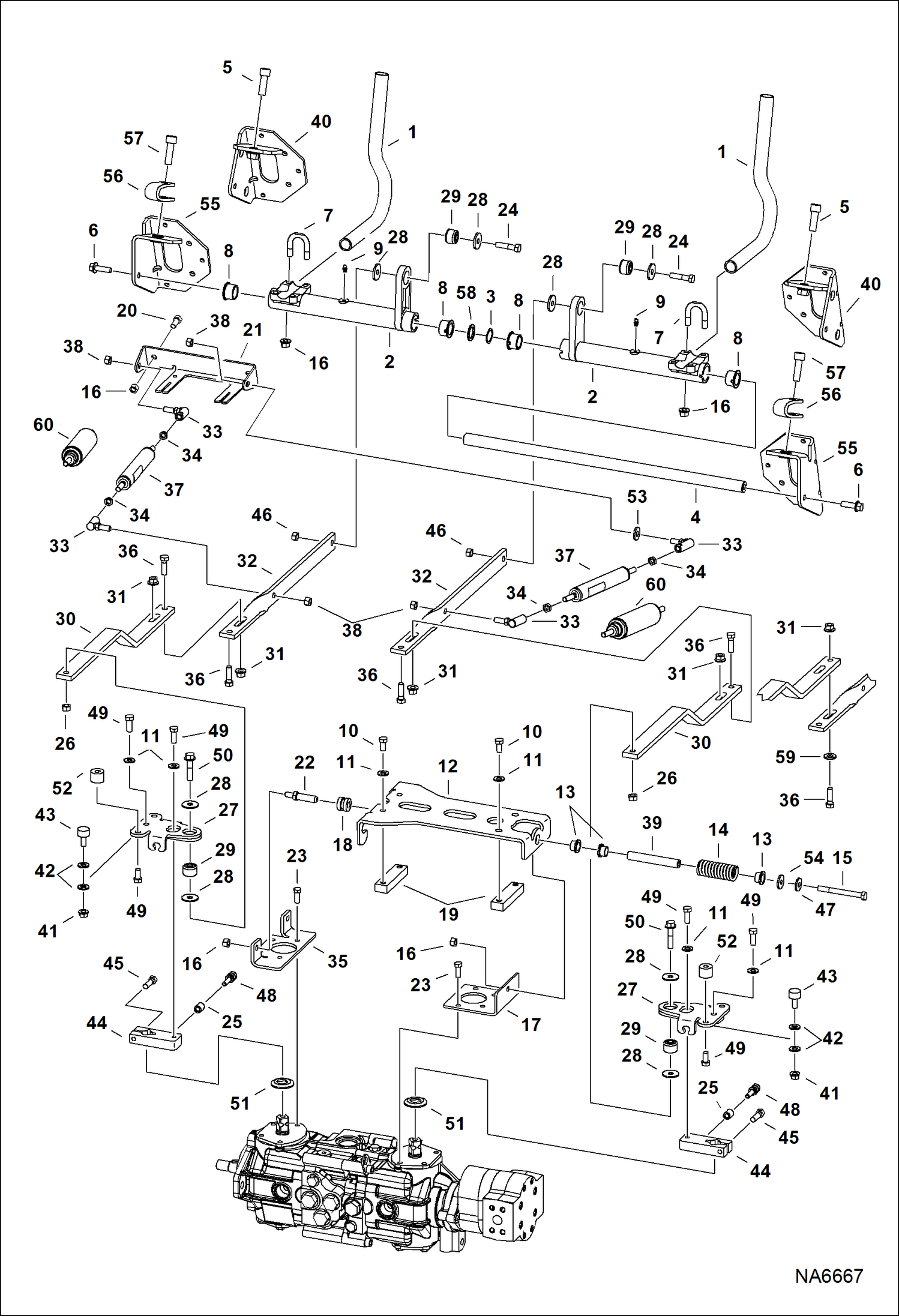

Схема запчастей Bobcat S-Series - HAND CONTROLS HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6702543

LEVER, STEERING

2

7110571

BELLCRANK, STEERING

3

6599741

WASHER wave - Use W/Ref. 58

3

7154546

WASHER, WAVE

4

6716545

ROD

5

93G824

BOLT Was 73G824 - A

6

45C620

BOLT

7

6732997

U-BOLT

8

6703879

BUSHING, PLASTIC W/tab

8

6673710

BEARING, NEEDLE See Illustration CONTROLS ELECTRICAL/ PE2723 needle - AHC

9

10H35

FITTING, GREASE 10

10

17C616

BOLT 5 Was 7105192 - B

11

7103217

WASHER

12

6734298

MOUNT

13

6715163

BUSHING, PRESS FIT

14

6701535

SPRING

15

17C680

BOLT

16

95D6

NUT

17

7109904

BRACKET

18

6706098

GUIDE

19

6702716

BLOCK

20

17C612

BOLT 5

21

7147580

MOUNT damper - W/mount for back-up alarm switch - Was 7100795 - A

22

6577058

PIN

23

1CM820

BOLT

24

17C628

BOLT

25

7105223

SPACER

26

53D6

NUT Was 63D6 - B

27

7110365

ARM, PINTLE

28

6737388

WASHER

29

6685060

BUSHING, TORSION

30

LINK NLA - 18.5'' (469,9 mm) long - Order 7139421 link & Ref. 32 (7139420 link) - Was 6735253 - A

30

7139421

LINK 16'' (406,4 mm) long

31

83D6

NUT 5

32

LINK NLA - 19.57'' (497,1 mm) long - Order 7139420 link & Ref. 30 (7139421 link) - Was 7107986 - A

32

7139420

LINK 586 mm (23.07'') long

33

6599744

BALL JOINT

34

8D6

NUT 5

35

7109905

BRACKET

36

17C620

BOLT

37

GAS SPRING NLA - Japan Option - Order Ref. 60 - Was 6649551 - A

38

62D6

NUT 5

38

62D6

NUT 5

39

6715164

SLEEVE, SPRING

40

BRACKET R.H. - Order Ref. 55-57 - Was 6733022 - A

40

BRACKET L.H. - Order Ref. 55-57 - Was 6733024 - A

41

98D6

NUT See Illustration CONTROLS ELECTRICAL/ PE2723 AHC

42

7100699

WASHER See Illustration CONTROLS ELECTRICAL/ PE2723 AHC

43

6673789

BEARING See Illustration CONTROLS ELECTRICAL/ PE2723 ROLLER - AHC

44

7103708

BRACKET centering

45

7105194

BOLT

46

53D6

NUT

47

6563914

WASHER

48

7103711

BOLT

49

47C620

BOLT Was 7105193 - A

50

17C628

BOLT Was 49C628 - B

51

6687913

SEAL dust

52

6711643

CAM

53

SPACER NLA - Order Ref. 34 - Was 7110945 - A

54

25E24

WASHER AHC - Was 25E22 - B

55

7128600

BRACKET RH

55

7128601

BRACKET LH

56

7121779

PAD

57

73G828

BOLT

58

6716916

WASHER plastic - Use W/Ref. 3 (6599741 washer)

59

6563914

WASHER RH - 2-speed - if equipped

60

7188108

GAS SPRING

Выбрано товаров: 67
