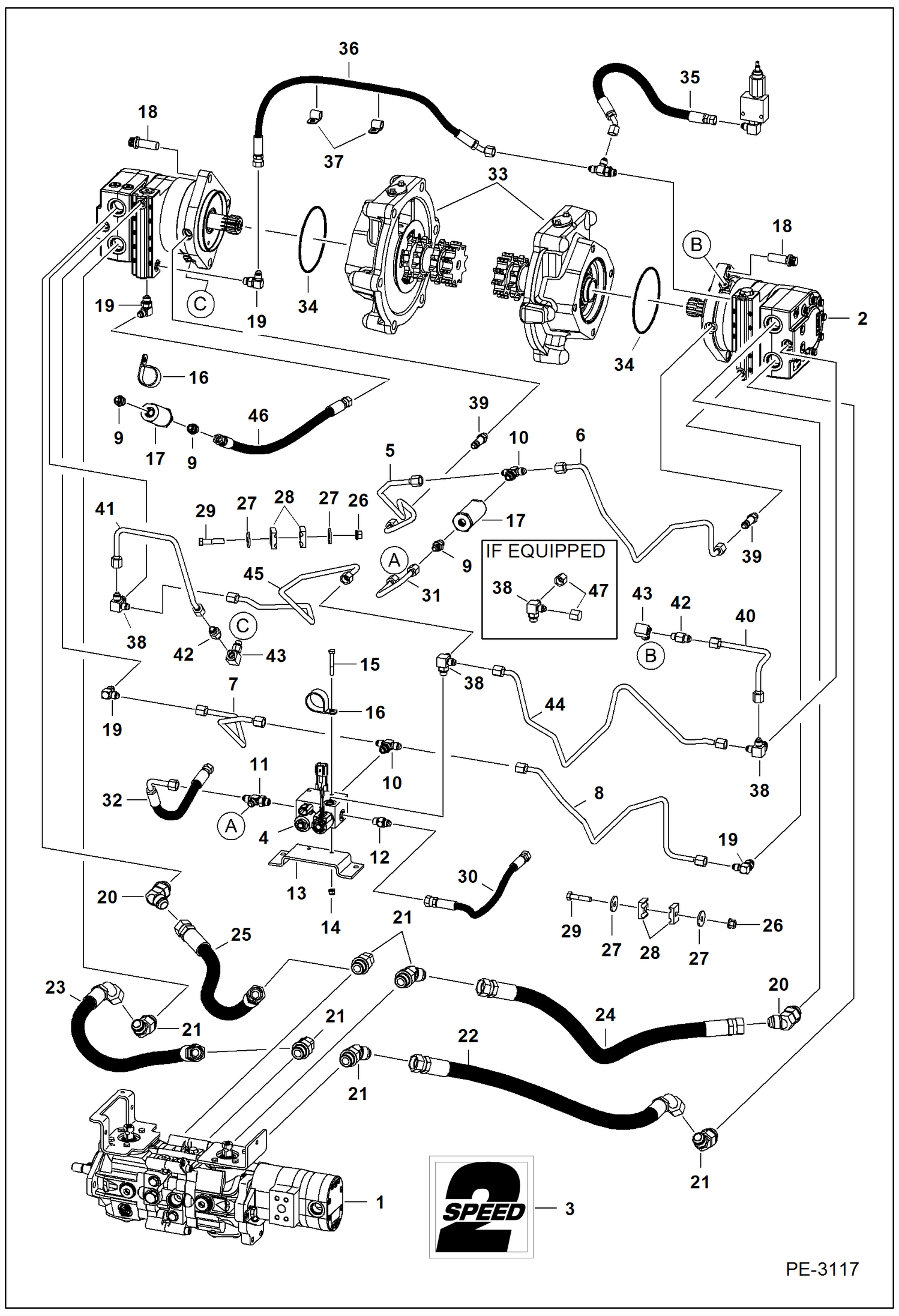

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (2-Speed Motor) HYDROSTATIC SYSTEM

1

PUMP See Illustration HYDROSTATIC PUMP/ B25010 See Illustration HYDROSTATIC PUMP/ MS2184

2

MOTOR See Illustration HYDROSTATIC MOTOR/ MS2315

3

6729078

DECAL 2-speed

4

6692925

VALVE Was 6692372 - C

4

6691066

SEAL KIT

4

6691067

COIL W/molded connector - 2 speed

4

6676243

COIL W/pigtail connector - warming coil

5

7140865

TUBE Was 7132069 - C

6

7140866

TUBE Was 7132070 - C

7

7144131

TUBE Was 7125066 - C

8

7144132

TUBE Was 7125068 - C

9

15KB0606

FITTING, HYD CONNECTOR

9

79K6

O RING 10

10

19KB0606

TEE

10

79K6

O RING 10

11

21KB0606

FTG HYD STRAIGHT TEE

11

79K6

O RING 10

12

6669676

CHECK VALVE inline

12

79K6

O RING 10

13

7125072

MOUNT

14

59D4

NUT 5

15

17C444

BOLT Was 17C432 - B,D

16

30H79

CLAMP

17

6661022

FILTER, OIL HYD IN-LINE

18

73G1028

BOLT

19

17KB0606

FITTING

19

79K6

O RING 10

20

6734623

ELBOW

20

79K12

O RING 10

21

6737453

ELBOW

21

79K12

O RING 10

22

6690239

HOSE

23

6690240

HOSE

24

6690242

HOSE

25

6690241

HOSE

26

83D6

NUT 5

27

619021

WASHER, 5

28

6726277

CLAMP

29

17C628

BOLT

30

6803157

HOSE ASSY

31

7144130

TUBE Was 7125065 - C

32

7125070

HOSE

33

MOUNT ASSY See BTI419 - NLA - drive motor Was 7126159 - A

34

25K30508

O-RING, 10

35

7138452

HOSE

36

7138454

HOSE

37

30H31

CLAMP 10

38

6725182

TEE

39

7122214

ADAPTER

40

7140589

TUBE

41

7140590

TUBE

42

7140928

VALVE, RELIEF relief

43

7141805

ELBOW

43

79K6

O RING 10

44

7143188

TUBE

45

7143189

TUBE

46

7126166

HOSE
