Запчасти Bobcat S-Series CONTROL PEDALS HYDRAULIC SYSTEM

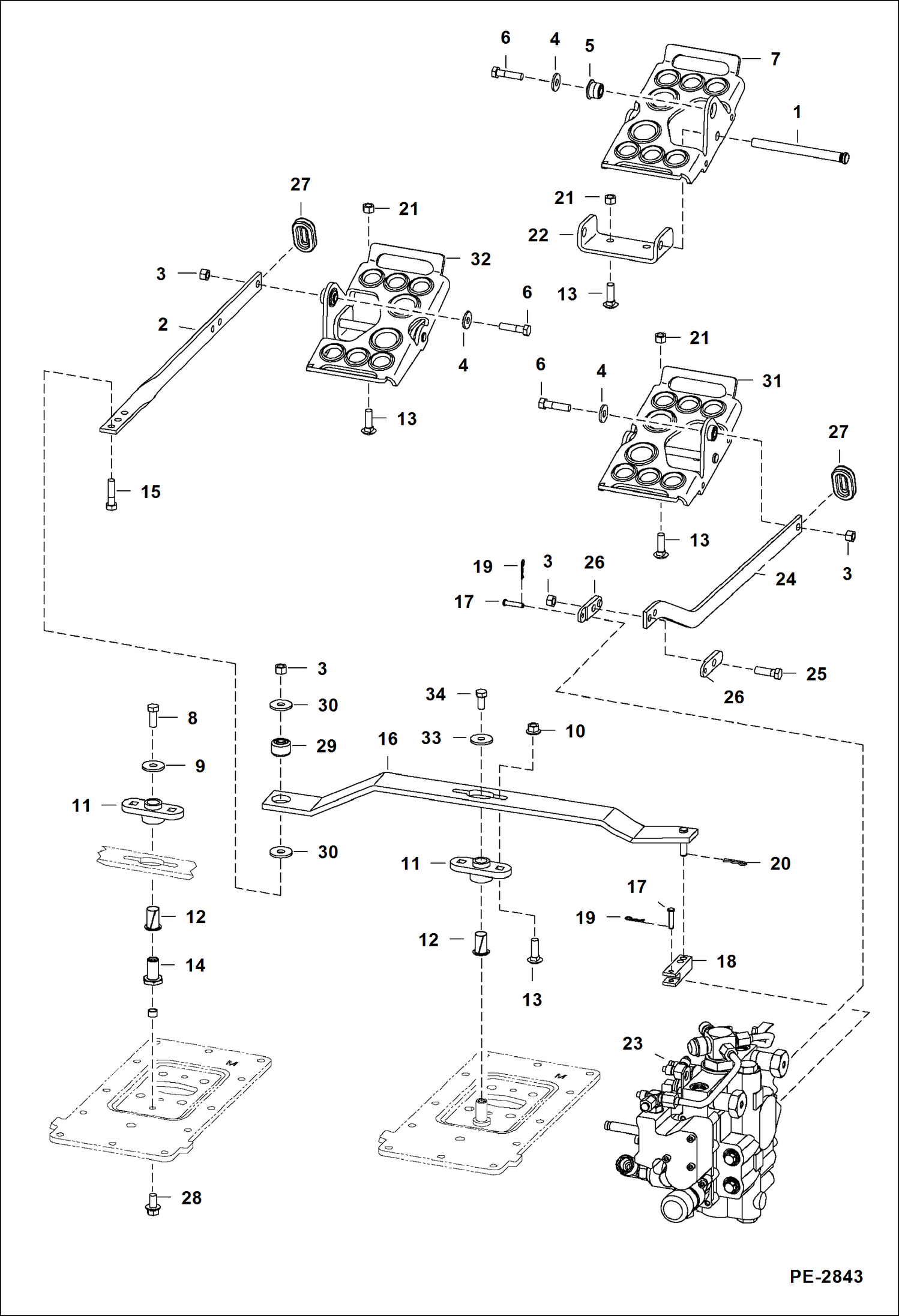

Схема запчастей Bobcat S-Series - CONTROL PEDALS HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6564657

PIN

2

6576302

BAR

3

95D6

NUT

4

6563914

WASHER

5

6665701

BUSHING, PRESS FIT

6

17C624

BOLT 5

7

7115219

PEDAL

8

17C616

BOLT 5

9

619021

WASHER, 5 0.13'' thick - 32 mm (1.25'') OD

10

53D6

NUT flanged head - pre-applied loctite

11

6708043

BUSHING flange

12

6512026

BUSHING

13

37C620

BOLT

14

6706104

RETAINING NUT

15

49C628

BOLT

16

7108408

LEVER

17

6564654

PIN

18

6706105

YOKE

19

6513495

COTTER PIN

20

1306637

CLIP

21

57D6

NUT 5

22

7115220

MOUNT

23

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2734

24

6717820

BAR

25

17C620

BOLT

26

6708009

LINK 2.69'' (68,3 mm) long

27

6577961

GROMMET

28

43C612

BOLT Was 17C612 - B

29

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD

30

6737388

WASHER

31

7123942

PEDAL ASSEMBLY RH - W/Ref. 1, 5, 7 & 22

32

7123941

PEDAL ASSEMBLY LH - W/Ref. 1, 5, 7 & 22

33

17C612

BOLT 5

34

6557831

WASHER 0.15'' thick - 0.88'' OD

Выбрано товаров: 34
