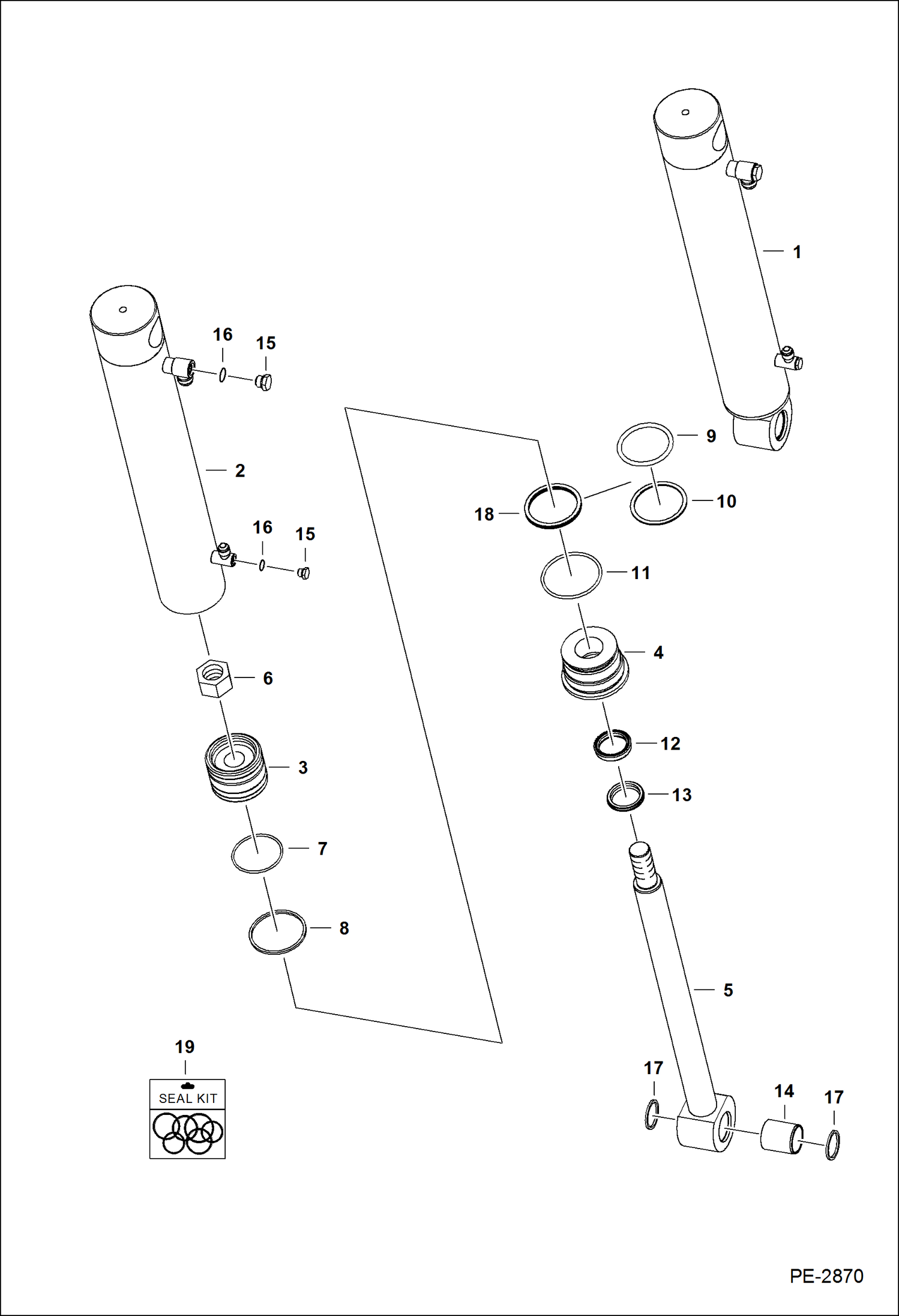

Запчасти Bobcat S-Series TILT CYLINDER HYDRAULIC SYSTEM

1

CYLINDER, TILT NLA - Ref. 2-13, 15 & 16 - 0.563'' base end fitting - Order 7117174 cylinder & 7114236 hose - Was 6809802 - A

1

7117174

CYLINDER, TILT Ref. 2-8, 11-13, 15, 16 & 18 - 0.75'' base end fitting

2

CASE NLA - 70 mm (2.75'') ID - 0.563'' base end fitting - Order 7117175 case & 7114236 hose - Was 6809904 - A

2

7117175

TUBE, CASE CYL TILT 70 mm (2.75'') ID - 0.75'' base end fitting

3

6806315

PISTON

4

6536968

HEAD Was 6806332 - A

5

6809903

SHAFT, ROD CYL TILT 35 mm (1.375'') - W/Ref. 14

6

92D16

NUT

7

25K30210

O-RING Was 54K30210 - B

8

6516229

PISTON SEAL

9

25K60212

O RING 10 Was 54K60212 - B

10

80K332

WASHER back-up

11

25K40224

O RING 10 Was 54K40224 - B

12

6667325

SEAL rod

13

6666543

WIPER, ROD CYL

14

6805453

BUSHING wear

15

6812170

PLUG .375'' thread - W/Ref. 16

15

6812171

PLUG .563'' thread - W/Ref. 16

16

75K3

O-RING .375'' ID

16

75K6

O-RING .563'' ID

17

225855

SEAL, OIL 10 38 mm (1.5'') OD

18

7008356

SEAL, QUAD

19

6806330

KIT, SEAL Ref. 6-8, 11-13 & 18
