Запчасти Bobcat S-Series FUEL SYSTEM (S/N 529711001 & Above, 529811001 & Above) MAIN FRAME

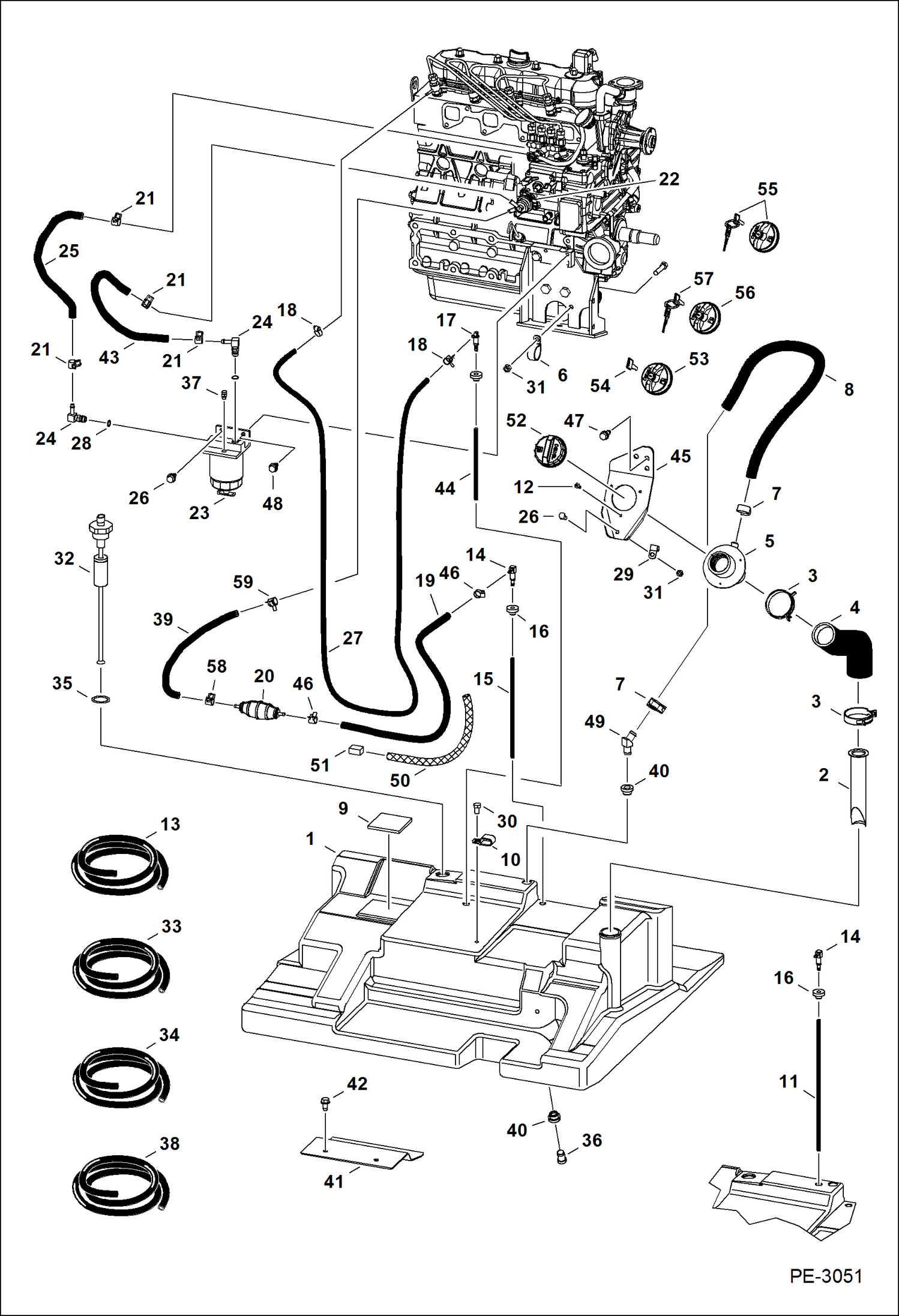

Схема запчастей Bobcat S-Series - FUEL SYSTEM (S/N 529711001 & Above, 529811001 & Above) MAIN FRAME

Артикул

Название

Примечание

Количество

1

TANK FUEL Use W/Ref. 11 - Order 7136378 tank & Ref. 44 - Was 7112782 - A

1

7136378

TANK, FUEL Use W/Ref. 44 - Was 7112782 - A

2

7120881

SCREEN, FILLER Was 6569219 - A

3

42H32

HS CLAMP5 worm gear

3

5HM58

CLAMP constant tension

4

6717704

HOSE

5

6701449

FILLER TUBE

6

30H75

CLAMP

7

42H10

HOSECLAM5 worm gear

7

5HM24

CLAMP constant tension

8

HOSE NLA - 1270 mm (50'') long - Order Ref. 13

9

6578278

PAD self adhesive one side

10

31H27

CLIP

11

6729854

TUBE 317,5 mm (12.5'') long

12

6706517

SCREW

13

6578172

HOSE bulk - sold per foot

14

6598908

ELBOW

15

6729853

HOSE 260,4 mm (10.25'') long

16

6553411

BUSHING 0.38'' ID

17

7101291

ELBOW Was 6681462 - A

18

42HS04

CLAMP, HOSE

19

HOSE NLA - 939,8 mm (37'') long - Order Ref. 33

20

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

21

5HM14

CLAMP

22

6655216

FUEL PUMP See Illustration FUEL & INJECTION PUMP/ B22686

23

6667353

FILTER ASSY W/Ref. 37

23

6667352

FILTER, FUEL W/SEPARATOR 12

23

72F1

FITTING

24

6715183

ELBOW W/Ref. 28

25

HOSE NLA - 381 mm (15'') long - Order Ref. 34

26

84G3112

BOLT 5

27

HOSE NLA - 1574,8 mm (32'') long - Order Ref. 38

28

79K5

O RING 10

29

30H22

CLIP

30

17C610

BOLT

31

85D5

NUT 5

32

7179837

SENSOR FUEL W/Ref. 35 - Was 6680436 - A

33

6577821

HOSE bulk - sold per foot - .25'' ID

34

6577822

HOSE bulk - sold per foot - .3125'' ID

35

6717579

GASKET

36

7203382

PLUG, STEEL fuel drain - .75'' shoulder - Was 6717401 - A

37

6658180

PLUG, BLEED

38

6578169

HOSE bulk - sold per foot - 0.19'' ID

39

HOSE NLA - 431,8 mm (17'') long - Order Ref. 33

40

6717402

BUSHING 0.54'' ID

41

6737368

BRACKET

42

84G3712

BOLT 5

43

HOSE NLA - 330 mm (13'') long - Order Ref. 34

44

HOSE 284,5 mm (11.20'') long - Order 7126464 hose W/elbow

44

HOSE 269,2 mm (10.60'') long - Order 7126464 hose W/elbow - Was 7126472 - A

44

7126464

HOSE, FUEL W/ELBOW

45

6731059

INLET fuel fill

46

5HM13

CLAMP

47

84G3716

SCREW 5

48

84G3116

SCREW

49

NLA - 90 degree - Order 7122519 elbow - Was 6808798 - B

49

7122519

ELBOW 45 degree

50

7124294

GUARD 457,2 mm (18'') long

51

7124326

RETAINER foam - 76,2 mm (3'') long

52

6661114

CAP. DIESEL green

52

7113340

CAP. DIESEL non-locking - European

53

CAP NLA - locking - W/Key - Code GC020

53

6661696

CAP, FUEL LOCKING locking - W/Key - Code PK510

54

6654374

KEY Code GC020

54

6587458

KEY Code PK510

55

7121223

CAP. DIESEL LOCKING black

56

7023550

CAP, DIESEL LOCKING

57

6693241

KEY 10 ignition - single key W/O ring

58

5HM13

CLAMP

59

5HM14

CLAMP

Выбрано товаров: 70
