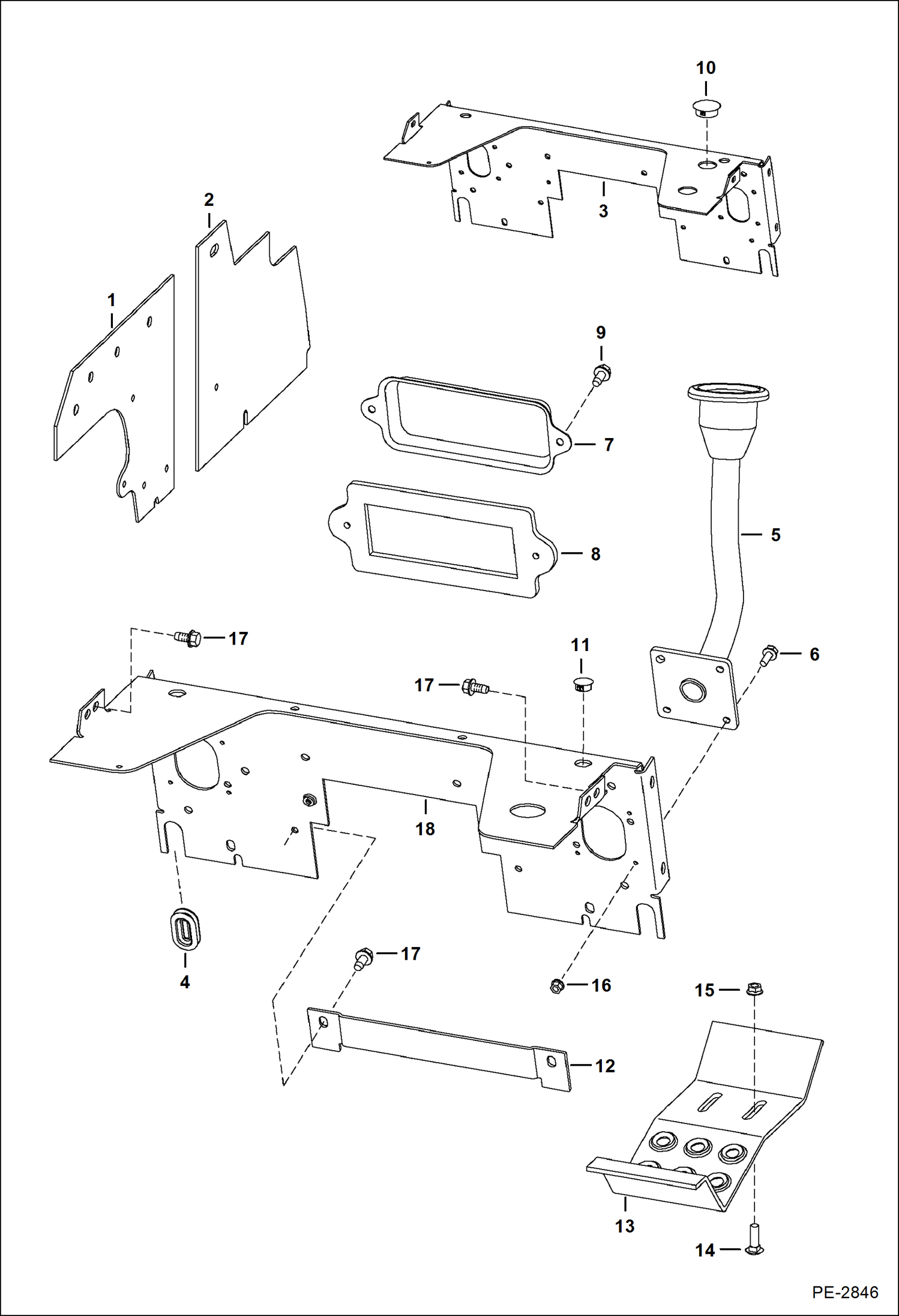

Запчасти Bobcat S-Series PANELS (Selectable Joystick Controls) MAIN FRAME

1

7117232

PANEL side rear

1

7141968

PANEL, RH side rear

2

7117123

PANEL side front

3

SHIELD NLA - Order Ref. 18 - Was 7106687 - A

4

6714726

GROMMET

5

HANDLE See Illustration CONTROLS ELECTRICAL/ PE2681 - NLA - joystick - RH - Was 6729791 - A

5

HANDLE See Illustration CONTROLS ELECTRICAL/ PE2681 - NLA - joystick - LH - Was 6729792 - A

6

35C512

BOLT

7

6716621

COVER Was 7176546 - A

8

6725302

GASKET

9

84G3112

BOLT 5

10

6681469

PLUG 35 mm (1.38'') dia hole

11

6648348

PLUG 0.81'' dia hole

12

6717890

COVER

13

6712365

STEP

14

37C620

BOLT

15

57D6

NUT 5

16

89D5

NUT

17

84G3712

BOLT 5

18

7139183

SHIELD
