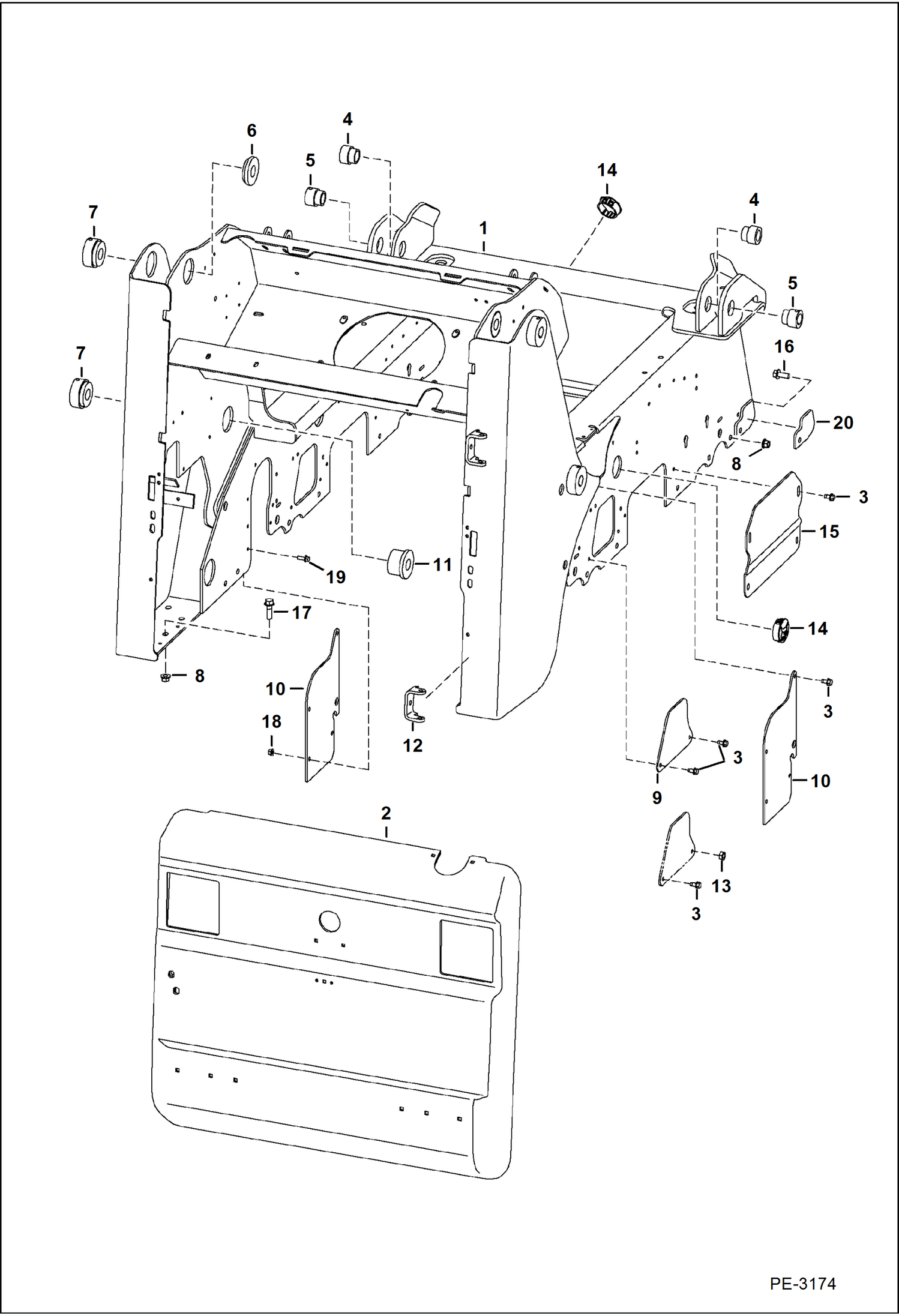

Запчасти Bobcat S-Series MAIN FRAME MAIN FRAME

1

MAINFRAME See Illustration HYDROSTATIC CIRCUITRY/ PE2736 - NLA - Uses hyd oil filter mounted W/ports horizontal - Order 7141606 mainframe, 7132554 hose, 7132542 tubeline, 7136052 mount & 7141653 plate

1

7141606

MAINFRAME See Illustration HYDROSTATIC CIRCUITRY/ PE3729 - Uses hyd oil filter mounted W/ports vertical

2

6729991

REAR DOOR See Illustration REAR DOOR/ PE2252

3

84G3712

BOLT 5

4

6717278

BUSHING, WELD-ON

5

6717277

BUSHING, WELD-ON weld on

6

6717356

BUSHING, WELD-ON weld on

7

6731578

BUSHING, WELD-ON

8

83D8

NUT 5

9

7136696

COVER Was 6726069 - A

10

7152006

SHIELD Was 6733912 - A

11

6737131

BUSHING weld on

12

6708987

HINGE, WELD-ON

13

61D6

NUT 5

14

6718796

PLUG

15

6719201

COVER

16

31C820

BOLT

17

31C828

BOLT

18

83D6

NUT 5

19

84G3720

BOLT

20

7141656

PLATE, WELD-ON weld-on
