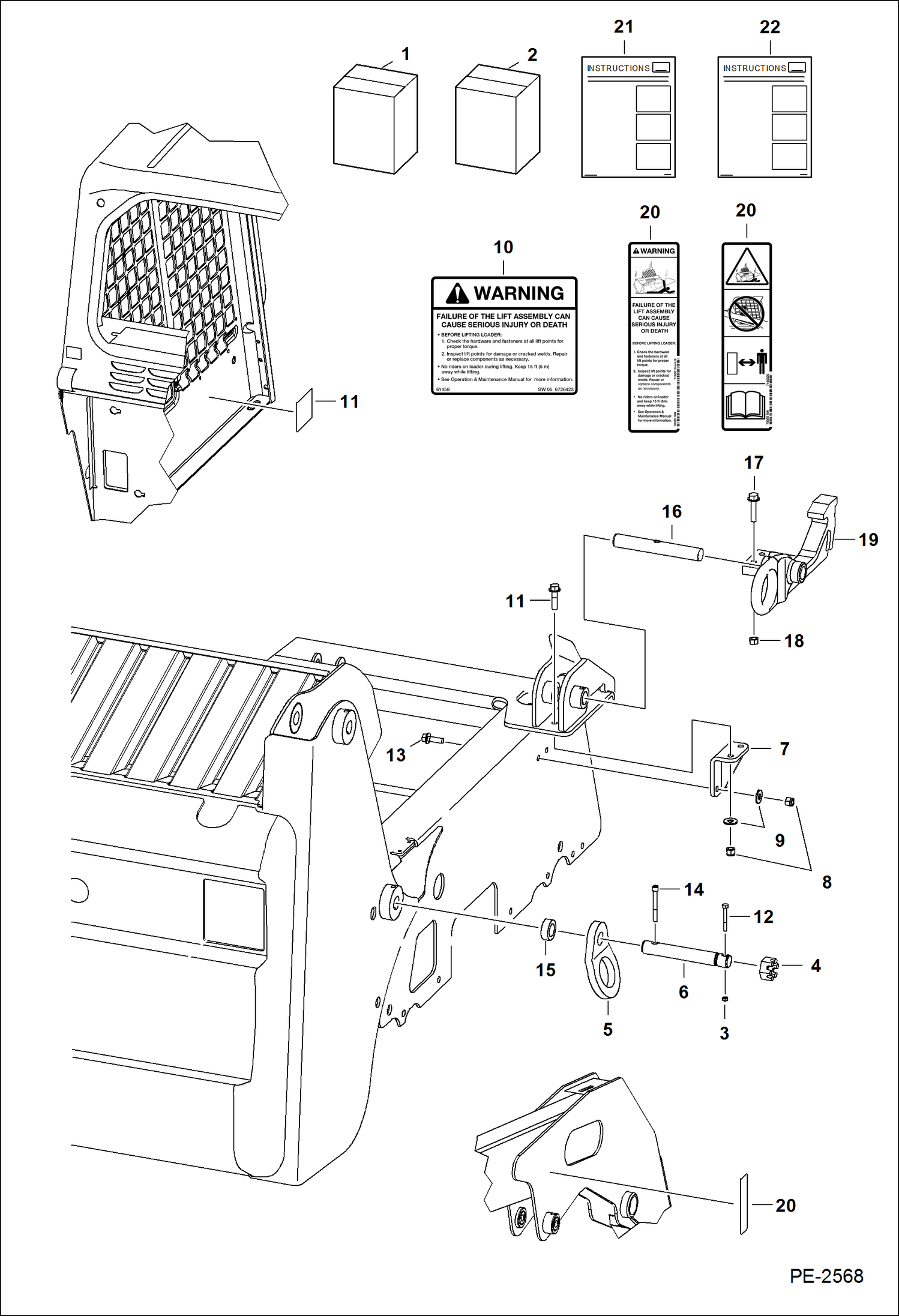

Запчасти Bobcat S-Series LIFT KIT (Four Point) (W/Backhoe Mount) ACCESSORIES & OPTIONS

1

7108394

KIT, LIFT 4-POINT Ref. 3-9, 11-15, 20 & 22

2

KIT Sales # 7101325

3

87D5

NUT

4

4D20

NUT

5

6706825

LIFT EYE

6

6737132

PIN

7

7107353

GUSSET

8

59D8

NUT 5

9

27E8

WASHER 10

10

6726423

DECAL, WARNING check before lifting - not in kit

11

31C832

BOLT

12

17C540

BOLT

13

31C824

BOLT 10

14

73G632

SCREW

15

6719906

SPACER

16

6717707

PIN

17

31C836

BOLT

18

63D8

NUT

19

6718122

MOUNT LH

19

6717293

MOUNT RH

20

7168019

DECAL, WARNING

20

7168020

DECAL, WARNING no text

21

6903359

INSTRUCTIONS For Ref. 1

22

6902798

INSTRUCTIONS For Ref. 2
