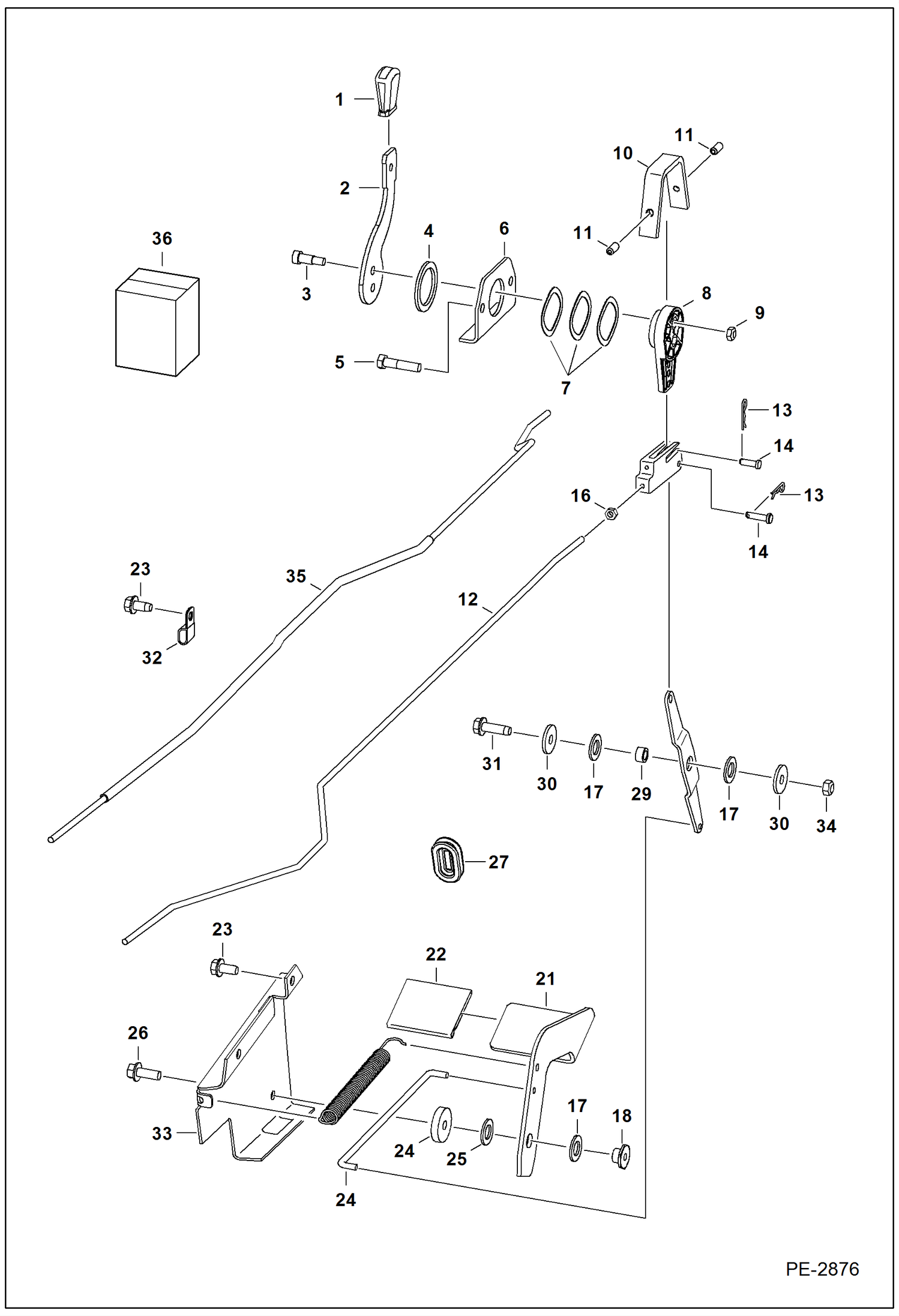

Запчасти Bobcat S-Series ENGINE SPEED CONTROL (Selectable Joystick Controls) POWER UNIT

1

6564452

GRIP

2

6730270

LEVER

3

38C610

BOLT shoulder

4

6567962

WASHER

5

84G3724

BOLT

6

6576262

MOUNT

7

6630945

WASHER

8

6734416

LEVER

9

85D5

NUT 5

10

6576261

COVER Was 6734520 - A

11

6706572

SET SCREW

12

7102277

ROD

13

6513495

COTTER PIN

14

2F4051

PIN

15

6700743

SPRING

16

62D4

NUT

17

6700170

WASHER plastic

18

6559479

NUT retaining

19

1304227

PIN

20

6734503

CLEVIS

21

6735680

FOOT PEDAL Was 6731898 - A

22

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

23

84G3712

BOLT 5

24

6731900

ROD

25

6732322

SPACER

26

45C616

BOLT

27

6577961

GROMMET

28

6734417

LEVER

29

6564343

SPACER

30

619021

WASHER, 5

31

84G3720

BOLT

32

31H38

CLAMP

33

6732323

BRACKET

34

85D6

NUT, 5

35

7121072

ROD See Illustration REAR AUXILIARY KIT/ PE2879 for rear aux.
