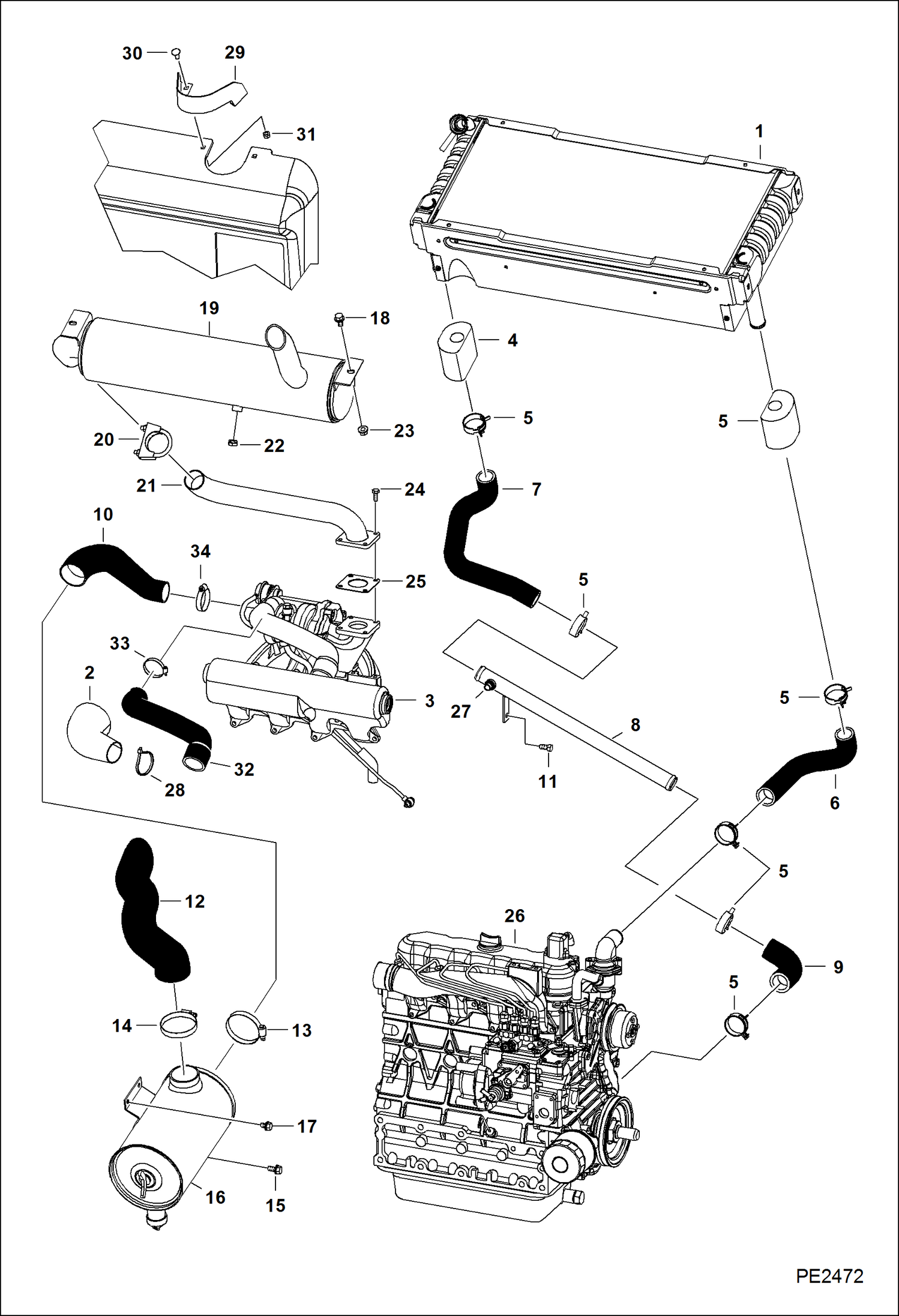

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Air Cleaner, Muffler, Radiator Water Exchanger) (S/N 526711001 & Above, 526611001 & Above) POWER UNIT

1

6686077

EXCHANGER, WATER RADIATOR Was 6718648 - D

2

6706393

SHIELD

3

TURBO See Illustration TURBO CHARGER/ B22742

4

6726433

SPACER

5

5HM42

HOSECLAMP

6

6717591

HOSE

7

6717592

HOSE

8

6730999

TUBE ASSY

9

7100024

HOSE

10

6737355

HOSE

11

17C612

BOLT 5

12

6735349

HOSE

12

7102656

HOSE

13

42HL300

CLAMP

13

42H52

CLAMP

14

42H32

HS CLAMP5

15

84G3712

BOLT 5

16

6700711

AIR CLEANER See Illustration AIR CLEANER/ B16478

17

84G3708

SCREW

18

35C616

BOLT 5 Was 35C000612B - B

19

6683915

MUFFLER, EXHAUST

20

7101708

CLAMP Was 6677363 - A

21

7107449

TUBE, EXHAUST Was 6683820 - A

22

6661062

PLUG brass - 0.38''

23

61D6

NUT 5

24

6701123

SCREW

25

6727753

GASKET

26

ENGINE See Illustration ENGINE & GASKET KITS/ NA1521

27

40K6

PLUG

28

7104076

TIE

29

6714624

SHIELD Europe only

30

37C512

BOLT

31

61D5

NUT

32

HOSE See Illustration TURBO CHARGER/ B22742

33

CLAMP See Illustration TURBO CHARGER/ B22742

34

42HL250

CLAMP
