Запчасти Bobcat S-Series HYDRAULIC CONTROL VALVE (Service Valve) (BICS Combo Valve) HYDRAULIC SYSTEM

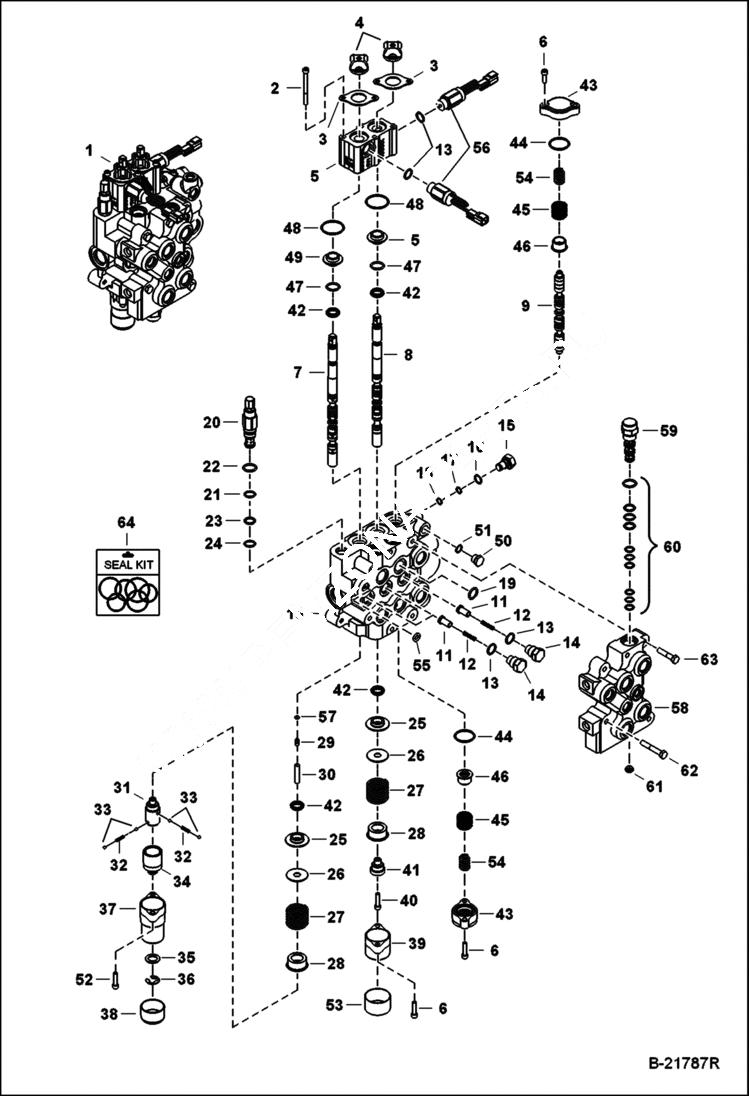

Схема запчастей Bobcat S-Series - HYDRAULIC CONTROL VALVE (Service Valve) (BICS Combo Valve) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

VALVE, CONTROL SERVICE See Illustration HYDRAULIC CONTROL VALVE/ NA6732 See BTI336 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove

2

29G444

BOLT

3

6589564

RETAINER

4

6587763

BOOT

5

6812031

BLOCK

6

29G416

BOLT

7

6814511

SPOOL, LIFT Was 6674808 - A

8

6815152

SPOOL, TILT Was 6811412 - A

9

6588074

SPOOL auxiliary

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6592720

PLUG

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10

19

55K204

O RING 10 See Illustration BICS CONTROL VALVE/ TS1365

20

VALVE NLA - main relief - W/Ref. 21-24 - pressure preset at factory - Was 6676195 - A

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10

22

6665569

WASHER back-up

23

25K20016

O RING 10

24

6665570

RING glide

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

43

6588781

END CAP

44

58K124

O RING 10

45

6596332

SPRING Was 6806007 - B,D

46

7108780

SLEEVE Was 6595951 - A

47

82K019

O-RING - A

48

1K127

O-RING 10 Was 93K127 - A

49

7202038

BUSHING, ALIGNMENT Also Order 82K019 alignment O-ring - Was 6805102 - A

50

6806561

PLUG W/Ref. 51 & 57 - hex head

51

79K7

O RING 10 Was 95K-12 - D

52

54K20002

O'RING 10

53

6662848

CAP

54

6806007

SPRING Was 6596332 - B,D

55

55K212

O RING 10 See Illustration BICS CONTROL VALVE/ TS1365

56

6676029

SOLENOID, LOCK SPOOL 127 mm (5'') wire - Was 6677383 - B,D

57

25K20012

O RING 10

58

BLOCK See Illustration BICS CONTROL VALVE/ TS1365 NSS - BICS CONTROL

59

6689739

VALVE

60

6669734

KIT, SEAL

61

6668791

ORIFICE

62

43C532

BOLT

63

43C524

BOLT

64

6816253

KIT, SEAL Ref. 2, 4, 6, 13, 16-18, 19, 21-24, 29, 42, 44, 48, 52 & 55 - Was 6809448 - A

64

6816252

SEAL KIT two spool - Ref. 2, 4, 29, 42, 48 & 52- Was 6806941 - A

64

6632279

KIT, SEAL main relief - Ref. 21-24

64

6809425

SEAL KIT Ref. 13 & 16-18

64

6669734

KIT, SEAL Ref. 60

Выбрано товаров: 69
