Запчасти Bobcat S-Series AUXILIARY HYDRAULICS (W/Pressure Relief Coupler Block) HYDRAULIC SYSTEM

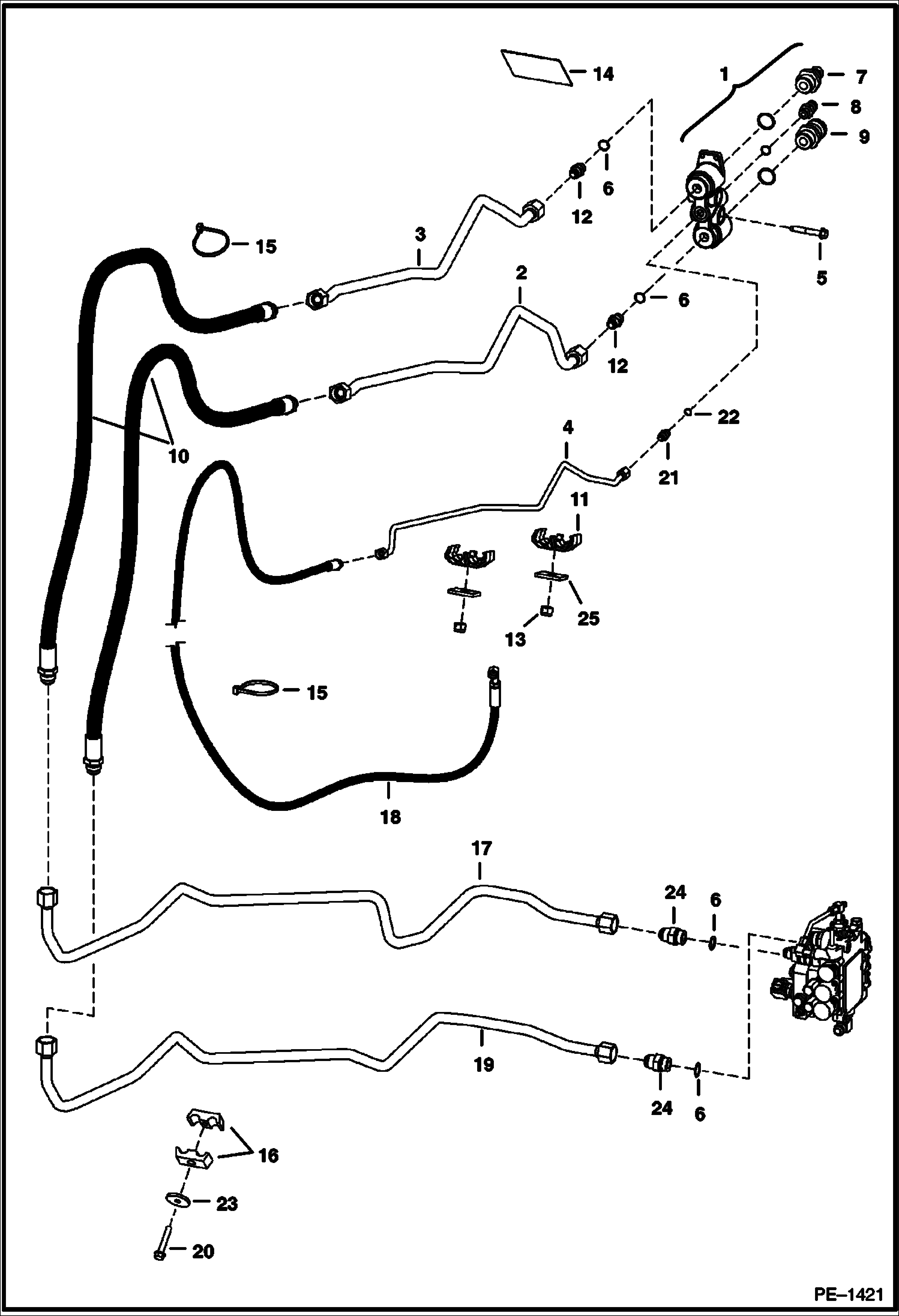

Схема запчастей Bobcat S-Series - AUXILIARY HYDRAULICS (W/Pressure Relief Coupler Block) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6678076

BLOCK coupler - Ref. 7-9 & (2) of Ref. 12

2

7102164

TUBE Was 6735115 - A

3

6735114

TUBE

4

7102163

TUBE Was 6735116 - A

5

84G3740

BOLT

6

79K12

O RING 10

7

6679837

COUPLER coupler - male - FF

7

6679841

SEAL blue

7

6680020

SEAL KIT (3) O-rings & (3) back-up washers

8

6679838

KIT, COUPLER male casedrain - W/valve, spring, seal & O-ring

8

6679840

SEAL blue

9

KIT coupler - female - FF - Order 6680018 coupler kit - Was 6679839 - A

9

6680018

COUPLER, KIT female - Use W/hydraulic breaker

9

6680020

SEAL KIT (3) O-rings & (3) back-up washers

10

6735138

HOSE W/cover

11

6717951

CLAMP

12

6679836

ADAPTER adapter - W/spring & Ref. 6

13

59D8

NUT 5

14

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

15

6624289

STRAP, TIE

16

6592506

CLAMP

17

6733683

TUBE

17

6735855

TUBE

18

HOSE NLA - 91'' (2311,4 mm) long - Was 6735139 - A

18

HOSE 99'' (2514,6 mm) long - Was 7102202 - B

18

7102202

HOSE 92'' (2336,8 mm) long

19

6731228

TUBE

19

6735854

TUBE

20

84G3736

BOLT

21

15KB0606

FITTING, HYD CONNECTOR W/Ref. 22

22

79K6

O RING 10

23

872229

WASHER

24

15KB1212

FITTING, HYD CONNECTOR W/Ref. 6

25

6553709

WASHER

Выбрано товаров: 34
