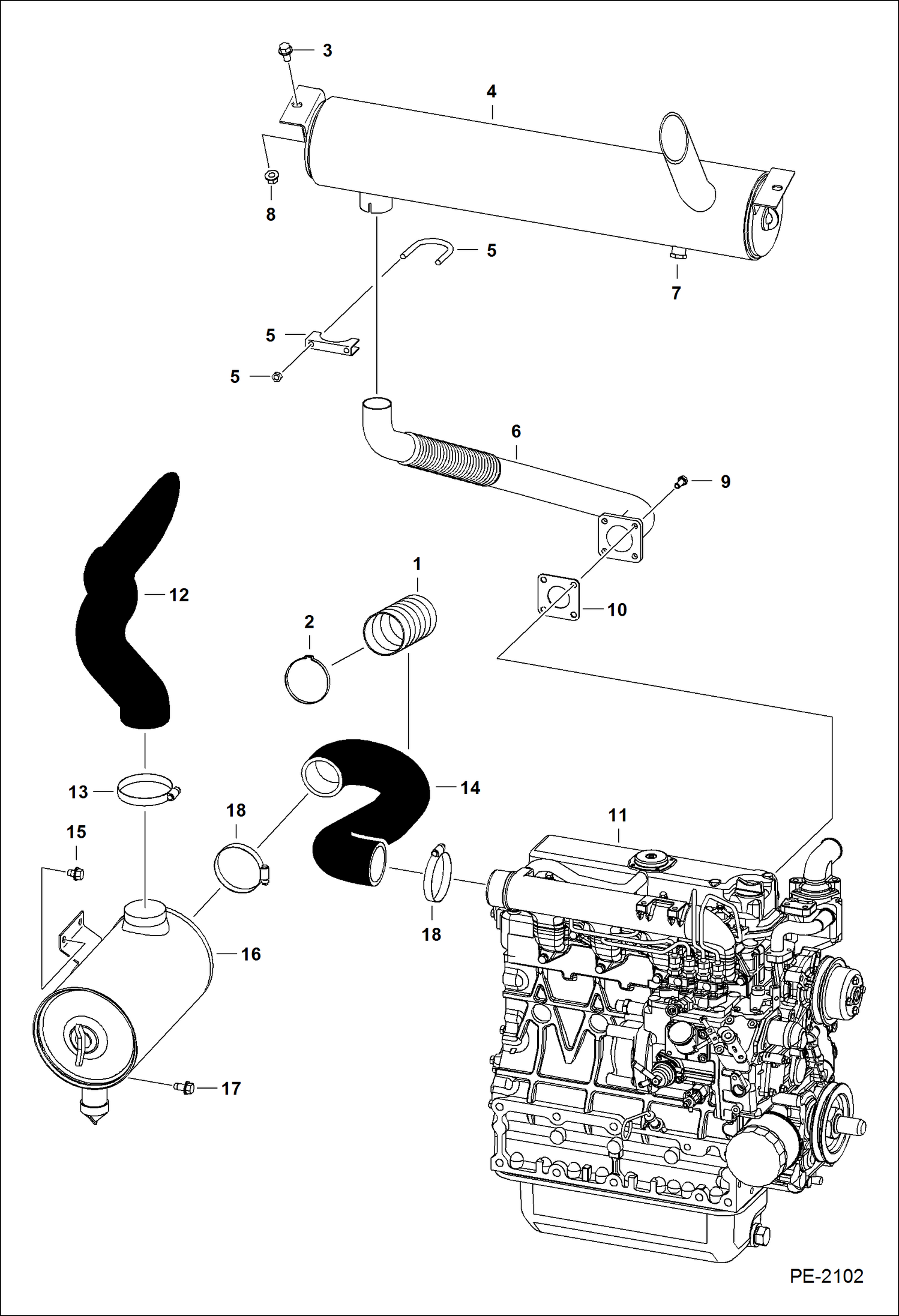

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Air Cleaner & Muffler) POWER UNIT

1

6706393

SHIELD 5'' (127 mm) long

1

6706394

SHIELD 203 mm (8'') long

2

6664004

CLAMP Use W/Ref. 1 (6706393 Shield)

2

6664004

CLAMP Use W/Ref. 1 (6706394 Shield)

3

35C612

BOLT

4

7100840

MUFFLER, EXHAUST Was 6671667 - A

5

6677363

CLAMP, FULL CIRCLE

6

6701151

PIPE

7

6661062

PLUG brass - 0.38''

8

83D6

NUT 5

9

6701123

SCREW

10

6727752

GASKET

11

ENGINE See Illustration ENGINE & GASKET KITS/ NA1529

12

6735349

HOSE Was 6718237

12

6737365

HOSE

13

42HL325

CLAMP Was 42H-44B - B

14

HOSE NLA - W/Ref. 1 & 2 - Was 6714889 - A

14

7100573

HOSE W/Ref. 1 (6706394 Shield) & (2) of Ref. 2

15

84G3708

SCREW

16

AIR CLEANER See Illustration AIR CLEANER/ B16478

17

84G3712

BOLT 5

18

42HL300

CLAMP Was 42H-32B - B
