Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Radiator Water Exchanger) (S/N 524614400 & Above, 524711900 & Above) POWER UNIT

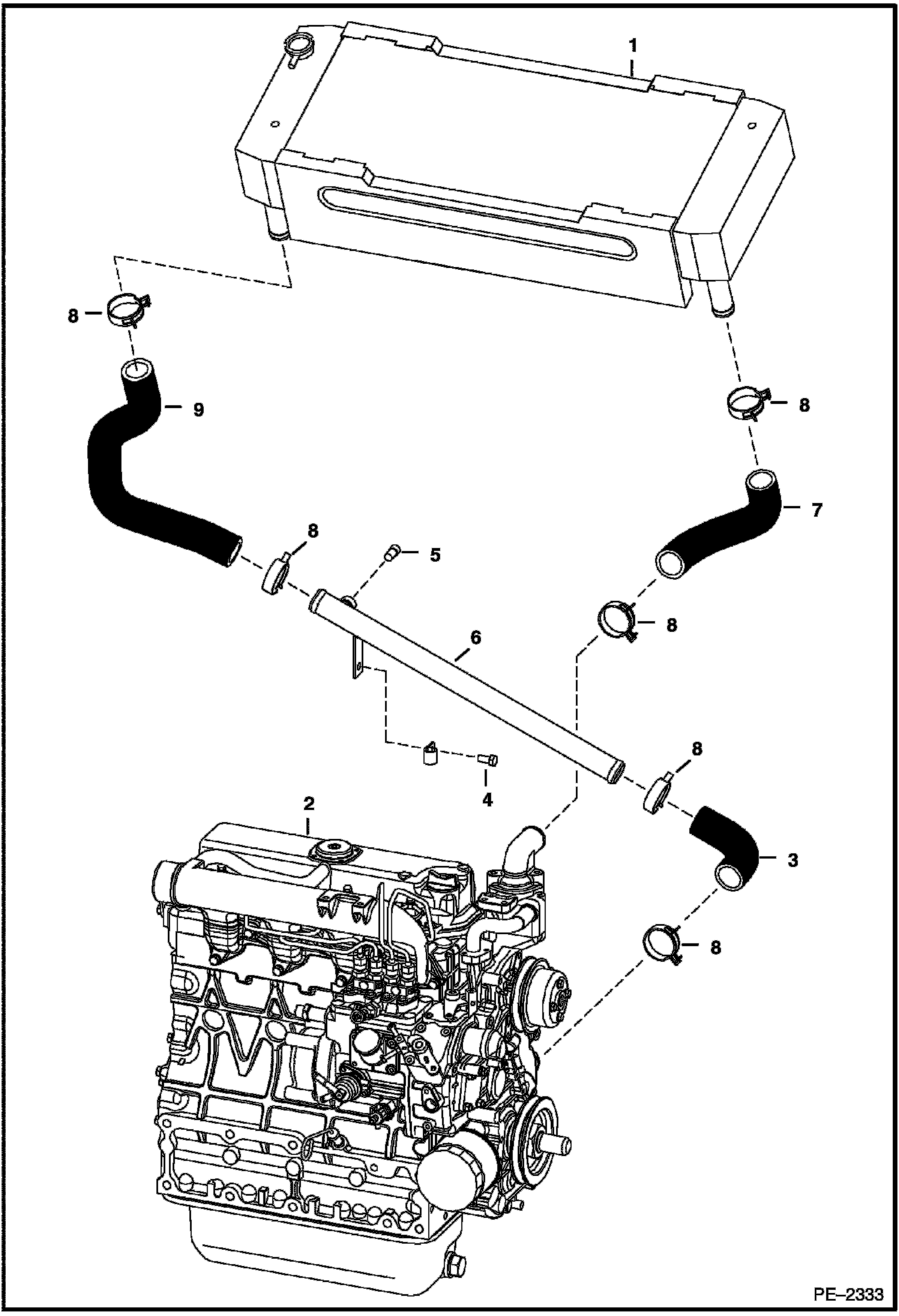

Схема запчастей Bobcat S-Series - ENGINE & ATTACHING PARTS (Radiator Water Exchanger) (S/N 524614400 & Above, 524711900 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

6736362

EXCHANGER, WATER RADIATOR

2

ENGINE See Illustration ENGINE & GASKET KITS/ NA1529

3

6576028

HOSE

4

17C612

BOLT 5

5

40K6

PLUG

6

6730999

TUBE ASSY W/Ref. 12

7

6578280

HOSE

8

5HM42

HOSECLAMP

9

6578279

HOSE

Выбрано товаров: 9
