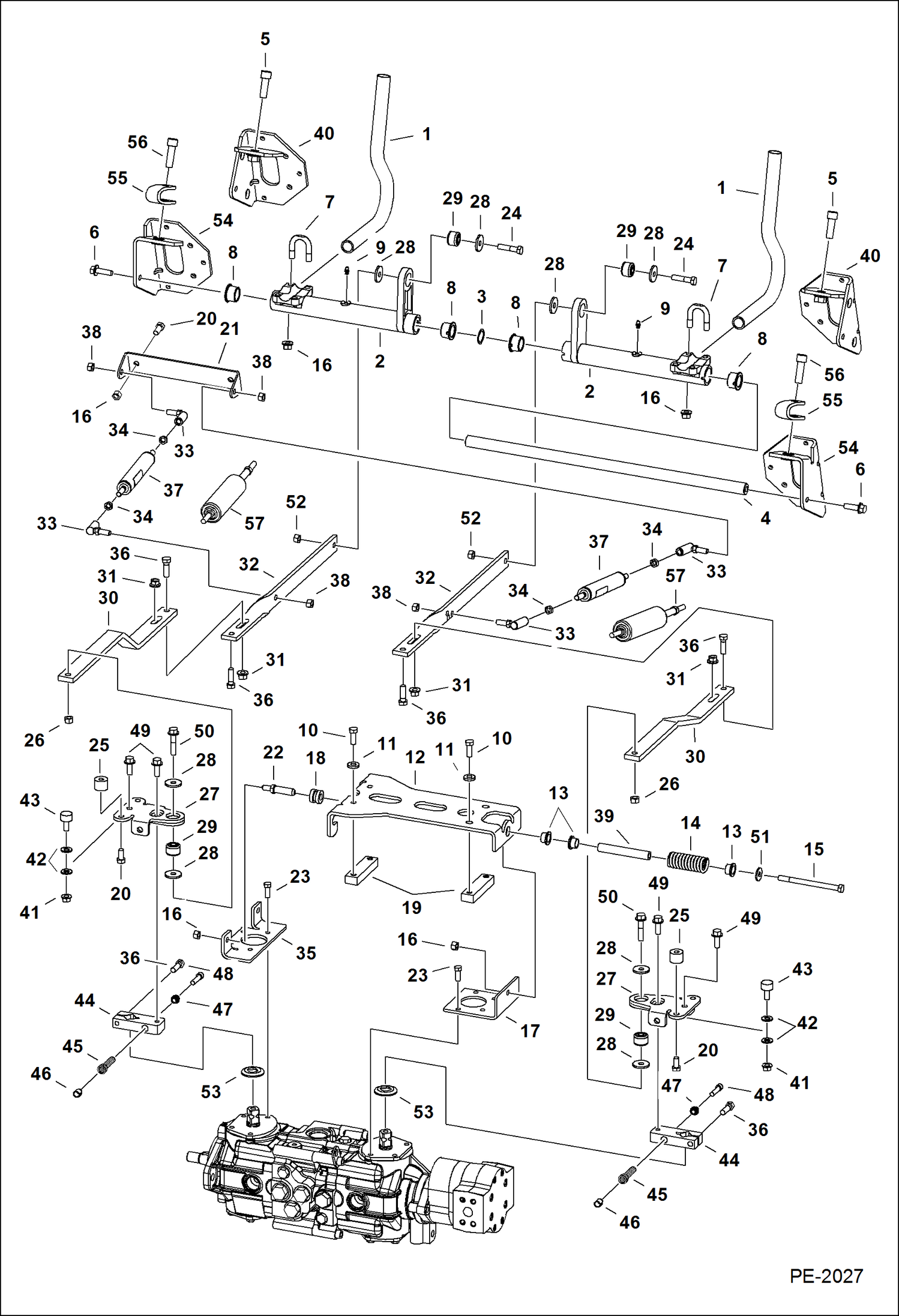

Запчасти Bobcat S-Series HAND CONTROLS (S/N 524614758 & Below, 524711991 & Below) HYDROSTATIC SYSTEM

1

6702543

LEVER, STEERING

2

BELLCRANK NLA - W/Notch for bushing tab - Use W/Ref. 9 (6518200 Grease Zerk) - Order 7110571 Bellcrank & Ref. 9 (10H000035B Grease Zerk) - Was 7101047 - A

2

7110571

BELLCRANK, STEERING W/notch for Ref. 8 (6703897 bushing) - Use W/Ref. 9 (10H35 grease zerk)

3

6599741

WASHER wave

4

6716545

ROD

5

93G824

BOLT Was 73G824 - A

6

45C620

BOLT

7

6732997

U-BOLT

8

6703879

BUSHING, PLASTIC W/tab

8

6673710

BEARING, NEEDLE needle - AHC

9

10H35

FITTING, GREASE 10 press fit

9

10H35

FITTING, GREASE 10 threaded

10

17C616

BOLT 5

11

6557831

WASHER

12

6734298

MOUNT

13

6715163

BUSHING, PRESS FIT

14

6701535

SPRING

15

17C680

BOLT

16

95D6

NUT Was 91D000006B - A

17

7109904

BRACKET Was 6734742 - A

18

6706098

GUIDE

19

6702716

BLOCK

20

17C612

BOLT 5

21

6706106

MOUNT damper - W/O mount for back-up alarm switch

22

6577058

PIN

23

1CM820

BOLT

24

17C628

BOLT

25

6711643

CAM

26

53D6

NUT Was 63D6 - B

27

LEVER NLA - Centering - Order 7103710 Lever, 7103708 Bracket, 7103711 Bolt & 7105223 Spacer - Was 6734429 - A

28

6737388

WASHER

29

6685060

BUSHING, TORSION

30

LINK NLA - 14.38'' (365,3 mm) long - Order 7139453 link & Ref. 32 (7139420 link) - Was 6737389 - A

30

7139453

LINK 276,4 mm (10.88'') long

31

83D6

NUT 5

32

LINK NLA - 19.57'' (497,1 mm) long - Order 7139420 link & Ref. 30 (7139453 link) - Was 7107986 - A

32

7139420

LINK 586 mm (23.07'') long

33

6599744

BALL JOINT

34

8D6

NUT 5

35

7109905

BRACKET Was 7103314 - A

36

17C620

BOLT

37

GAS SPRING NLA - Japan Option - Order Ref. 57 - Was 6649551 - A

38

62D6

NUT 5

39

6715164

SLEEVE, SPRING

40

BRACKET R.H. - Order Ref. 54-56 - Was 6733022 - A

40

BRACKET L.H. - Order Ref. 54-56 - Was 6733024 - A

41

98D6

NUT

42

25E17

WASHER 5

42

7100699

WASHER AHC - .24 in. Thick

43

6673789

BEARING roller - AHC

44

BRACKET NLA - centering - Order 7103710 Lever, 7103708 Bracket, 7103711 Bolt & 7105223 Spacer - Was 6734299 - A

45

6734433

SPRING

46

ROLL PIN NLA - Was 4JM01214B - A

47

INSERT NLA - threaded - Use W/Ref. 44 (NLA/ 6734299 bracket) - Was 6737378 - A

48

7103711

BOLT Was 74G520 - A

49

49C616

BOLT

50

17C628

BOLT Was 49C628 - B

51

6563914

WASHER

52

53D6

NUT

53

6687913

SEAL

54

7128600

BRACKET RH

54

7128601

BRACKET LH

55

7121779

PAD

56

73G828

BOLT

57

7188108

GAS SPRING
