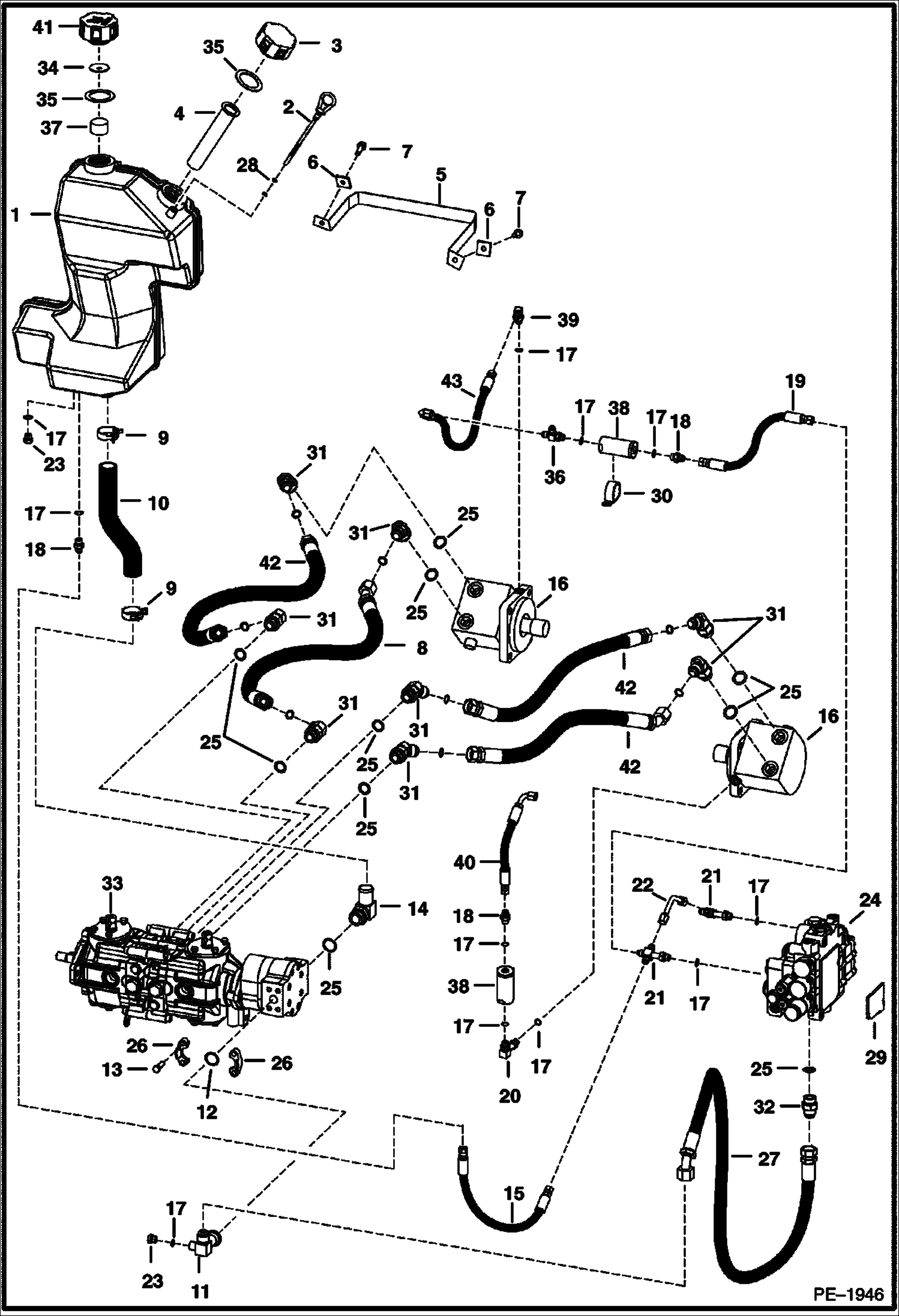

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

7108991

TANK Was 6732278 - A

2

6577459

DIPSTICK W/Ref. 28

3

6728149

CAP , HYD NON VENTED breather - Was 6532508 - A

4

7120881

SCREEN, FILLER Was 6569219 - A

5

6734272

BAND

6

6559447

WASHER

7

84G3712

BOLT 5

8

6737501

HOSE mega seal

9

5HM42

HOSECLAMP constant tension

10

6732935

HOSE 1.25'' (31,8 mm) I.D.

11

7103952

TEE split flange - Was 6734048 - A

12

55K214

O-RING

13

17C620

BOLT

14

6715191

ELBOW W/ O-ring

14

79K16

O RING 10

15

6735840

HOSE

16

MOTOR See Illustration HYDROSTATIC MOTOR/ C3431

17

79K6

O RING 10

18

15KB0606

FITTING, HYD CONNECTOR W/Ref. 17

19

6717385

HOSE 14.5''(368,3 mm) long

20

6715190

ELBOW W/Ref. 17

21

6817553

CROSS W/Ref. 17 - Was 6805241 - A

22

6577690

TUBE

23

24K5

PLUG W/Ref. 17

24

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17114

25

79K12

O RING 10

26

19J12

CLAMP

27

6734246

HOSE

27

6737504

HOSE

27

6737507

HOSE See Illustration POWER BOB-TACH KIT/ PE1895 power bobtach option

28

25K20010

O RING 10

29

6734420

COVER Side of Main Frame

30

30H79

CLAMP

31

6737453

ELBOW W/Ref. 25 - mega seal

32

15KB1212

FITTING, HYD CONNECTOR W/Ref. 25

33

PUMP See Illustration HYDROSTATIC PUMP/ B22521

34

6701552

BAFFLE

35

6700631

GASKET

36

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 17

37

6703427

FOAM FILTER

38

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

39

17KB0606

FITTING W/Ref. 17

40

HOSE NLA - 9.5'' (241,3 mm) long - W/short elbow - Was 6735839 - A

40

7100142

HOSE 10'' (254 mm) long W/long elbow

41

6577785

CAP breather - W/Ref. 17

42

6737500

HOSE mega seal

43

6702079

HOSE
