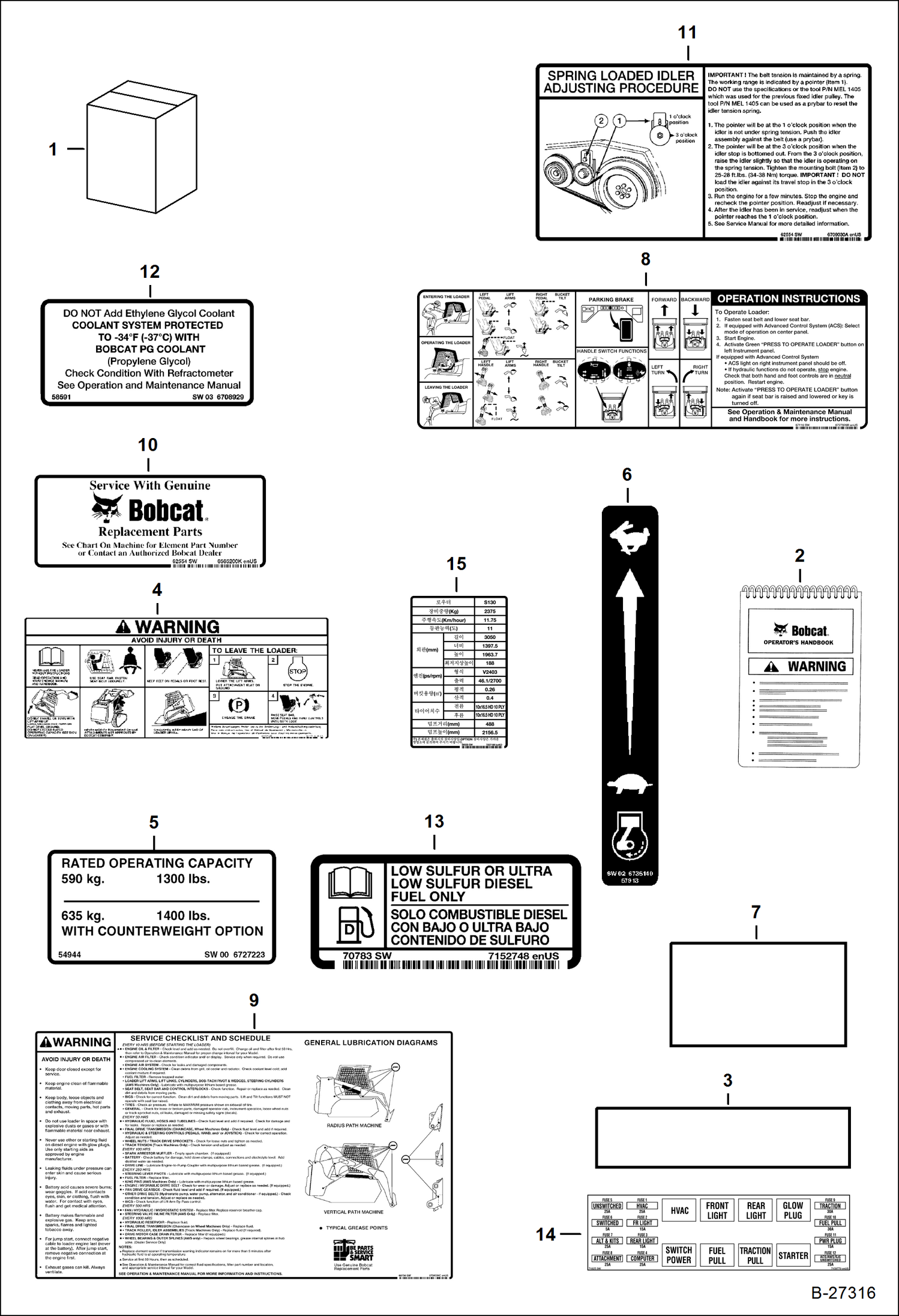

Запчасти Bobcat S-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6904993

KIT, DECAL

1

7120273AR

KIT, DECAL TRANSLATION

1

7120273BR

KIT, DECAL TRANSLATION

1

7120273JP

KIT, DECAL TRANSLATION

1

7163318AR

KIT, DECAL TRANSLATION decal

1

7163318BR

KIT, DECAL TRANSLATION decal

1

7163318CA

KIT, DECAL TRANSLATION Was 7163318JP - D

2

6986651

OHB, W WIRE ROPE not in kit - Was 6902600 - B,D

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

2

17C512

BOLT 5

2

61D5

NUT

3

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

4

6728539

DECAL

5

6727223

DECAL capacity

6

6735140

DECAL, THROTTLE

7

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

8

6727926

DECAL, OPERATION hand & foot controls - not in kit

9

6734534

DECAL, SERVICE service checklist & schedule

10

6565200

DECAL, FILTER not in kit

11

6709030

DECAL belt tension - spring loaded idler

12

6708929

DECAL, COOLANT propylene glycol

13

7152748

DECAL, FUEL DIESEL low sulfur

14

7117407

DECAL, FUSE inside fuse cover - 51 x 178 mm (2 x 7'')

14

7159779

DECAL fuse relay - 51 x 178 mm (2 x 7'')
