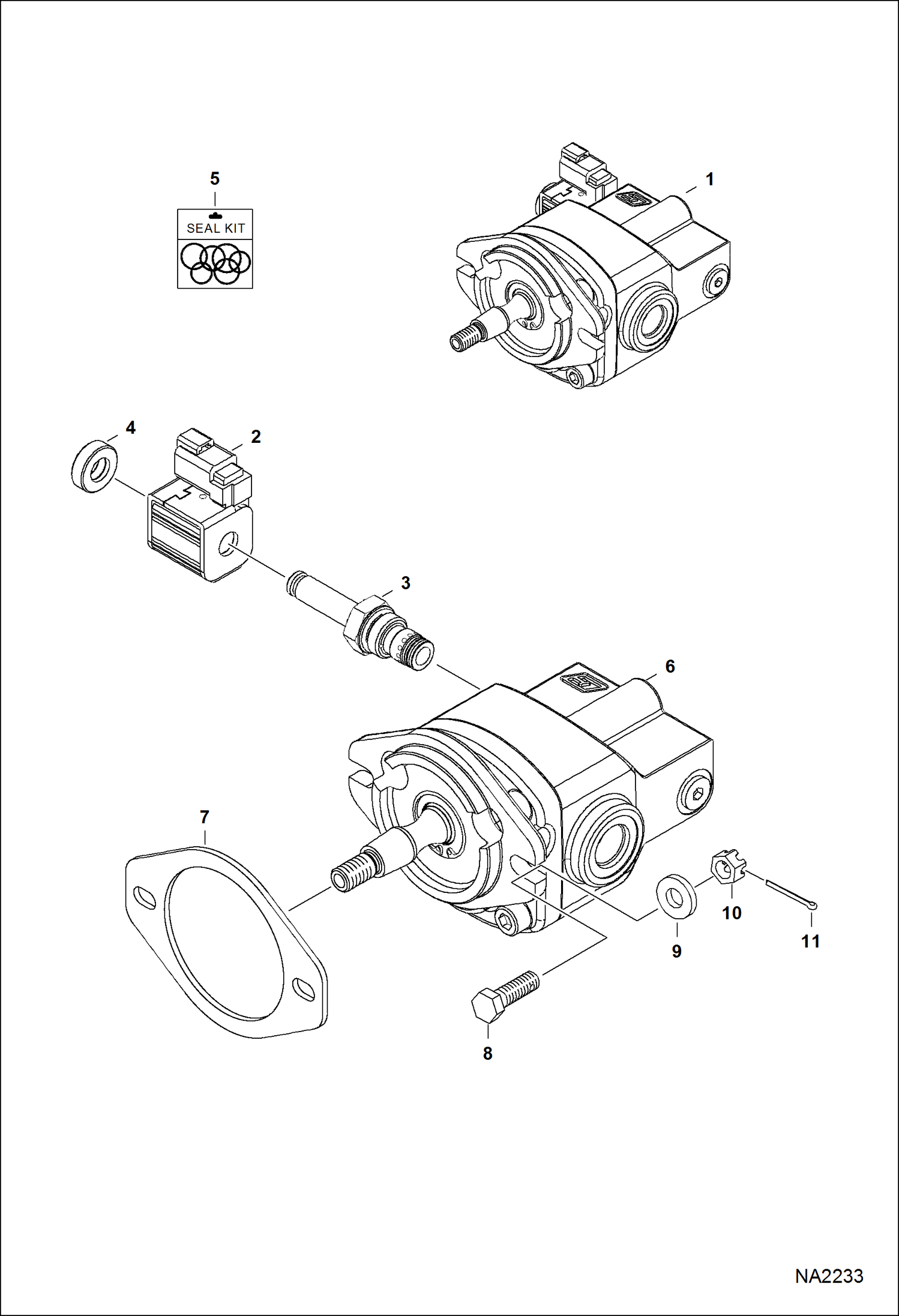

Запчасти Bobcat S-Series COOLING FAN MOTOR (Cast Iron) (S/N A3KY30001 & Above, AU4Y11001 & Above) HYDROSTATIC SYSTEM

1

7164323

MOTOR, HYD COOLING FAN cast iron - Ref. 2-7 - Also Order (2) of Ref. 11

2

6698065

COIL, CPP012H W/metal cover

3

7010979

VALVE, CHECK variable fan speed - W/Ref. 4 - Was 6698064 - A

3

6698591

KIT, SEAL

4

NUT, COIL SOLENOID NLA - W/pre-applied thread locker - Was 6698352 - A

5

KIT, SEAL NSS - Order Ref. 1

6

MOTOR, HYD COOLING FAN NSS - Order Ref. 1

7

6698062

GASKET, MOTOR

8

7147826

BOLT, CROSS DRILLED

9

25E17

WASHER 5 0.05'' thick

9

6557831

WASHER 0.15'' thick - 0.88'' OD

10

3D6

NUT

11

1F316

PIN
