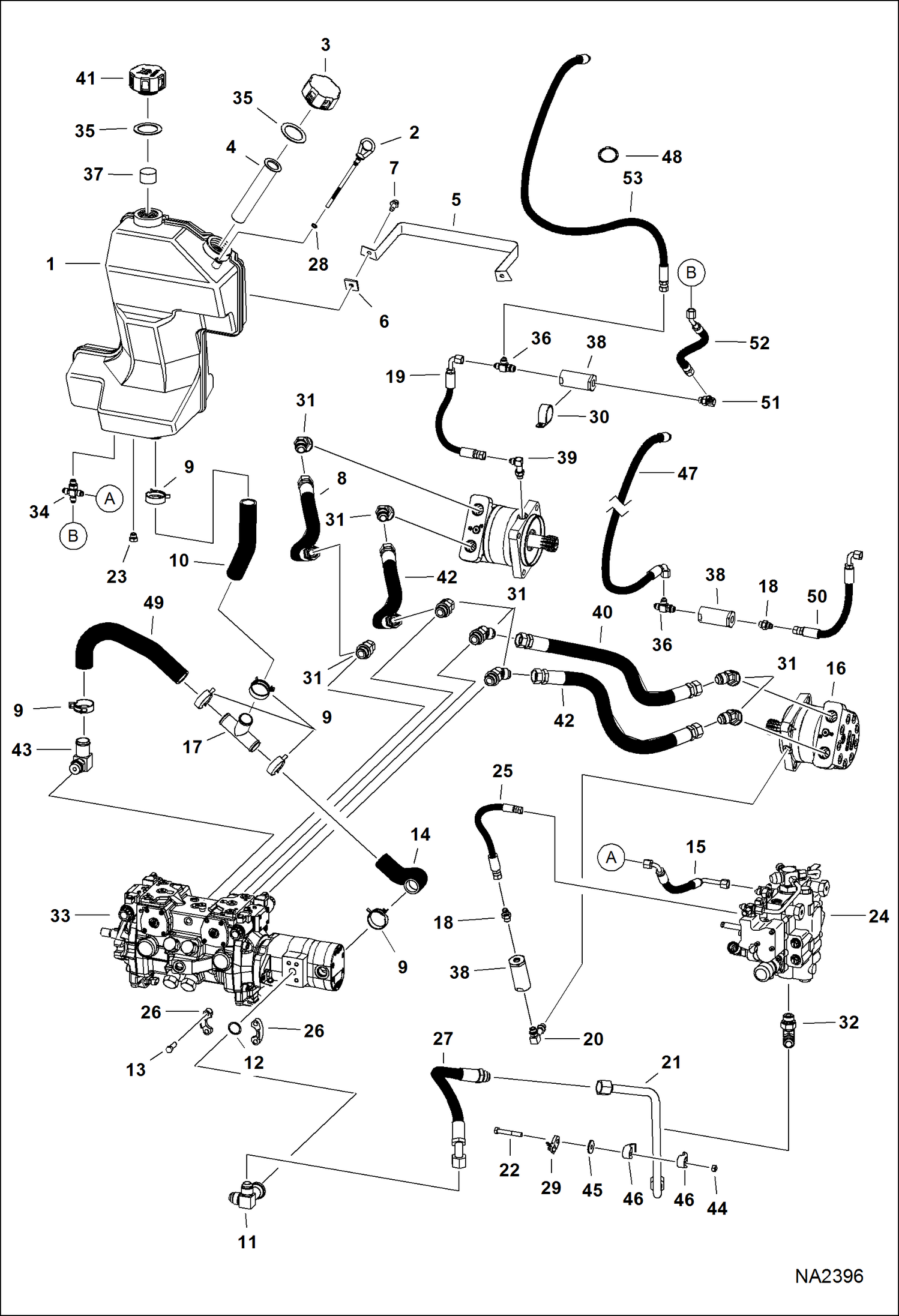

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Selectable Joystick Controls) HYDROSTATIC SYSTEM

1

7108991

TANK

2

6577459

DIPSTICK W/Ref. 28

3

6728149

CAP , HYD NON VENTED breather

4

7120881

SCREEN, FILLER Was 6569219 - A

5

6734272

BAND

6

6559447

WASHER

7

84G3712

BOLT 5

8

6737501

HOSE mega seal

9

5HM42

HOSECLAMP constant tension

10

7121823

HOSE 32 mm (1.25'') ID

11

7106040

ELBOW split flange - one leg

11

7113262

ELBOW split flange - two leg - Use W/hydraulic muffler hose

12

55K214

O-RING

13

17C620

BOLT

14

7121824

HOSE

15

7167245

HOSE, HYD ASSY Was 7113305 - B

16

6682034

MOTOR See Illustration HYDROSTATIC MOTOR/ PE2620

17

6817459

FITTING

18

15KB0606

FITTING, HYD CONNECTOR

18

79K6

O RING 10

19

7106215

HOSE 508 mm (20'') long - Use W/Ref. 18, 47 & 50

19

7165208

HOSE, HYD ASSY 355,7 mm (14'') long - Use W/Ref. 51-53

20

6715190

ELBOW

20

79K6

O RING 10

21

7100241

TUBE

22

17C640

BOLT 5

23

24K5

PLUG

23

79K6

O RING 10

24

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2734

25

6542521

HOSE

26

19J12

CLAMP

27

7113308

HOSE

28

25K20010

O RING 10

29

6679034

MOUNT harness

30

30H79

CLAMP

31

6737453

ELBOW mega seal

31

79K12

O RING 10

32

7101797

ELBOW

32

79K12

O RING 10

33

PUMP

34

6578209

TEE

34

79K6

O RING 10

35

6700631

GASKET

36

21KB0606

FTG HYD STRAIGHT TEE

36

79K6

O RING 10

37

6703427

FOAM FILTER

38

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527 - 90 micron

39

6812815

FITTING

39

79K6

O RING 10

40

7165207

HOSE, HYD Was 7110834 - B

41

6727475

CAP, OIL HYD

42

6737500

HOSE mega seal

43

7121825

ELBOW

43

79K12

O RING 10

44

85D6

NUT, 5

45

619021

WASHER, 5

46

7100462

CLAMP

47

7101860

HOSE 90 degree

48

6624289

STRAP, TIE

49

7121822

HOSE

50

7106215

HOSE 90 degree

51

17KB0606

FITTING

52

7106205

HOSE 45 degree

53

7165210

HOSE, HYD ASSY straight fitting
