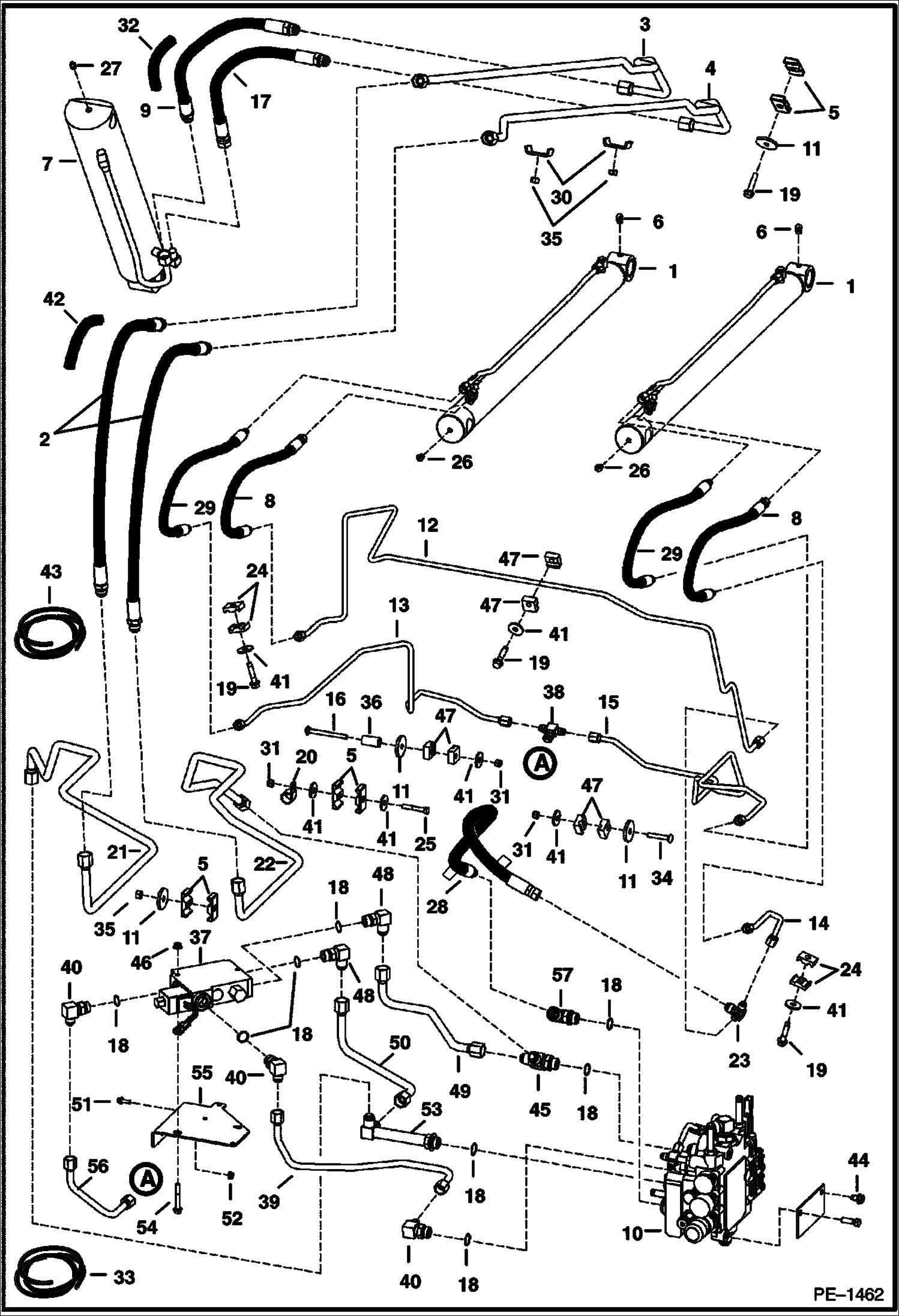

Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (W/Bucket Positioning Valve) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ PE3175 LIFT

2

6577669

HOSE

3

6733356

TUBE

4

6733357

TUBE

5

6701893

CLAMP

6

12H15

FITTING, GREASE 5

7

CYLINDER See Illustration TILT CYLINDER/ TS1098 TILT

8

6727686

HOSE

9

6704335

HOSE

10

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17114

11

872229

WASHER

12

6727635

TUBE

13

6727634

TUBE

14

6727633

TUBE

15

6733271

TUBE

16

37C556

BOLT

17

6704336

HOSE

18

79K10

O RING 10

19

84G3728

BOLT

20

30H46

CLIP

21

6734377

TUBE

22

6734376

TUBE

23

6729903

TEE W/Ref. 18

24

6726277

CLAMP

25

17C532

BOLT 5

26

11H15

GREASE FITTING

27

10H25

FITTING, GREASE 5

28

6729905

HOSE

29

6727687

HOSE

30

6502203

CLAMP

31

59D5

NUT 5

32

COVER NLA - 18'' (457,2 mm) - Order Ref. 33

33

6656155

HOSE COVER bulk - sold per foot

34

37C532

BOLT

35

95D6

NUT

36

6714428

SPACER

37

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 NLA - order 6673959 valve - Was 6666341 - A

38

6727659

TEE

39

6727628

TUBE

40

17KB0810

FITTING, HYD ELBOW W/Ref. 18

41

619021

WASHER, 5

42

COVER NLA - 36''(914,4 mm) - Order Ref. 43

43

6705749

SHIELD bulk - sold per foot

44

17C620

BOLT

45

21KB1010

FITTING, HYD TEE W/Ref. 18

46

57D5

NUT

47

6727707

CLAMP

48

17KB1010

FITTING, HYD ELBOW W/Ref. 18

49

6727629

TUBE

50

6727626

TUBE

51

35C412

BOLT

52

55D4

NUT

53

6730142

TEE

54

35C536

BOLT

55

6704833

BRACKET

56

6727627

TUBE

57

6814531

ELBOW W/Ref. 18
