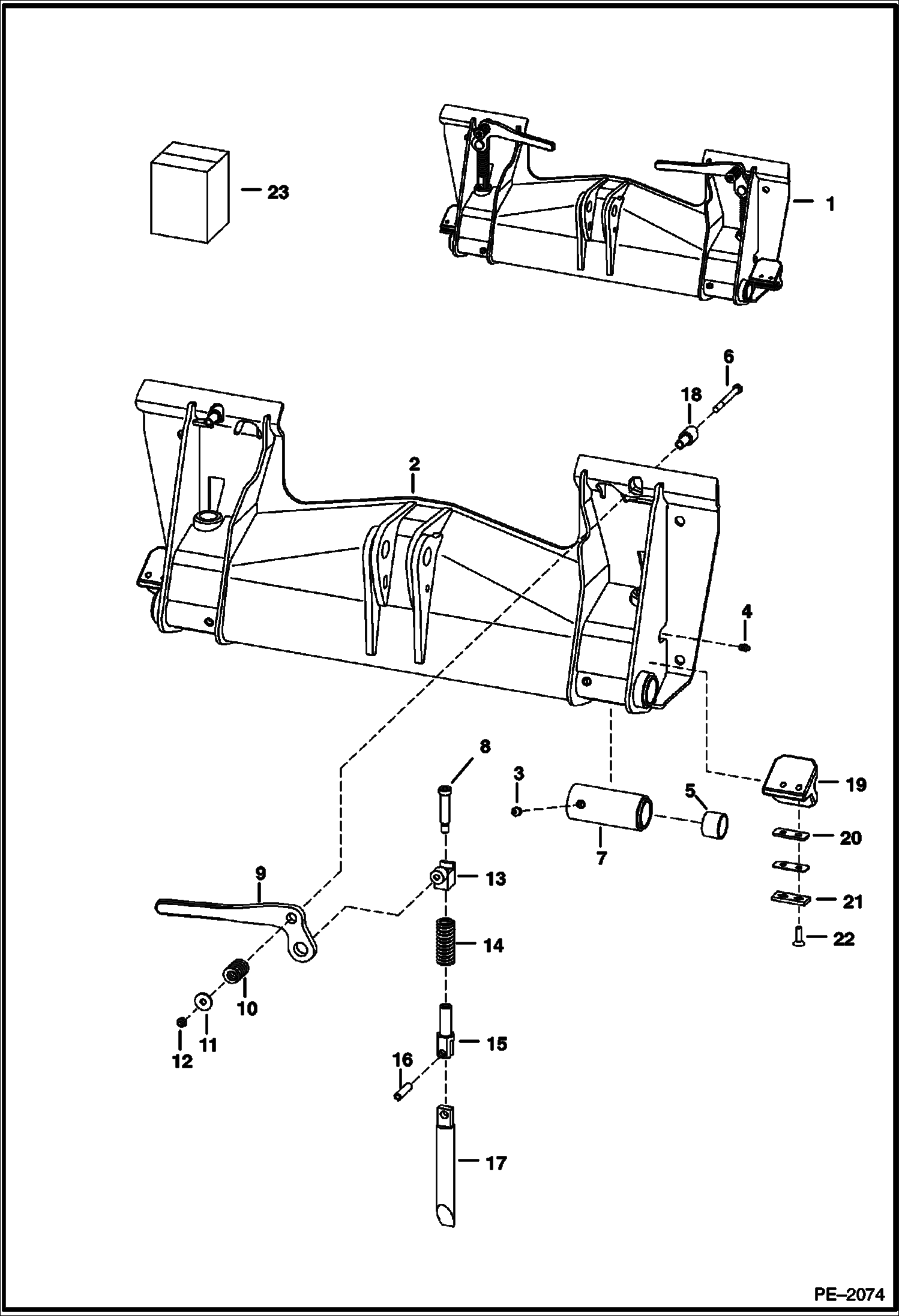

Запчасти Bobcat S-Series BOB-TACH MAIN FRAME

1

6709215

BOB-TACH See Illustration DECALS/ B27316 - Also Order 6561383 decal - W/Ref. 5 & 7 - 63,5 mm (2.5'') OD weld-on bushings

2

FRAME NLA

3

743332

FITTING, GREASE 5

4

10H35

FITTING, GREASE 10

5

6730997

BUSHING, WELD-ON press fit

6

17C660

BOLT

7

6731979

BUSHING weld on - Also Order Ref. 5

8

6728473

BOLT, SHOULDER pre-applied thread locker

9

6702904

LEVER, BOB-TACH RH

9

6702903

LEVER, BOB-TACH LH

10

6713040

SPRING

11

619021

WASHER, 5

12

85D6

NUT, 5

13

6704240

PIVOT ASSY. 0.75'' long pin - not in kit

13

6731119

PIVOT, WEDGE 50 mm (1.95'') long pin - in kit

14

6578253

SPRING, COMPRESSION

15

6704248

PIVOT, WEDGE

16

14J5032

PIN, STRAIGHT

17

6737191

WEDGE

18

6702958

BUSHING, WELD-ON

19

6704600

STOP RH - weld on - shown

19

6704601

STOP LH - weld on - not shown

20

6707514

SHIM 0.06

20

6579106

SHIM 0.125

21

6579104

SHIM 0.25

22

9G620

BOLT 5

23

6724775

LEVER KIT RH - Bob-Tach - Ref. 6 & 8-17

23

6724776

LEVER KIT LH - Bob-Tach - Ref. 6 & 8-17
