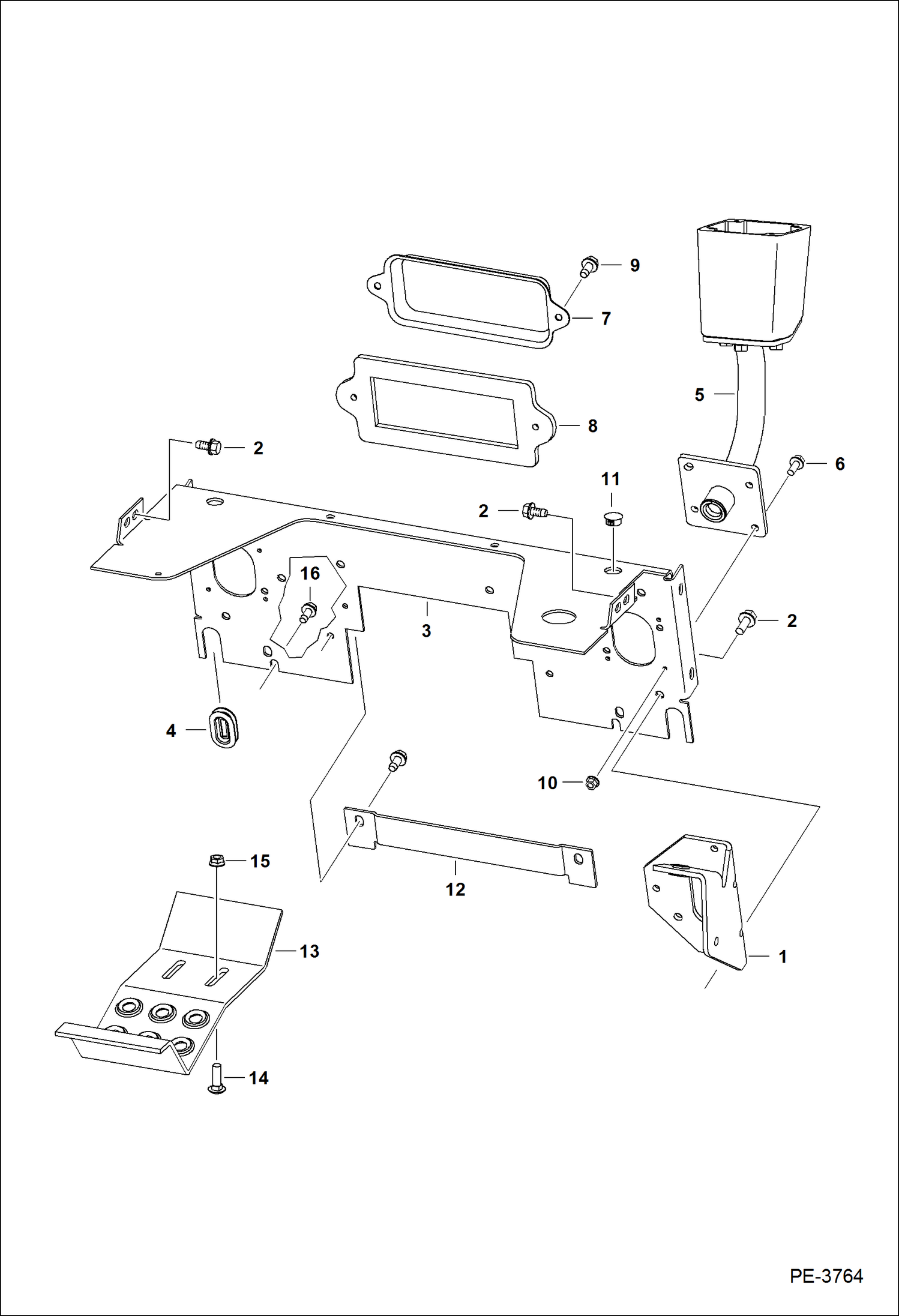

Запчасти Bobcat S-Series PANELS (Selectable Joystick Controls) MAIN FRAME

1

BRACKET See Illustration HAND CONTROLS/ PE2366

2

84G3712

BOLT 5

3

7139183

SHIELD

4

6714726

GROMMET

5

HANDLE See Illustration CONTROLS ELECTRICAL/ PE3374 See Illustration CONTROLS ELECTRICAL/ PE3744 - NLA - joystick

6

35C512

BOLT

7

6716621

COVER Was 7176546 - A

8

6725302

GASKET

9

84G3112

BOLT 5

10

89D5

NUT

11

6648348

PLUG 0.81'' dia hole

12

6717890

COVER

13

6712365

STEP

14

37C620

BOLT

15

57D6

NUT 5

16

84G3708

SCREW
