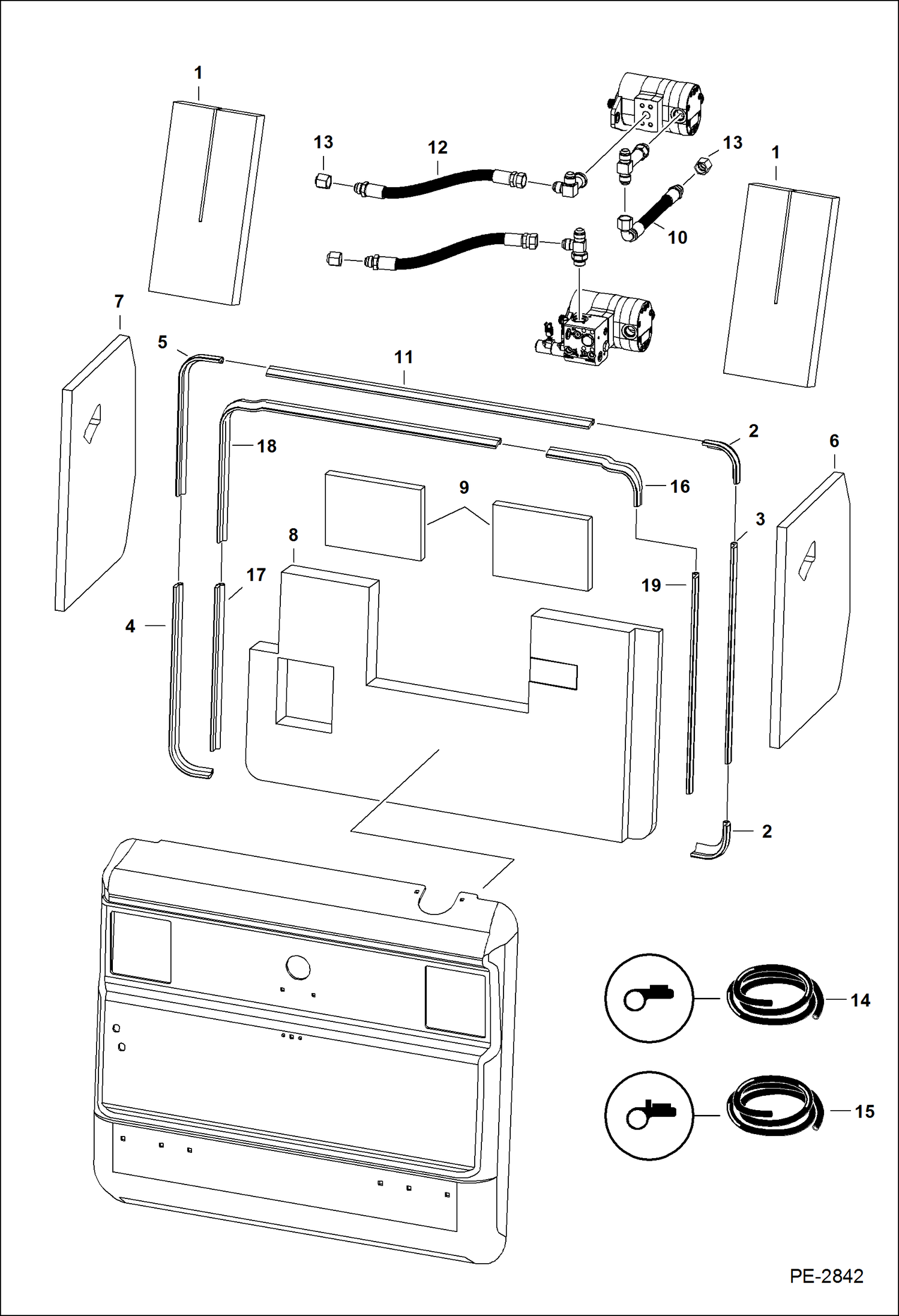

Запчасти Bobcat S-Series SOUND/NOISE REDUCTION OPTION (Bystander) ACCESSORIES & OPTIONS

1

7103227

INSULATION brace

2

SEAL NLA - 6.50'' (165,1 mm) long - Order Ref. 14

3

SEAL NLA - 22.10'' (561,3 mm) long - Order Ref. 15

4

SEAL NLA - 22.10'' (561,3 mm) long - Order Ref. 14

5

SEAL NLA - 17.60'' (447 mm) long - Order Ref. 14

6

7108992

INSULATION upright

7

7108993

INSULATION upright

8

7166676

INSULATOR tailgate - Was 7109317 - A

9

7109318

INSULATOR upper tailgate

10

7110429

HOSE hydraulic muffler - 340 mm (13.38'') long

10

7217289

HOSE, HYD hydraulic muffler - 377,2 mm (14.85'') long

11

SEAL NLA - 27.25'' (692,15 mm) long - Order Ref. 14

12

7112651

HOSE 386 mm (15.18'') long

12

7217290

HOSE, HYD 428 mm (16.85'') long

13

36K8

CAP

14

7108716

SEAL, BULK/FOOT bulk - sold per foot

15

7108677

SEAL - BULK/FT bulk - sold per foot

16

SEAL NLA - 8.65'' (219,71 mm) long - Order Ref. 14

17

SEAL NLA - 16.75'' (425,45 mm) long - Order Ref. 14

18

SEAL NLA - 45.25'' (1149,35 mm) long - Order Ref. 14

19

SEAL NLA - 21.25'' (539,75 mm) long - Order Ref. 15
