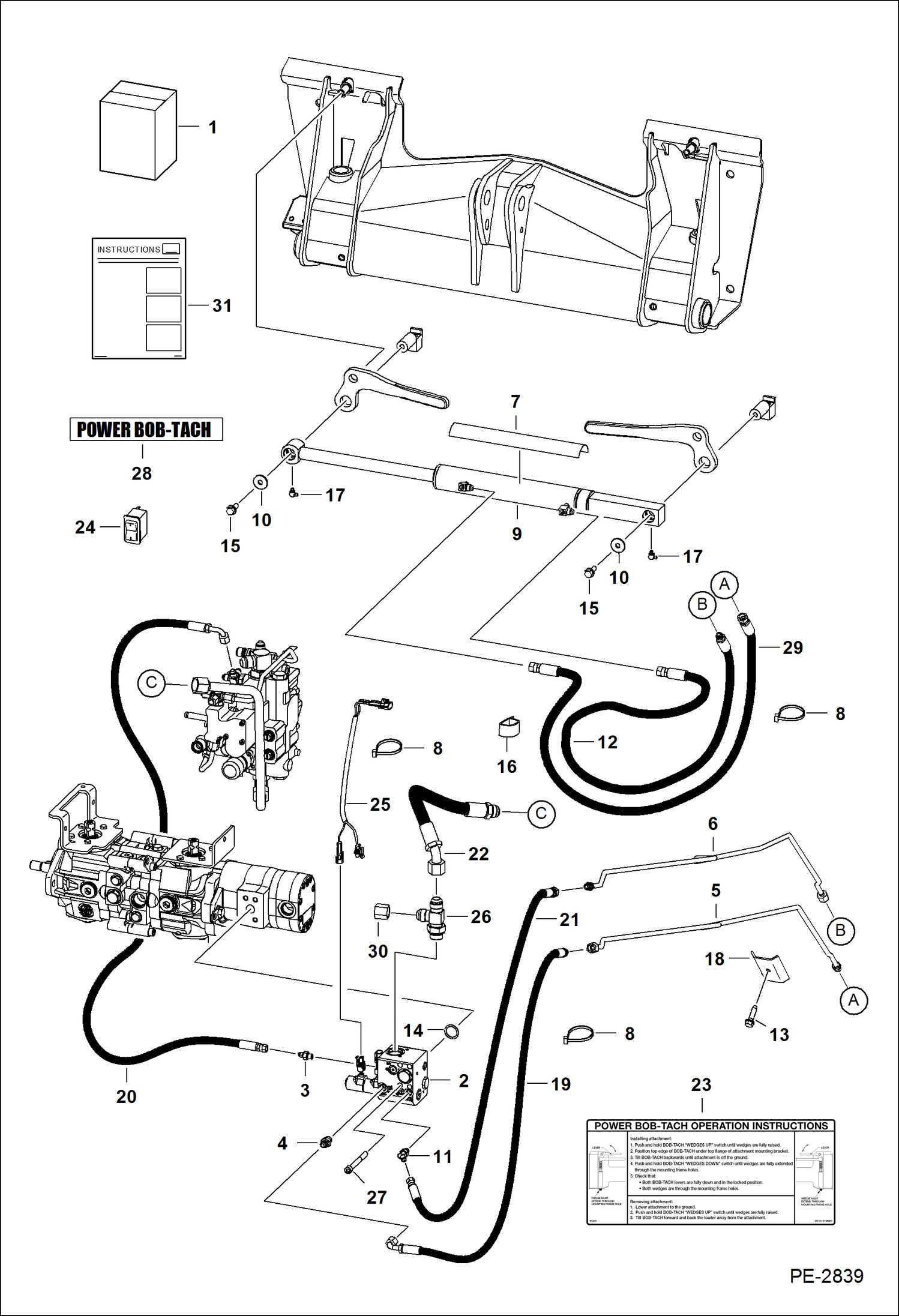

Запчасти Bobcat S-Series POWER BOB-TACH KIT ACCESSORIES & OPTIONS

1

7107387

KIT, POWER BOB-TACH Ref. 2-31 - if loader is not equipped W/deluxe cab accessories harness, heater, SJC, ACS, cab enclosure door kit, rear wiper or any of the following cab harness connected rotating

1

7107387

KIT, POWER BOB-TACH Ref. 2-31 - if loader is not equipped W/deluxe cab accessories harness, heater, SJC, ACS, cab enclosure door kit, rear wiper or any of the following cab harness connected rotating

1

7157586

KIT, BOB-TACH POWER Ref. 2-22 & 24-31

2

VALVE See Illustration POWER BOB-TACH/ MS1835

3

15KB0404

FTG HYD S Connector

4

15KB0606

FITTING, HYD CONNECTOR

5

6737172

TUBE

5

7157582

TUBELINE, HYD

6

6737173

TUBE

6

7157583

TUBELINE, HYD

7

6555341

SAFETY TREAD

8

6624289

STRAP, TIE

9

CYLINDER See Illustration POWER BOB-TACH/ PE1064

10

619021

WASHER, 5

11

18KB0404

FTG HYD ELBOW 45

12

7101738

HOSE Use W/Ref. 9 - base end fitting is 0.562'' - 18 UNF

12

7156766

HOSE, HYD ASSY Use W/Ref. 9 - base end fitting is 0.75'' - 16 UNF

13

84G3728

BOLT Was 84G3724 - B

14

55K214

O-RING

15

35C616

BOLT 5

16

31H42

CLIP

17

12H25

FITTING

18

6719884

BRACKET

19

6806987

HOSE

20

7114318

HOSE 495 mm (19.5'') long - route under hydrostatic pump

21

6731082

HOSE

22

7110367

HOSE 1143 mm (45'') long - Was 7115849 - A

23

6725907

DECAL, OPERATION power Bob-Tach

24

6676732

SWITCH vertical

25

7165185

HARNESS Was 7112290 - A

26

21KB1212

FITTING, HYD TEE

27

73G656

SCREW

28

6719888

DECAL power Bob-tach - not in kit

29

6725198

HOSE

30

36K8

CAP

31

6904715

INSTRUCTIONS Was 6902815 - B,D

31

6986959

INSTRUCTIONS
