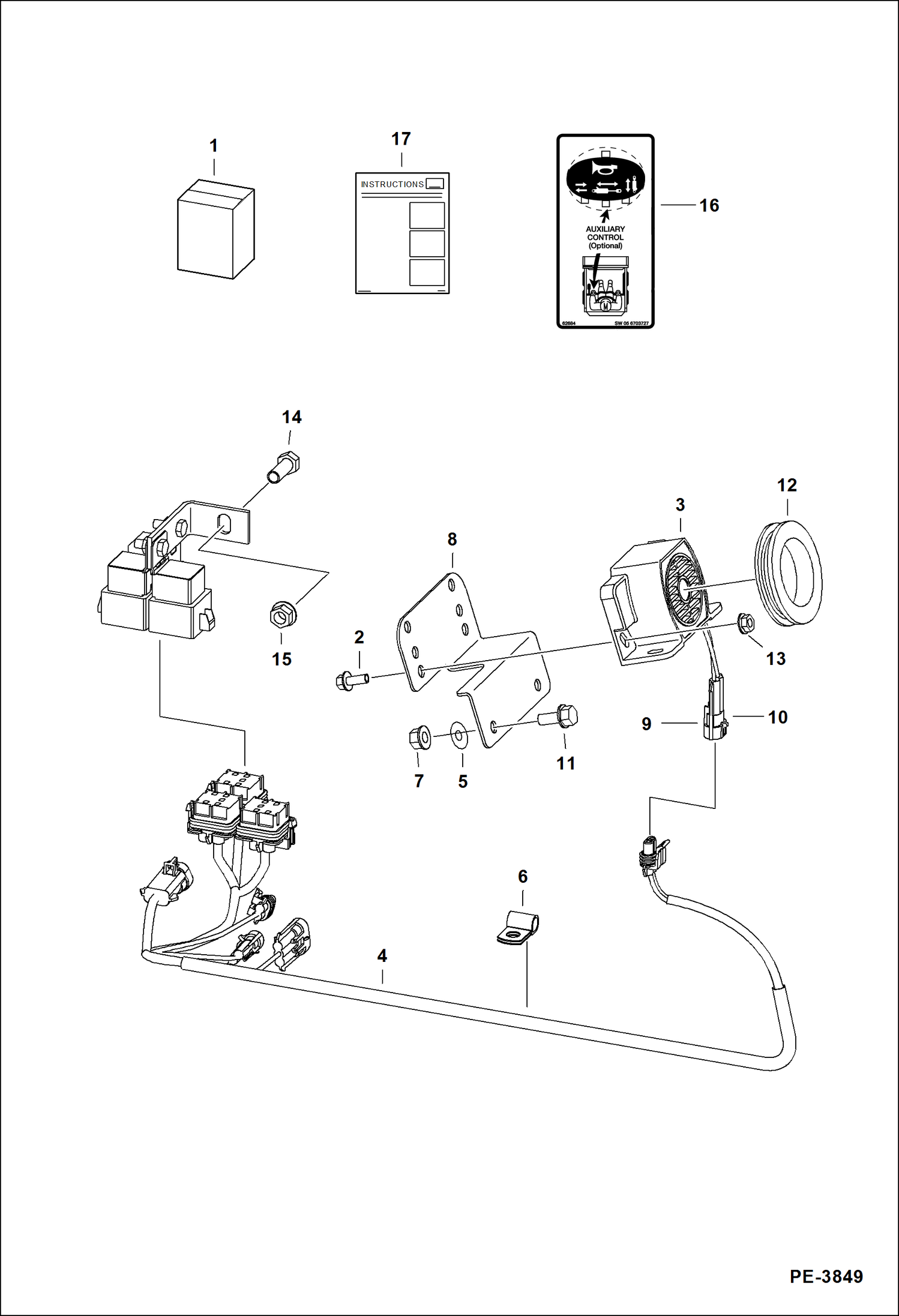

Запчасти Bobcat S-Series HORN KIT (Selectable Joystick Controls) ACCESSORIES & OPTIONS

1

7140147

HORN KIT Ref. 2-17

2

17C410

BOLT 10

3

7001044

HORN, ALARM Was 6675099 - A

4

7152661

HARNESS, HORN 1206,5 mm (47.5'') long - Was 7133922 - A

5

25E13

WASHER 5

6

30H23

CLAMP

7

83D5

NUT 5

8

6733970

MOUNT

9

6641180

LOCK Use W/ 2-pin connector

10

6641179

CONNECTOR 2-pin

11

35C512

BOLT

12

6577545

GROMMET

13

83D4

NUT 10

14

17C616

BOLT 5

15

97D6

NUT 10

16

6703727

DECAL not in kit

17

6901691

INSTRUCTIONS
