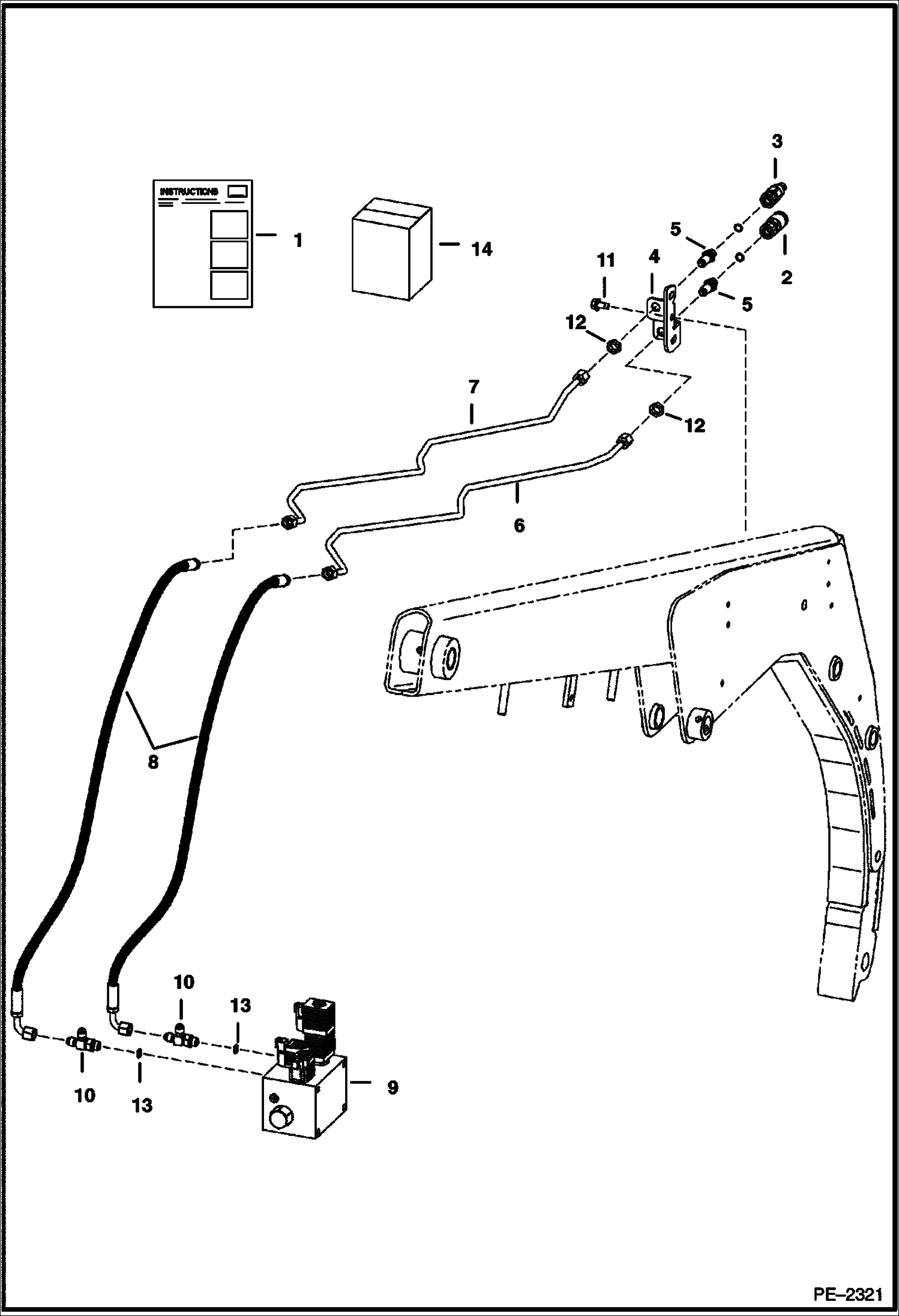

Запчасти Bobcat S-Series FRONT AUXILIARY (RH Kit) ACCESSORIES & OPTIONS

1

7104852

KIT, RH FRONT AUX requires rear auxiliaries

2

6667803

COUPLER, FF FEMALE

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6711674

MOUNT

5

6716089

CONNECTOR W/ O-rings

6

7104912

TUBE

7

7104911

TUBE

8

7104913

HOSE

9

VALVE select - not in kit

10

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 13

11

84G3712

BOLT 5

12

86F5

NUT

13

79K6

O RING 10

14

6903139

INSTRUCTIONS
