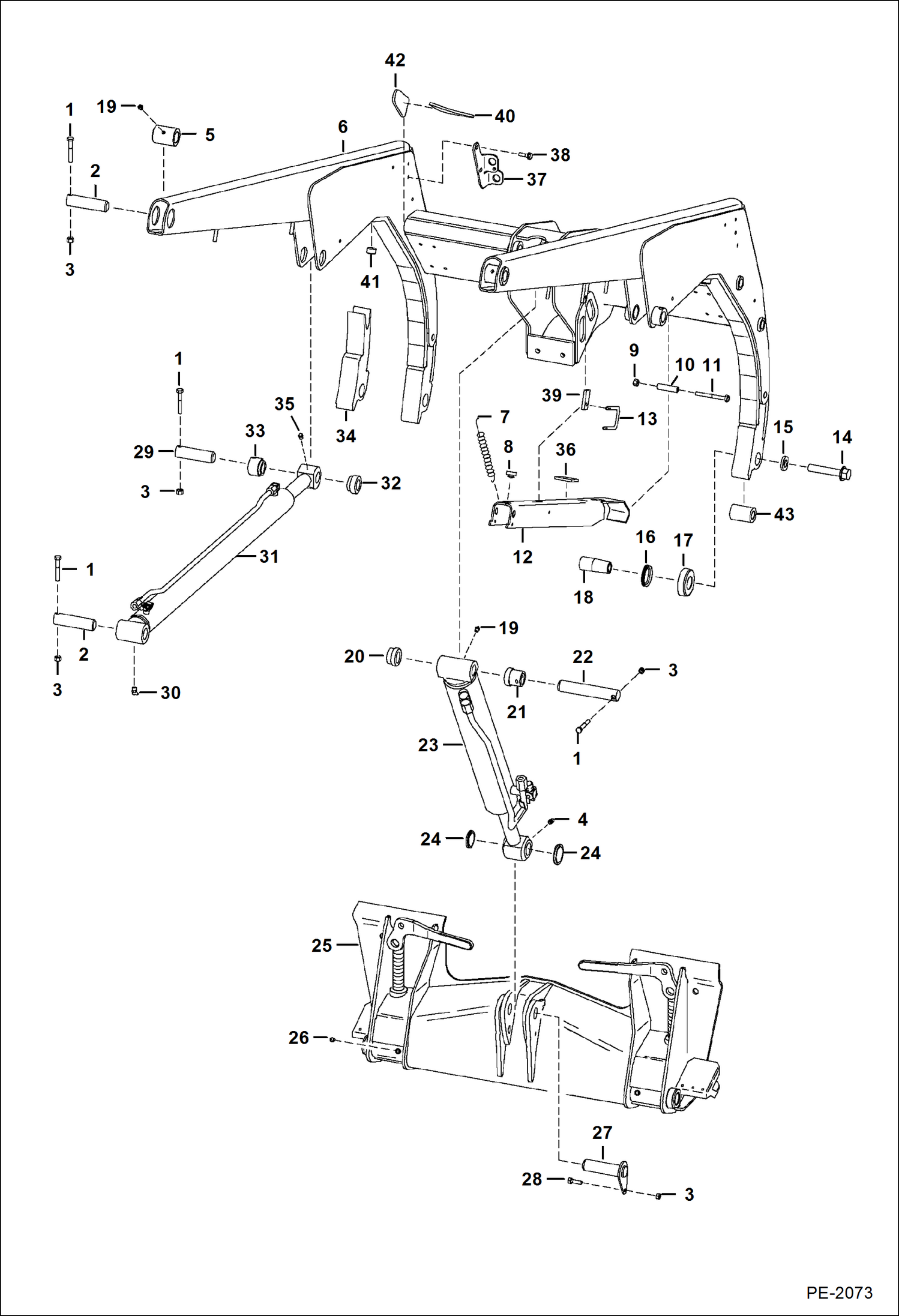

Запчасти Bobcat S-Series LIFT ARM & BOB-TACH MAIN FRAME

1

17C640

BOLT 5

2

6577954

PIN, PIVOT 1.25'' x 4.65'' (31,7 mm x 118 mm)

3

85D6

NUT, 5

4

10H35

FITTING, GREASE 10

5

6578356

BUSHING Weld On

6

6730797

LIFT ARM 1.50'' (38,1 mm) dia. Bob-Tach pins

7

6700743

SPRING

8

6519178

BUMPER rubber

9

61D6

NUT 5

10

6700469

SPACER

11

17C648

BOLT 5

12

6705089

LIFT ARM STOP

13

6714810

PIN retainer

14

31C1264

BOLT

15

6718723

WASHER

16

6651709

SEAL

17

6700463

CUP, SEAL seal

18

6730263

PIN, PIVOT 1.50''(38,1 mm) dia.- Use W/Ref. 43 (7171338 bushing)

18

6732012

PIN, PIVOT 1.25'' (31,8 mm) dia - Use W/Ref. 43 (6714874 bushing)

19

10H25

FITTING, GREASE 5

20

6703363

BUSHING weld on - Also Order Ref. 22

21

6737623

BUSHING weld on - Also Order Ref. 22 - Was 6704287 - A

22

6704288

PIN, PIVOT 32 x 178 mm (1.25 x 7'')

23

CYLINDER See Illustration TILT CYLINDER/ TS1098 TILT

24

225855

SEAL, OIL 10 38 mm (1.5'') OD

25

BOB-TACH See Illustration BOB-TACH/ PE2074

26

743332

FITTING, GREASE 5

27

6716601

PIN, PIVOT

28

17C620

BOLT

29

6718789

PIN Was 6547593 - B

30

11H15

GREASE FITTING

31

CYLINDER See Illustration LIFT CYLINDER/ PE3175 LIFT

32

6555989

BUSHING Weld On

33

6555987

BUSHING weld on

34

ARM NLA - R.H. - Weld On

34

ARM NLA - L.H. - Weld On

35

12H15

FITTING, GREASE 5

36

6704436

PAD foam - self adhesive

37

6713850

MOUNT

38

84G3112

BOLT 5

39

6705091

TAB weld on

40

6727545

PLATE weld on

41

6704403

STOP weld on

42

6727544

PLATE weld on

43

6714874

BUSHING, WELD-ON weld-on - W/tapered hole - Use W/Ref. 18 (6732012 pin)

43

7171338

BUSHING, WELD-ON weld-on - W/tapered hole - 38.1 mm (1.5'') - 50,8 mm (2'') long
