Запчасти Bobcat S-Series CAB DOOR (Special Applications) ACCESSORIES & OPTIONS

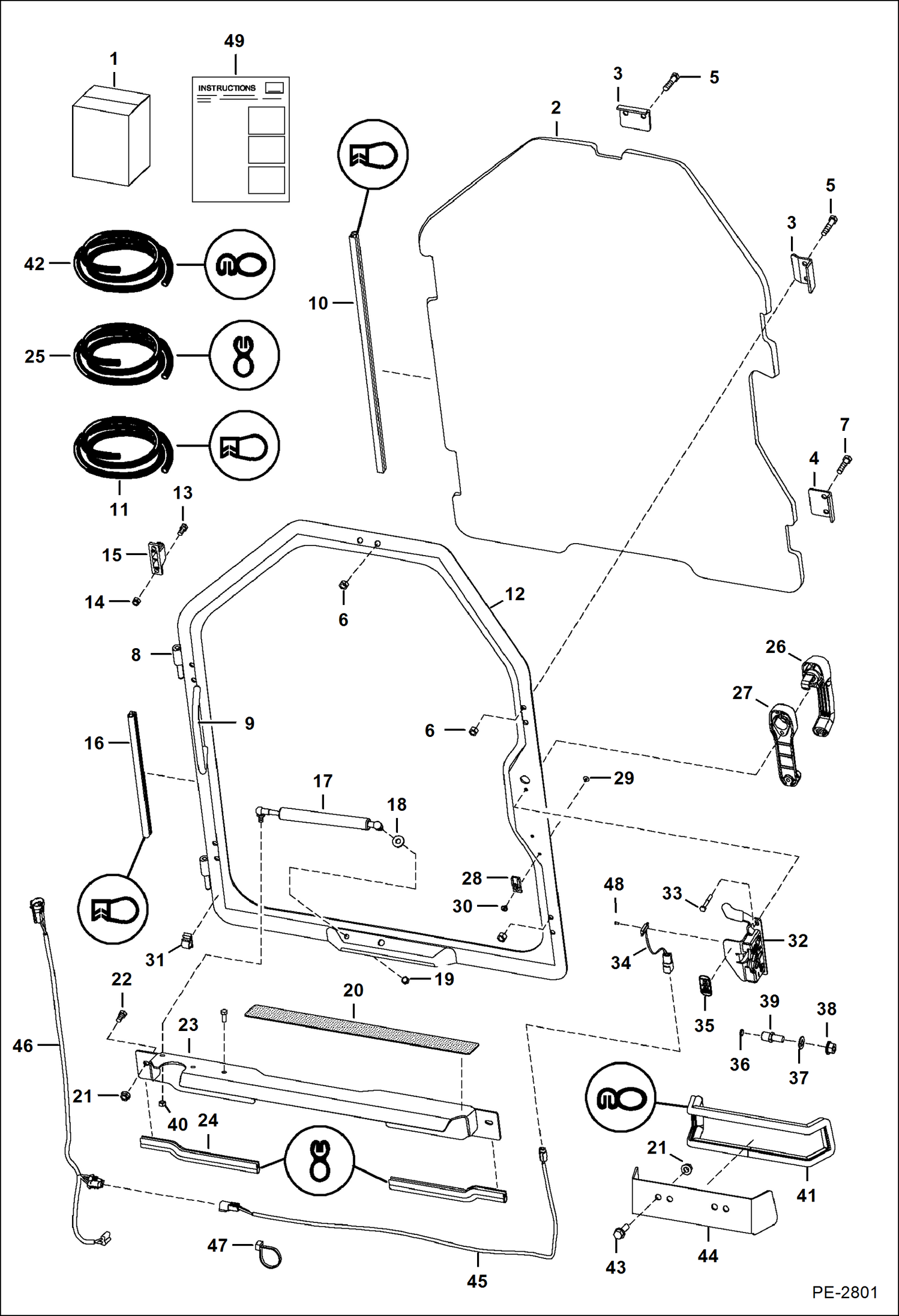

Схема запчастей Bobcat S-Series - CAB DOOR (Special Applications) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6725941

KIT door - Ref. 2-47 - wiper is not included because it may scratch special applications window

2

6732351

WINDOW 0.5'' thick polycarbonate - W/top notch

3

6725938

CLAMP

4

6725937

CLAMP

5

17C628

BOLT

6

95D6

NUT

7

17C624

BOLT 5

8

6718376

HINGE door

9

7138347

HANDLE grab - Was 6718521 - B

10

SEAL NLA - 115'' (2921 mm) long - Order Ref. 11

11

7011039

SEAL, BULK/FT 34 sold per foot - Was 6675558 - A

12

7110430

SPECIAL APPS DOOR W/Ref. 41 & 42

13

59D5

NUT 5

14

17C512

BOLT 5

15

6717593

HINGE base

16

SEAL NLA - 127'' (3233 mm) long- Order Ref. 11

17

7157893

GAS SPRING Was 6682586 - A

17

6678548

SOCKET ball

17

6649244

BALL STUD

17

6649245

RETAINER spring

18

25E16

WSHR

19

46D5

NUT acorn

20

6542731

SAFETY TREAD

21

17C612

BOLT 5

22

55D6

NUT

23

6725042

SHIELD

24

SEAL NLA - 11'' (279 mm) long - Order Ref. 25

25

6513152

SEAL bulk - sold per foot

26

7109662

HANDLE, LATCH DOOR

26

KEY NLA - ignition & rear door - includes two keys W/ring - Order 6693241 key - Was 6709527 - A

26

6693241

KEY 10 ignition - single key W/O ring

27

7109663

SPACER

28

6665000

CLIP

29

6665321

RIVET male - plastic

30

6665322

RIVET female - plastic

31

6675378

CLIP wire - W/adhesive back - Use W/doors W/O welded-on retainers

31

6624289

STRAP, TIE Use W/doors W/welded-on retainers

32

7109661

LATCH, DOOR W/SENSOR W/Ref. 34

33

1CM640

SCREW

34

6728459

SENSOR, DOOR Also Order (2) of Ref. 48

35

DECAL, SAFETY NLA - door sensor - Was 7110316 - A

36

6677192

SENSOR, MAGNETIC

37

18EM1224

WASHER

38

51DM12

NUT 12 mm thread

39

7109664

BOLT striker - 12 mm thread

40

59D5

NUT 5 Was 61D5 - B

41

SEAL NLA - 40'' (1016 mm) long - Order Ref. 42

42

6555351

SEAL bulk - sold per foot

43

35C620

BOLT 5

44

6725200

PLATE

45

7104465

DOOR SWITCH HARNESS door sensor

46

7117322

HARNESS, WIPER wiper

47

6624289

STRAP, TIE

47

6624289

STRAP, TIE Use W/doors W/welded-on retainers

48

6677193

RIVET

49

6901013

INSTRUCTIONS

Выбрано товаров: 56
