Запчасти Bobcat S-Series CAB DOOR ACCESSORIES & OPTIONS

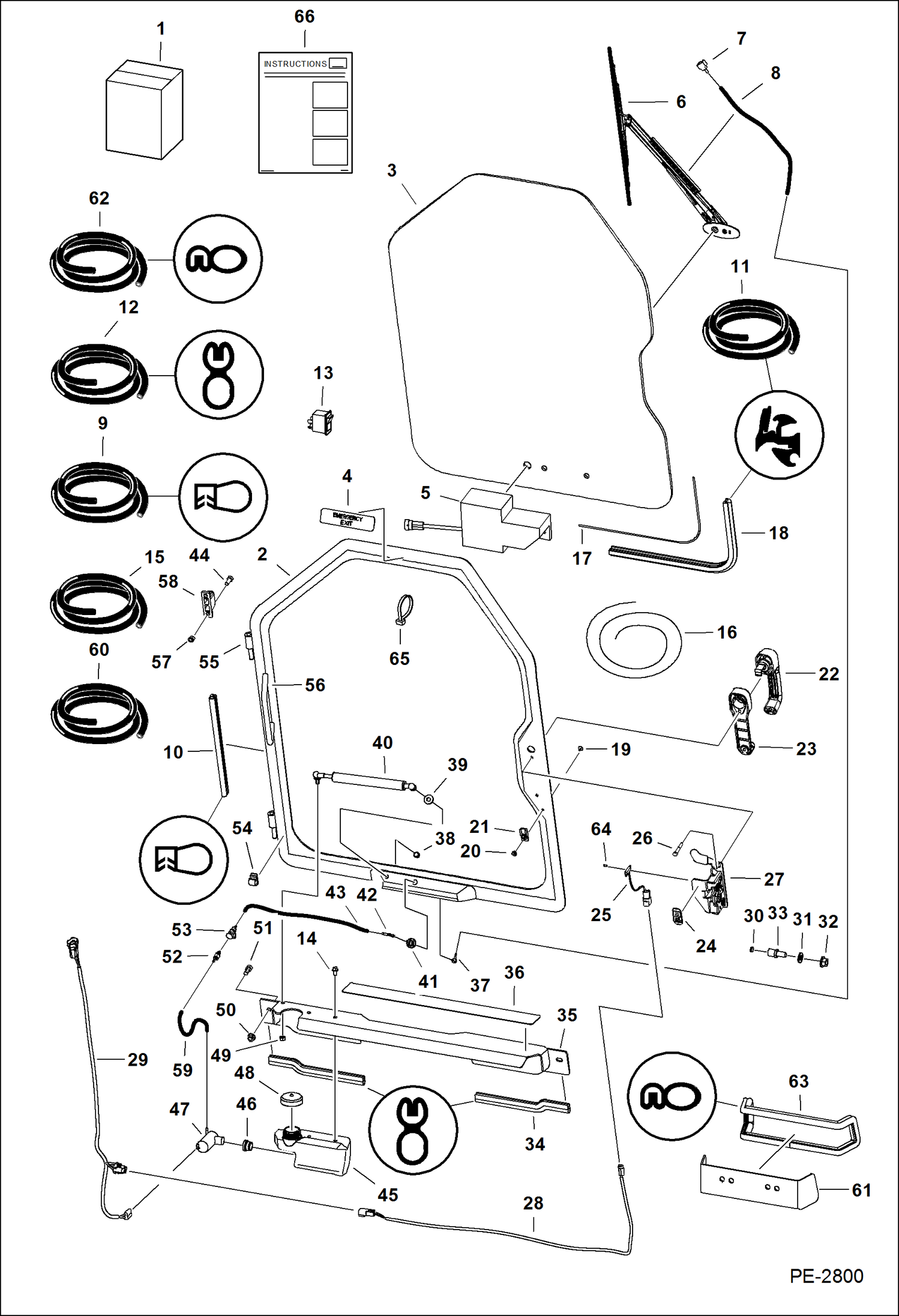

Схема запчастей Bobcat S-Series - CAB DOOR ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6718808

KIT See Illustration CAB DOOR/ MS1355 door - Ref. 2-65 & Ref. 1-21 on ILL. MS1355

1

KIT, DOOR SINGLE TILT Ref. 2-66 & Ref. 1-21 on ILL. MS1355 - ASIA ONLY - Order ASIA SALES # 7149957

2

7109665

FRAME, DOOR CAB W/Ref. 55 & 56 - Also Order Ref. 4

3

WINDOW See Illustration CAB DOOR/ MS1355 - .25'' thick glass

3

WINDOW See Illustration CAB DOOR/ MS1355 WUXI ONLY

4

6707852

DECAL, EXIT emergency

5

MOTOR See Illustration CAB DOOR/ MS1355 - wiper

6

ARM See Illustration CAB DOOR/ MS1355 - wiper

7

NOZZLE See Illustration CAB DOOR/ MS1355 - wiper arm mounted

8

HOSE See Illustration CAB DOOR/ MS1355

9

7011039

SEAL, BULK/FT 34 sold per foot - Was 6675558 - A

10

SEAL NLA - 127.3'' (3233 mm) - Order Ref. 9

11

6665568

EXTRUSION bulk - sold per foot

12

6513152

SEAL bulk - sold per foot

13

6665707

SWITCH front wiper

14

35C408

BOLT

15

6676003

HOSE, BULK/FT black - 0.109'' ID - sold per foor

16

6554149

CORD, BULK/FT bulk - sold per foot

17

CORD NLA - window - 113.3'' (2878 mm) - Order Ref. 16 - Also Order 65

18

SEAL NLA - window - 113.3'' (2878 mm) - Order Ref. 11

19

6665321

RIVET male plastic

20

6665322

RIVET female plastic

21

6665000

CLIP

22

7109662

HANDLE, LATCH DOOR

22

KEY NLA - ignition & rear door - includes two keys W/ring - Order 6693241 - Was 6709527 - A

22

6693241

KEY 10 ignition - single key W/O ring

23

7109663

SPACER

24

DECAL, SAFETY NLA - door sensor - Was 7110316 - A

25

6728459

SENSOR, DOOR Also Order (2) of Ref. 64

26

1CM640

SCREW

27

7109661

LATCH, DOOR W/SENSOR W/Ref. 25

28

7104465

DOOR SWITCH HARNESS door sensor

29

7117322

HARNESS, WIPER wiper

29

7106277

WIPER HARNESS WUXI ONLY

30

6677192

SENSOR, MAGNETIC

31

18EM1224

WASHER

32

51DM12

NUT 12 mm thread

33

7109664

BOLT striker - 12 mm thread

34

SEAL NLA - threshold - 11'' (279 mm) - Order Ref. 12

35

6725042

SHIELD

36

6542731

SAFETY TREAD

37

6676500

ELBOW

38

46D5

NUT acorn

39

25E16

WSHR

40

7157893

GAS SPRING Was 6682586 - A

40

6678548

SOCKET ball

40

6649244

BALL STUD

40

6649245

RETAINER spring

41

6676499

GROMMET wiper

42

6676917

ELBOW

43

HOSE NLA - 20.25'' (514,4 mm) long - Order Ref. 15

44

17C512

BOLT 5

45

7133211

TANK, WASHER Was 6736875 - A

46

6666766

GROMMET

47

6664554

PUMP, WIPER WASHER

48

6674993

CAP vented

49

61D5

NUT

50

61D6

NUT 5

51

17C612

BOLT 5

52

6675299

COUPLER insert

53

6675298

COUPLER, BODY body

54

6675378

CLIP wire - W/adhesive back - Use W/doors W/O welded-on retainers

55

6718376

HINGE door

56

7138347

HANDLE grab - Was 6718521 - B

57

59D5

NUT 5

58

6717593

HINGE base

59

HOSE NLA - washer - 4.25'' (108 mm) long - Order Ref. 60

60

6708310

HOSE, BULK/FT 100 clear - 0.154'' ID - sold per foot

61

6725200

PLATE

62

6555351

SEAL bulk - sold per foot

63

SEAL NLA - 40'' (1016 mm) long - Order Ref. 62

64

6677193

RIVET plastic

65

6610510

TIE cord removal

65

6624289

STRAP, TIE Use W/doors W/welded-on retainers

66

6900854

INSTRUCTIONS

Выбрано товаров: 75
