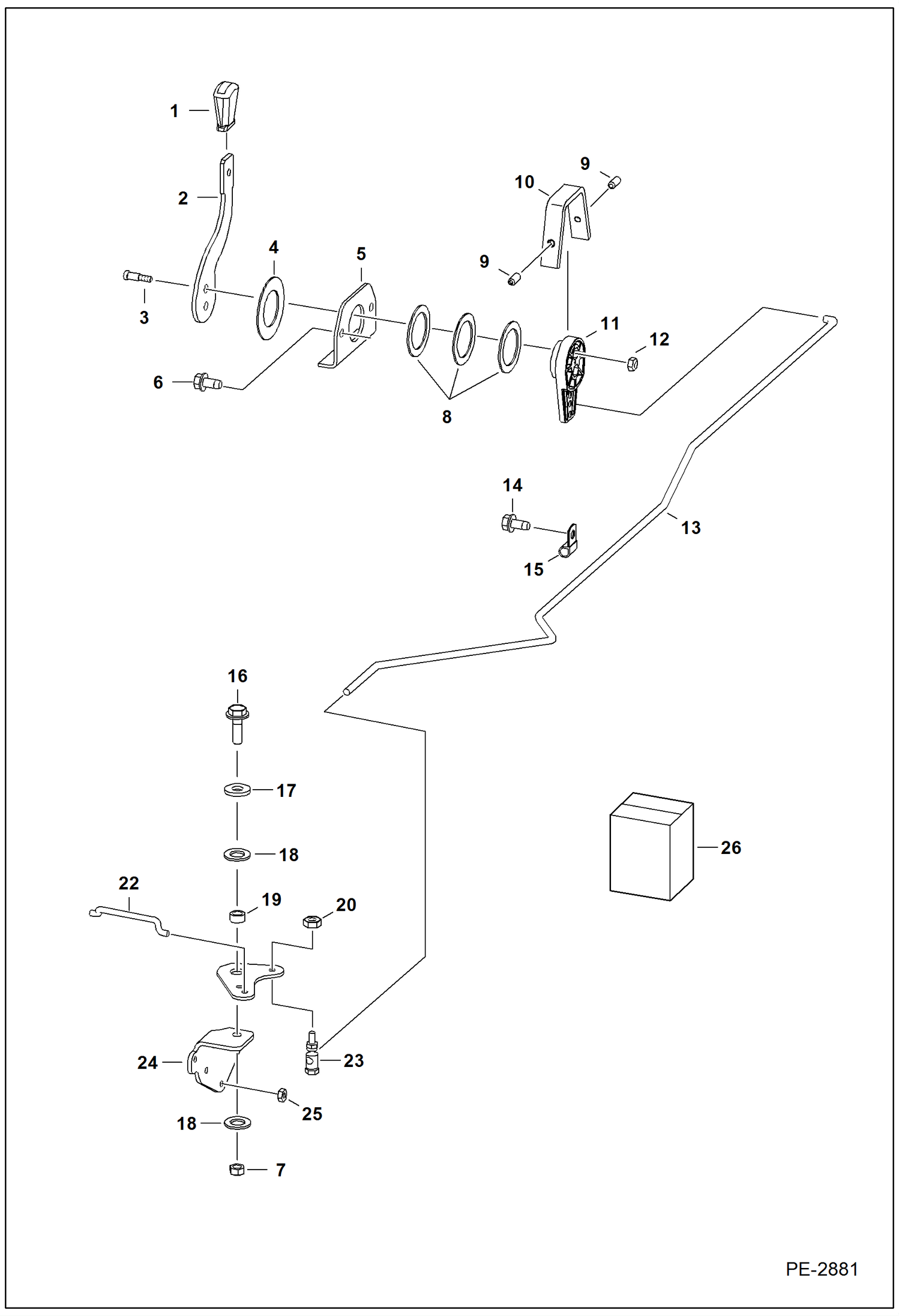

Запчасти Bobcat S-Series ENGINE SPEED CONTROL (Manual Controls) POWER UNIT

1

6705452

LEVER

2

6564452

GRIP

3

38C610

BOLT shoulder

4

6567962

WASHER

5

6576262

MOUNT

6

84G3728

BOLT Was 84G3724 - B

7

95D6

NUT

8

6630945

WASHER

9

6706572

SET SCREW

10

6576261

COVER Was 6734520 - A

11

6734416

LEVER

12

85D5

NUT 5

13

7114667

ROD throttle

14

84G3712

BOLT 5

15

31H12

CLIP

16

84G3716

SCREW 5

16

17C716

BOLT

17

25E18

WASHER

18

6700170

WASHER plastic

19

6564343

SPACER

20

59D4

NUT 5

21

6578268

BELLCRANK

22

6736195

ROD

23

6557291

BALL JOINT

24

7109314

MOUNT

25

1DM6

NUT Was 4DM6 - A
