1
85D8
NUT, 5
2

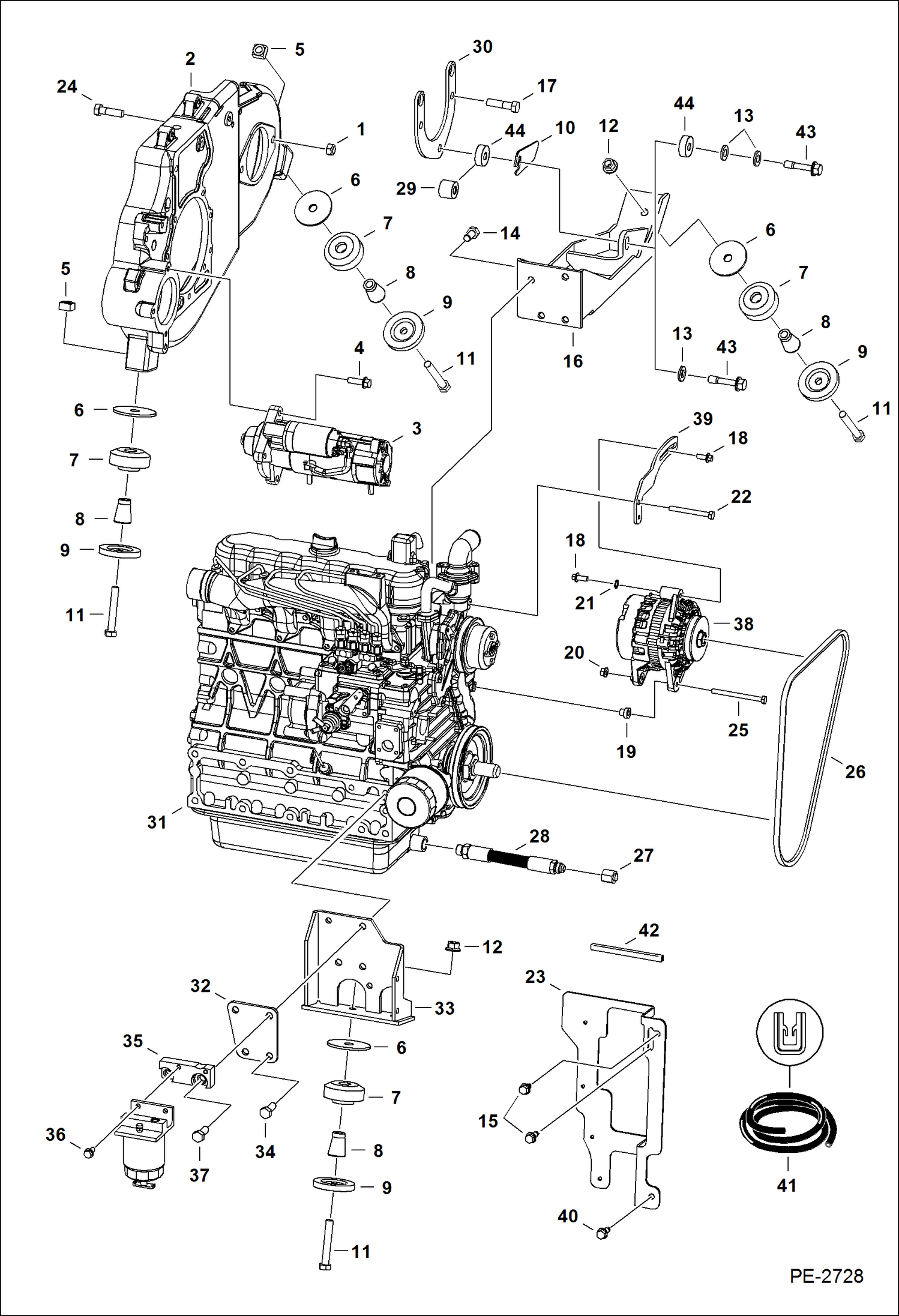

MOUNT See Illustration ENGINE & ATTACHING PARTS/ PE2981
3
STARTER See Illustration STARTER/ B16488R
4
35C620
BOLT 5
6
6705106
WASHER
7
6661785
MOUNT, ENG
8
7110276
SPACER, TAPERED Was 6715287 - A
9
6661787
WASHER
10
7114739
SPACER
11
43C852
BOLT
12
83D8
NUT 5
13
25E21
WASHER 5 for manual controls
13
25E21
WASHER 5 for selectable joystick controls
14
6719827
BOLT
15
84G3712
BOLT 5
16
7104568
MOUNT engine & hyd. pump - for horizontal hardware mounting of hydrostatic pump
17
7131273
SCREW hyd pump mount - selectable joystick controls - Was 59CM1240 - A
18
29CM820
SCREW
19
6817566
BUSHING
20
53DM8
NUT
21
6E5
WASHER
22
1CM890
BOLT
23
6731060
SHIELD bolts to upright
24
17C828
BOLT hyd pump mount
25
1CM8100
SCREW
26
7100104
BELT, ALT Was 7100572 - A
27
36K6
CAP
28
6563445
HOSE
28
79K8
O RING 10 flat boss face
29
ADAPTER NLA - 1.00'' (25,4 mm) thick x 1.50'' (38,1 mm) OD - manual controls - Order 7113010 spacer - Was 7113010 - D
29
7113010
SPACER 25,4 x 32 mm (1 x 1.25'') OD - manual controls
30
7107849
MOUNT pump - selectable joystick controls
31
ENGINE See Illustration ENGINE & GASKET KITS/ NA1529
32
6700535
SPACER
33
6703981
MOUNT W/Ref. 32
34
6719828
BOLT
35
6736817
MOUNT fuel filter
36
6719826
BOLT
37
6719829
BOLT
38
ALTERNATOR See Illustration ALTERNATOR/ C3529 90 AMP.
39
6730867
BRACKET
40
84G3716
SCREW 5
41
6654139
MOULDING bulk - sold per foot
42
MOULDING NLA - 5.5'' (139,7 mm) long - Order Ref. 41
43
6675221
BOLT hyd. pump mount
44
BUSHING NLA - spacer - .50'' (12,7 mm) thick x 1.50'' (38,1 mm) OD - Order 6716408 bushing - selectable joystick controls - Was 7104608 - D
44
6716408
SPACER 10 x 32 mm (0.40 x 1.25'') OD - selectable joystick controls - Was 7104608 - B,D
