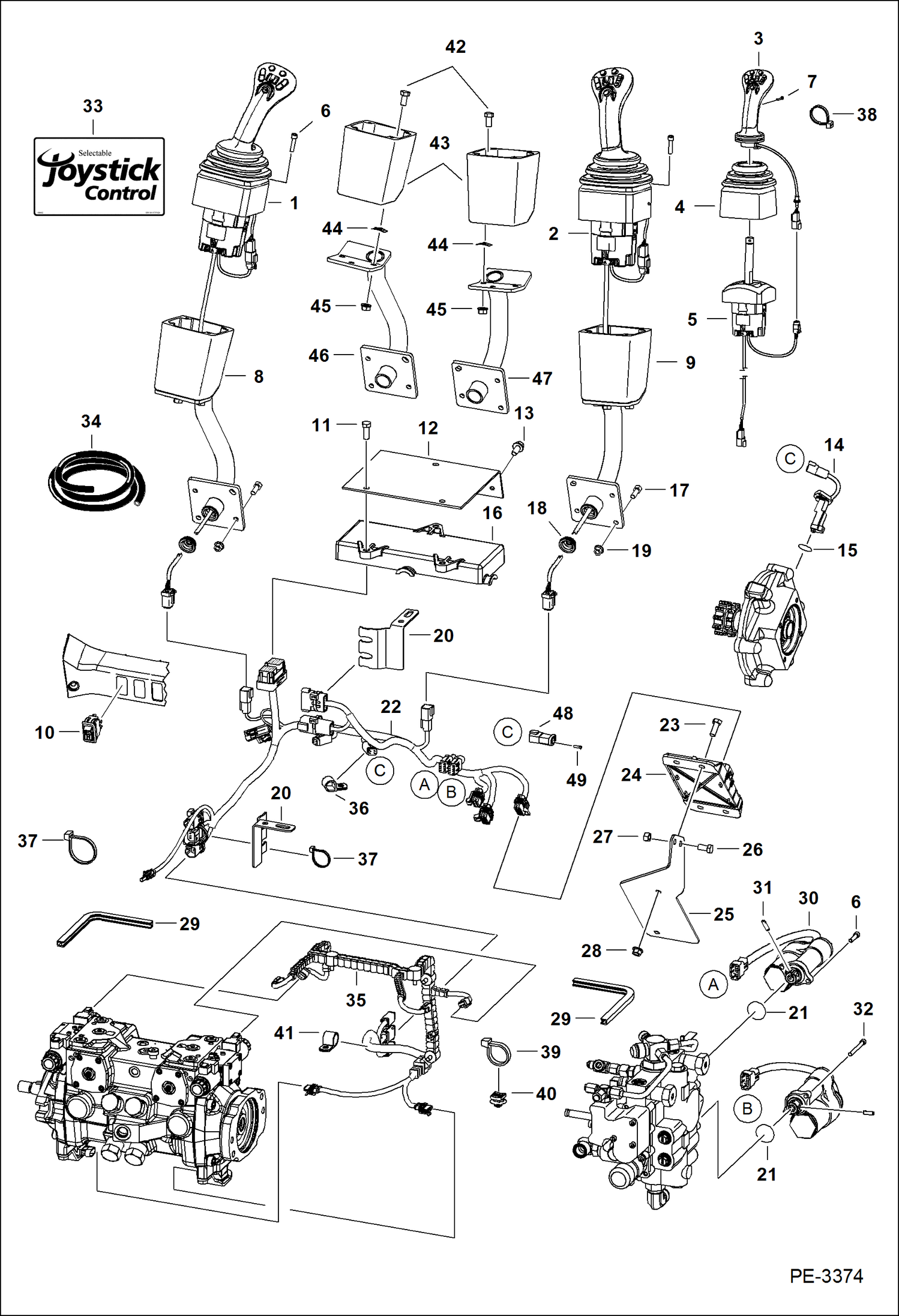

Запчасти Bobcat S-Series CONTROLS ELECTRICAL (Selectable Joystick Controls) (EMEA) (S/N A1Z760001 & Above, A8KA60001 & Above) ELECTRICAL SYSTEM

1

6697904

JOYSTICK, LH Ref. 3-7

2

6697905

JOYSTICK, RH Ref. 3-7

3

6689922

HANDLE LH

3

6689923

HANDLE RH

4

6689926

BOOT

5

6697939

BASE, JOYSTICK RH

5

6697938

BASE, JOYSTICK LH

6

29G416

BOLT

7

6689927

BOLT

8

HANDLE NLA - LH - Order Ref. 18 & 42-46 - A

9

HANDLE NLA - RH - Order Ref. 18, 42-45 & 47 - A

10

6683812

SWITCH

11

43C616

BOLT

12

7115214

BRACKET

13

84G3712

BOLT 5

14

SENSOR, SPEED TRAVEL See BTI419 - NLA - Was 6677181 - A

15

25K20100

O RING 10

16

6679485

CONTROLLER SJC drive - W/single 50-pin connector

17

35C512

BOLT

18

6684294

GROMMET

19

97D5

NUT

20

7122359

BRACKET

21

58K120

O-RING Use W/Ref. 30

22

HARNESS See BTI419 - NLA - W/Speed sensor connectors - Was 7159454 - A

22

7214133

HARNESS, SJC W/O speed sensor connectors

23

17C616

BOLT 5

24

6680410

CONTROLLER plastic - W/ 3-connector plug

25

6727580

MOUNT

26

17C612

BOLT 5

27

61D6

NUT 5

28

97D6

NUT 10

29

MOULDING NLA - 267 mm (10.5'') long - Order Ref. 43

30

7101672

ACTUATOR W/Ref. 21

31

7108236

PIN

32

69G436

BOLT

33

6737248

DECAL, WARNING selectable joystick control

34

6654139

MOULDING bulk - sold per foot

35

7188448

HARNESS, PUMP Use W/hydrostatic pump Model R902136745 - W/ 3-pin triangle connectors - Was 7169309 - A

35

6664969

CONNECTOR 8-pin

35

6664185

CONNECTOR 2-pin

35

6687268

FEMALE CONNECTOR 3-pin oval

35

6691421

FEMALE CONNECTOR grey - 4-pin rectangular

35

6662248

4 PIN PLUG black

36

30H46

CLIP

37

6624289

STRAP, TIE

38

6691589

100 TIE packaged as 100 pieces

39

6690690

STRAP, TIE

40

6690688

TREE MOUNT

41

30H42

CLAMP

42

17C612

BOLT 5

43

7124929

BASE

44

6684033

NUT retaining

45

97D6

NUT 10

46

7123817

MOUNT LH

47

7123816

MOUNT RH

48

6691419

CONNECTOR, ELECTRICAL

49

6665370

PLUG
