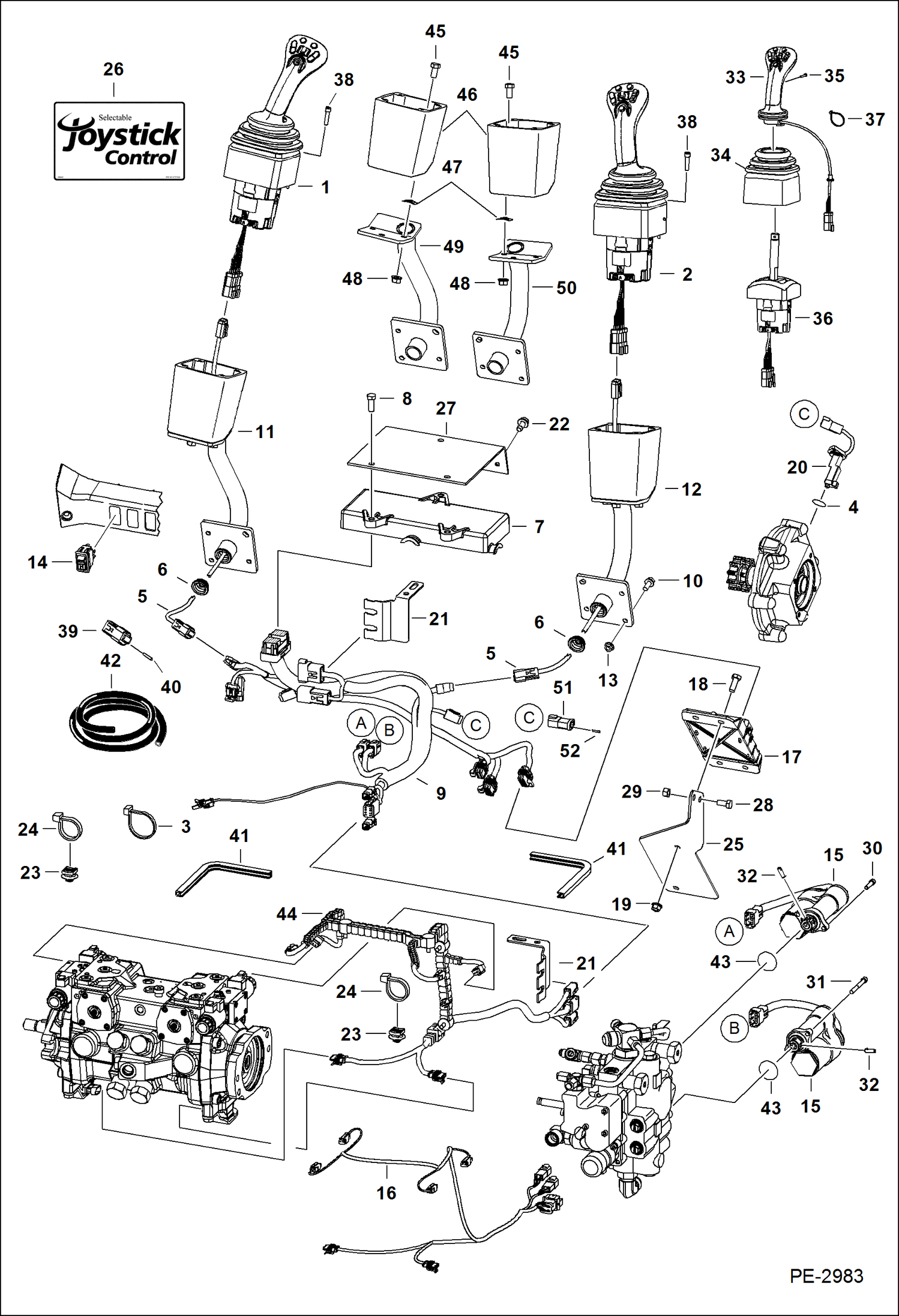

Запчасти Bobcat S-Series CONTROLS ELECTRICAL (Selectable Joystick Controls) (S/N 529211001 & Above, A14W11001 & Above, 529611001 & Above, A1Z711001 - 59999, A8KA11001 - 59999) ELECTRICAL SYSTEM

1

JOYSTICK, LH NLA - Order 6697904 joystick, LH & 7152616 harness, adapter - Was 6689920 - A

2

JOYSTICK, RH NLA - Order 6697905 joystick, RH & 7152616 harness, adapter - Was 6689921 - A

3

6624289

STRAP, TIE

4

25K20100

O RING 10

5

7112828

HARNESS

6

6684294

GROMMET

7

6679485

CONTROLLER SJC drive - W/single 50-pin connector

8

43C616

BOLT

9

HARNESS, SJC See BTI419 - NLA - W/Speed sensor connectors - Was 7122358 - A

9

7122358

HARNESS W/O speed sensor connectors

9

HARNESS, SJC See BTI419 - NLA - W/Speed sensor connectors - Was 7136041 - A

9

7136041

HARNESS W/O speed sensor connectors

10

35C512

BOLT

11

HANDLE NLA - LH - Order Ref. 6 & 45-49 - A

12

HANDLE NLA - RH - Order Ref. 6, 45-48 & 50 - A

13

97D5

NUT

14

6683812

SWITCH H/ISO

15

7101672

ACTUATOR W/Ref. 43

16

7131601

HARNESS, PUMP Use W/hydrostatic pump Model R902095064

16

7178411

HARNESS, ADAPTER Use W/hydrostatic pump Model R902136745

17

6680410

CONTROLLER plastic - W/ 3-connector plug

18

17C616

BOLT 5

19

97D6

NUT 10

20

SENSOR, SPEED TRAVEL See BTI419 - NLA - Was 6677181 - A

21

7122359

BRACKET Was 7124124 - A

22

84G3712

BOLT 5

23

6690688

TREE MOUNT

24

6690690

STRAP, TIE

25

6727580

MOUNT controller

26

6737248

DECAL, WARNING selectable joystick control

27

7115214

BRACKET

28

17C612

BOLT 5

29

61D6

NUT 5

30

29G416

BOLT

31

69G436

BOLT

32

7108236

PIN

33

6689922

HANDLE LH

33

6689923

HANDLE RH

34

6689926

BOOT

35

6689927

BOLT

36

6689924

BASE, JOYSTICK RH

36

6689925

BASE, JOYSTICK LH

37

6691589

100 TIE packaged as 100 pieces

38

29G416

BOLT

39

6662246

CONNECTOR

40

6665370

PLUG

41

MOULDING NLA - 10.5'' (267 mm) long - Order Ref. 43

42

6654139

MOULDING bulk - sold per foot

43

58K120

O-RING Use W/Ref. 15

44

7198706

HARNESS, PUMP Use W/hydrostatic pump Model R902095064 - W/ 3-pin oval connectors - Was 7139761 - A

44

7178411

HARNESS, ADAPTER Use W/hydrostatic pump Model R902136745

44

7188448

HARNESS, PUMP Use W/hydrostatic pump Model R902136745 - W/ 3-pin triangle connectors - Was 7169309 - A

44

6664969

CONNECTOR 8-pin

44

6687268

FEMALE CONNECTOR 3-pin oval - Use W/Ref. 44 (7198706 harness)

44

6664801

CONNECTOR 3-pin triangle - Use W/Ref. 44 (7188448 harness)

44

6691421

FEMALE CONNECTOR grey - 4-pin rectangular

44

6664185

CONNECTOR 2-pin

44

6662248

4 PIN PLUG black

45

17C612

BOLT 5

46

7124929

BASE

47

6684033

NUT retaining

48

97D6

NUT 10

49

7123817

MOUNT LH

50

7123816

MOUNT RH

51

6691419

CONNECTOR, ELECTRICAL

52

6665370

PLUG
